HANDLE

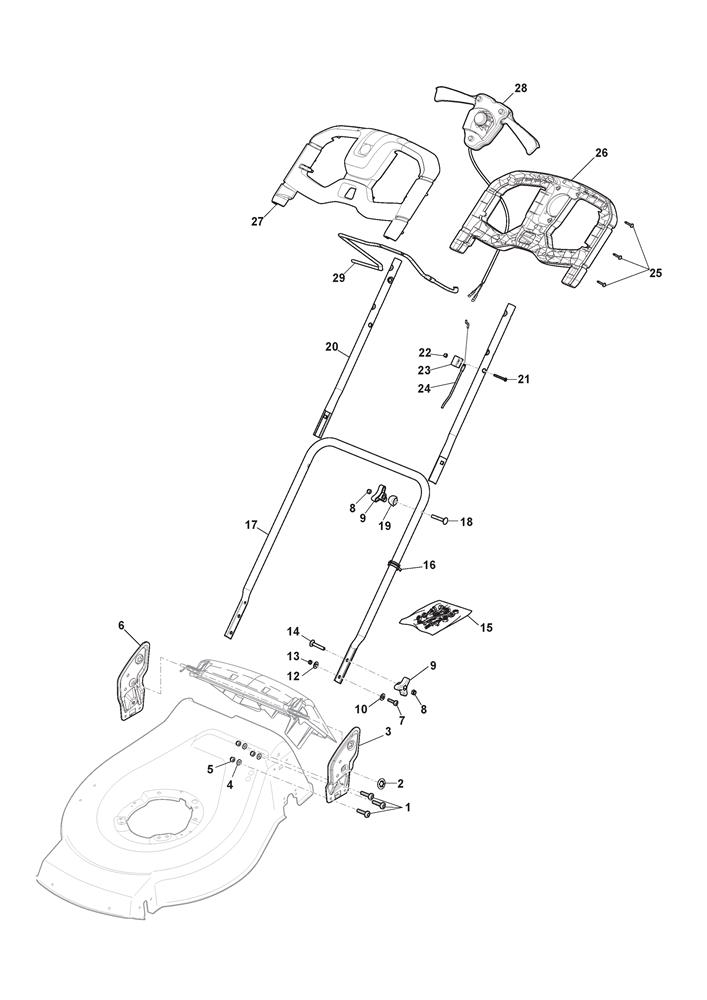

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112727803/0SCREW TCB TORX M6 x 14£2.06 Add to
002112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
003381005135/0LEFT HANDLE BRACKET£7.10 Add to
004112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
005112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
006381005133/0RIGHT HANDLE BRACKET£7.10 Add to
007112760605/0SCREW TBEI M8 X 20MM£2.53 Add to
008112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
009122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
010112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
012112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
014112818900/0SCREW TTDQ M8 x 35£1.97 Add to
015381008730/0SCREW ASSEMBLY KIT£8.73 Add to
016122192000/1CABLE CLAMP£1.91 Add to
018112819110/0CARRIAGE BOLT M8 x 50£2.02 Add to
019122671651/0WASHER 8.3 x 22 x 2£2.32 Add to
020381007584/0UPPER HANDLE [BLACK]£16.78 Add to
021112727783/0CROSS-HEAD SCREW M6 x 40£2.06 Add to
022112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
023322551685/0CABLE HOLDER BLOCK£7.52 Add to
024381030125/0CLUTCH DRIVE CABLE£22.61 Add to
025112728711/0SELF-TAPPING EJOT PT TORX WN1451 K40X18£1.79 Add to
026322291079/0LOWER HALF HANDGRIP SWITCH£18.95 Add to
027322291078/0UPPER HALF HANDGRIP SWITCH£19.09 Add to
028381600558/0OPC SWITCH ASSEMBLY 48-80V [GREY]£42.53 Add to
029181003439/0DRIVE LEVER HANDLE WBH BATTERY BLACK£27.27 Add to
