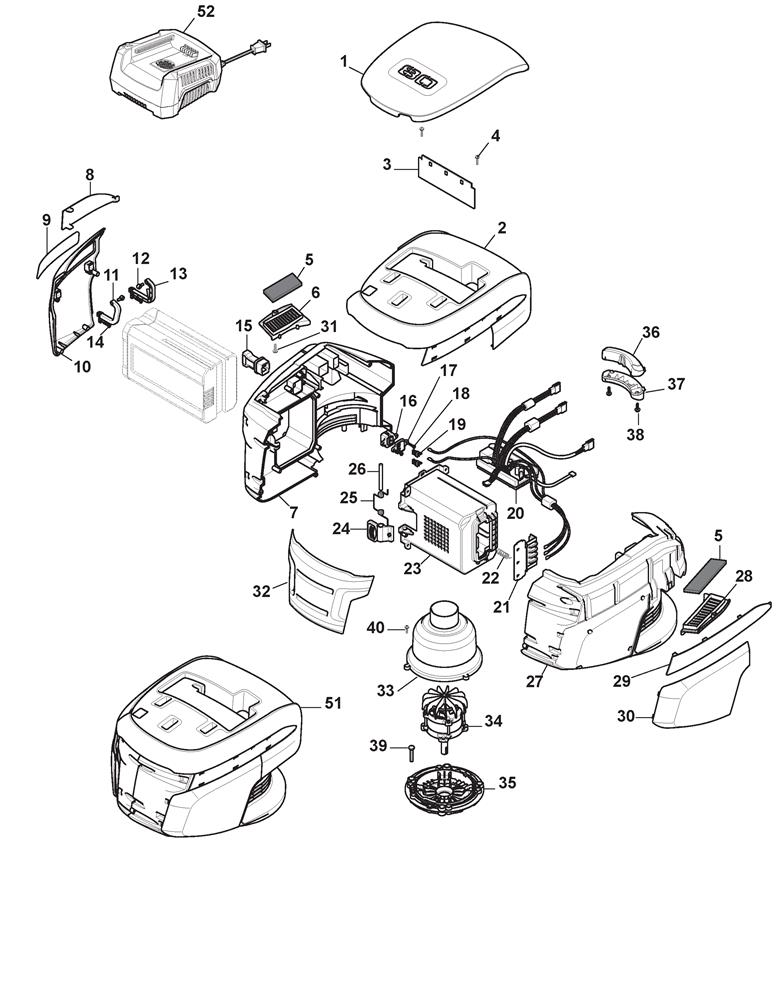

BATTERY MOTOR ASSY

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322109969/0A80V TOP COVER£34.68 Add to
002322109962/1TOP HOUSING [BLACK]£28.90 Add to
003118206007/1LIGHT BOARD POWERHEAD 80V£46.73 Add to
004112728099/1SELF-TAPPING SCREW 4.2 x 16£2.06 Add to
005118401009/0AIR FILTER£5.06 Add to
007118810740/080V POWERHEAD HOUSING [BLACK]£73.87 Add to
008322109966/0RIGHT SIDE COVER [GREY]£3.55 Add to
009322109961/0TRANSPARENT COVER£5.87 Add to
010322109963/0BATTERY COVER [BLACK]£11.73 Add to
011322109971/0RIGHT ARM LEVER£5.05 Add to
012322524357/0FULCRUM PIN£2.06 Add to
013322109972/0LEFT ARM LEVER£5.05 Add to
014112728099/1SELF-TAPPING SCREW 4.2 x 16£2.06 Add to
0151111-9273-01BATTERY SAFETY KEY FOR 80V£14.10 Add to
017322109975/0KEY HOLDER COVER£4.91 Add to
018112728099/1SELF-TAPPING SCREW 4.2 x 16£2.06 Add to
021118810277/0BATTERY CLAMP£5.73 Add to
022118810276/0SPRING£1.79 Add to
023322109970/0BATTERY BOX£16.50 Add to
025118810275/0SPRING£3.41 Add to
027118810740/080V POWERHEAD HOUSING [BLACK]£73.87 Add to
028322109974/0LEFT INLET BOARD£4.10 Add to
029322109967/0LEFT SIDE COVER [GREY]£3.55 Add to
030322109964/0LEFT SIDE COVER [BLACK]£11.18 Add to
031112728099/1SELF-TAPPING SCREW 4.2 x 16£2.06 Add to
032322109965/0FRONT COVER [GREY]£7.63 Add to
036322722834/0UPPER CABLES GUARD£2.47 Add to
038112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
039112691100/0HEX-HEAD SCREW M8 x 35£2.81 Add to
040112728099/1SELF-TAPPING SCREW 4.2 x 16£2.06 Add to
