ELECTRIC MOTOR

Parts list

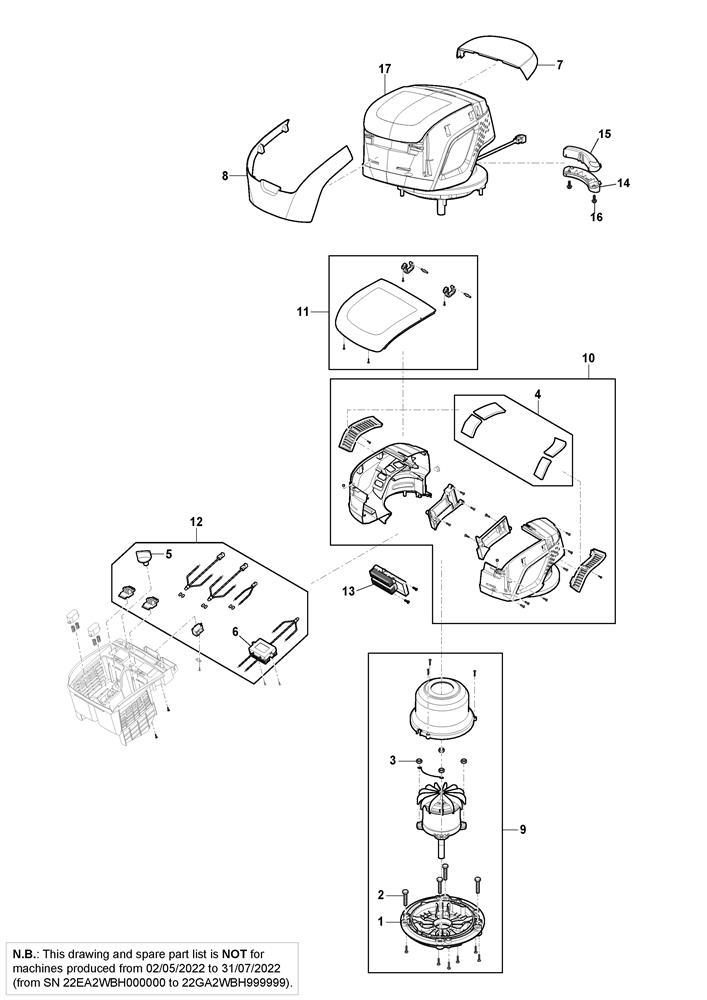

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118810872/048V MOTOR SEAT£11.17 Add to
002112793600/0HEX-HEAD SCREW M8 x 35£2.06 Add to
003112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
004118810822/0AIR FILTERS KIT [48V MOTOR]£2.66 Add to
005322076572/0SAFETY KEY POWERHEAD 48V£9.84 Add to
007322110094/0PH 500 REAR UPPER COVER - STIGA YELLOW£4.96 Add to
008322110093/0PH 500 FRONT COVER - STIGA YELLOW£5.75 Add to
009118811281/1MOTOR ASSEMBLY [PH 700 TR]£267.31 Add to
010118810821/048V POWER HEAD HOUSING KIT£78.86 Add to
011118811304/0BATTERY COVER KIT£37.09 Add to
012118811366/0DUAL POWER SUPPLY ASSEMBLY£90.25 Add to
013118811307/0CONTROL BOARD ASSEMBLY£215.45 Add to
014322722860/0LOWER PROTECTION CABLES PLUG POWERHEAD£2.47 Add to
015322722861/0UPPER PROTECTION CABLES PLUG POWERHEAD£2.18 Add to
016112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
017381270020/2POWERHEAD 48V PL 500 SERIES DUAL PUSH£376.14 Add to
