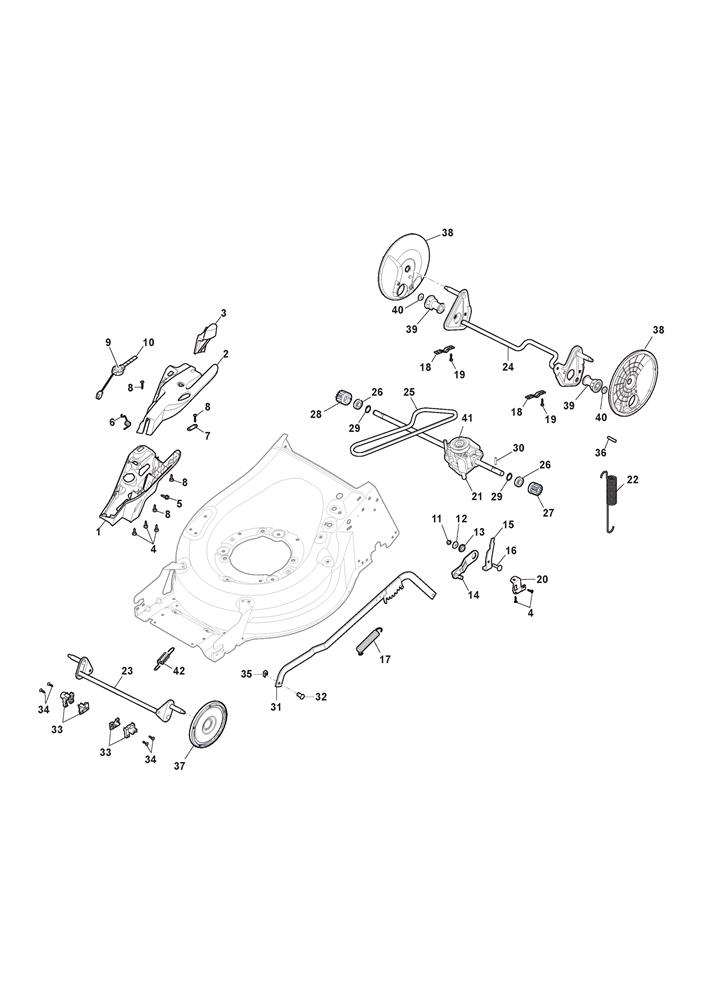

DECK AND HEIGHT ADJUSTING

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322055262/0LOWER COVER [BLACK]£7.92 Add to
002322055263/0UPPER COVER [BLACK]£7.73 Add to
003322602026/0CONTROL BUTTON [YELLOW]£3.69 Add to
004112728904/0SELF-TAPPING SCREW K60 X 22 WM1451£1.95 Add to
005125943004/0FLANGED SCREW TE 4.8£1.91 Add to
006122450477/0SPRING£1.91 Add to
007322981471/1FIX PLATE£2.06 Add to
008112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
009322602027/0LENS£2.18 Add to
010322602028/0HEIGHT ADJUST DECAL£2.06 Add to
011112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
012112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
013122517873/0BUSH£3.41 Add to
014381003475/2REAR HEIGHT ADJUST LEVER MP1 50-55£9.00 Add to
015322778475/0HEIGHT ADJUST BRACKET£3.15 Add to
016112815270/0SCREW M6 x 25£2.06 Add to
017122450480/0SPRING£2.32 Add to
018322545152/0AXLE BRACKET£2.06 Add to
019112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
020322778473/1STOP BRACKET£2.06 Add to
021181003114/0GEARBOX [BLACK]£129.74 Add to
022122450478/0SPRING£9.28 Add to
023381302881/1FRONT WHEELS AXLE D=180 MP1 50£30.78 Add to
024381302891/1REAR WHEELS AXLE D=240 MP1 50£30.66 Add to
025135063900/0TRAPEZOIDAL BELT Z28£9.96 Add to
026119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
027122570110/1RIGHT PINION Z10 GEAR(METAL)was Plastic£8.52 Add to
028122570120/1LEFT PINION Z10 GEAR(METAL)was Plastic£8.75 Add to
029112608600/0CIRCLIP D=12£2.08 Add to
030122753000/0PIN D=5.2 x 25.65£2.06 Add to
031381002047/1HEIGHT ADJUST ROD 180/240 MP1 50£49.06 Add to
032122519820/0PIN£2.47 Add to
033322785305/1AXLE SUPPORT£3.00 Add to
034112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
035112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
036112645700/0PIN£2.06 Add to
037322600247/0INNER WHEEL COVER D=180£4.66 Add to
038322600205/1INNER WHEEL COVER D=240£4.11 Add to
039322042068/0AXLE BUSH£3.00 Add to
040112521371/0WASHER M12 13 x 20 x 2£2.06 Add to
041122601909/0PULLEY£6.01 Add to
042122450481/0SPRING£3.55 Add to
