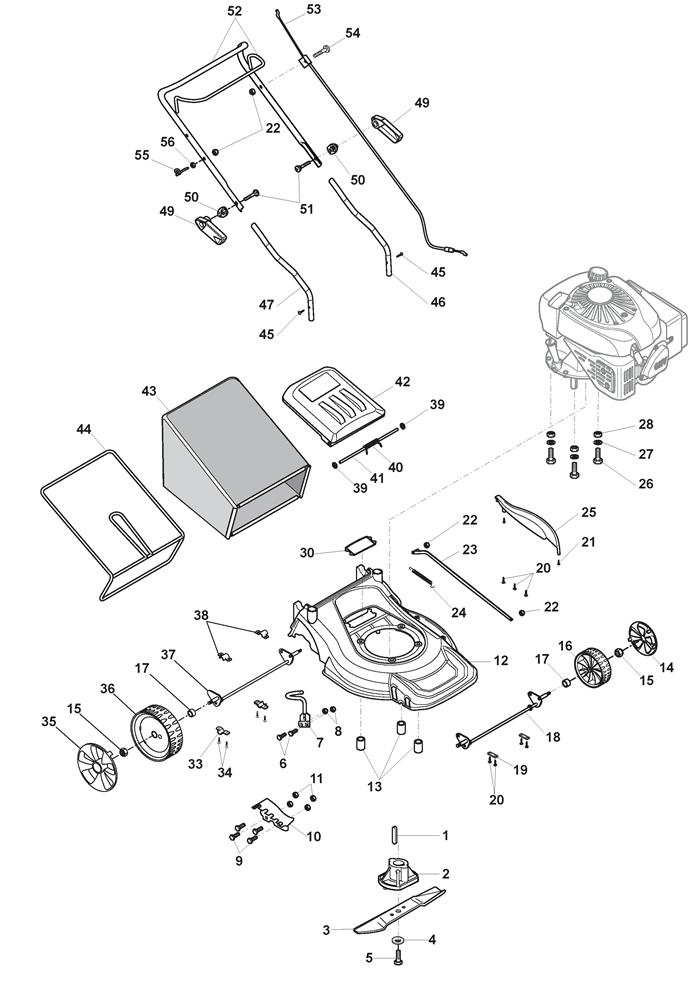

WALKBEHIND FULL ASSEMBLY

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118810028/0WOODRUFF KEY£2.06 Add to
002322465645/0BLADE BOSS£10.79 Add to
004118810055/0WAVE WASHER£3.69 Add to
005112736850/0HEX-HEAD SCREW 3/8" x 2½"£2.32 Add to
006112789000/0SCREW TE M5 x 12£2.06 Add to
007118810050/0ADJUSTING LEVER£7.78 Add to
008112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
009112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
011112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
014118810126/0FRONT HUB CAP [GREY]£2.06 Add to
015112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
016118810021/0FRONT WHEEL£6.95 Add to
017118810015/0WHEEL SHAFT BUSH£1.79 Add to
018118810046/0FRONT WHEEL AXLE£30.88 Add to
020112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
021112728099/1SELF-TAPPING SCREW 4.2 x 16£2.06 Add to
022112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
026112793801/0SCREW M8 x 45£2.47 Add to
028112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
031123878023/0TORX SCREW 4 x 12£1.79 Add to
032112290800/0HEXAGON NUT M4 UNI 5588 ACC.6S£2.06 Add to
033118810036/0BUSH£2.06 Add to
034112728685/0SELF-TAPPING SCREW D=4 x 25£4.10 Add to
035118810127/0REAR HUB CAP [GREY]£2.47 Add to
036118810020/1REAR WHEEL£10.65 Add to
037118810047/0REAR WHEEL AXLE£24.95 Add to
040118810040/0REAR COVER£24.95 Add to
043118810019/0GRASSBAG£43.89 Add to
044118810032/0GRASSBAG FRAME£32.92 Add to
045112728440/0SELF-TAPPING SCREW 4.8 X 13£1.79 Add to
046118810006/0LOWER LEFT HANDLE£8.76 Add to
047118810007/0LOWER RIGHT HANDLE£8.76 Add to
049118810034/0LOCK HANDLE LEVER [BLACK]£2.06 Add to
050118810038/0PLASTIC WASHER£2.06 Add to
053118810049/0ENGINE BRAKE CABLE£14.42 Add to
054112727799/0SCREW TCB TORX M6 x 35£2.18 Add to
056112292100/0HEXAGON NUT M6£1.47 Add to
