OPC/CLUTCH LEVERS, CONTROL CABLES, REAR ROLLER

Parts list

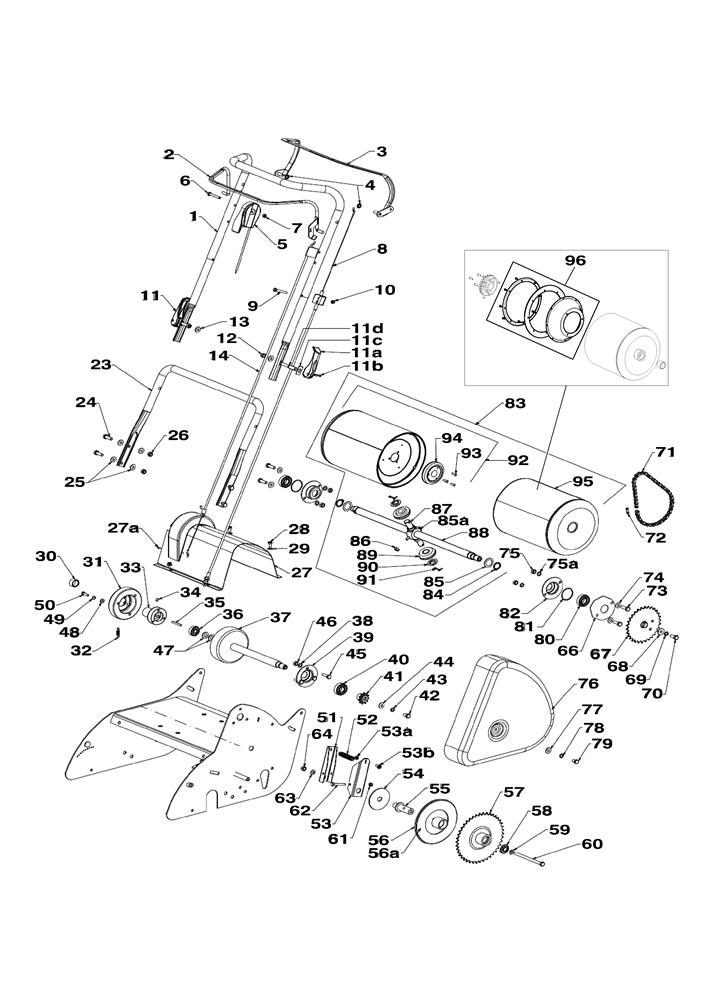

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	MAS-981740	OPC LEVER	£11.83	Add to
003	MAS-982161	CLUTCH LEVER	£16.94	Add to
004	MAS-501365	PUSH ON FIXING 5/16"	£3.60	Add to
005	MAS-583458	THROTTLE CABLE	£11.83	Add to
006	MAS-503604	SCREW M6 x 45	£3.60	Add to
008	MAS-031990	CLUTCH CABLE	£16.32	Add to
009	MAS-503558	SCREW M6 x 45	£3.60	Add to
011	MAS-980456	LOCKING LEVER ASSEMBLY	£7.16	Add to
012	MAS-501793	NYLOC NUT M8	£3.60	Add to
013	MAS-501606	FLAT WASHER 8 x 19 x 1.6	£3.60	Add to
014	MAS-031878	OPC CABLE	£14.59	Add to
023	MAS-031849	LOWER HANDLE	£19.62	Add to
024	MAS-501597	SCREW M8 x 20	£3.60	Add to
025	MAS-501606	FLAT WASHER 8 x 19 x 1.6	£3.60	Add to
026	MAS-501793	NYLOC NUT M8	£3.60	Add to
027	MAS-732111	TRANSMISSION COVER [GREEN]	£24.59	Add to
027A	MAS-503429	POP RIVET	£3.60	Add to
028	MAS-503591	SCREW M6 X 12	£2.40	Add to
029	MAS-501703	WASHER	£2.40	Add to
030	MAS-031958	SPACER 13mm	£5.29	Add to
031	MAS-732241	CLUTCH KIT [B&S]	£66.42	Add to
032	MAS-005634	CLUTCH SPRING	£4.28	Add to
033	MAS-032241	CLUTCH BOSS D=19 B&S	£42.46	Add to
034	MAS-501719	GRUB SCREW M6 x 8	£3.60	Add to
035	MAS-536178	SQUARE KEY 3/16"	£3.60	Add to
036	119216036/0	BEARING 6201-2RS	£9.96	Add to
037	MAS-032235	CLUTCH DRUM 40cm	£38.16	Add to
038	MAS-503747	WASHER	£3.60	Add to
040	119216056/0	BEARING	£21.66	Add to
041	MAS-002818	SPROCKET 11T	£24.40	Add to
042	MAS-501715	SCREW M8 x 15	£3.60	Add to
043	MAS-503747	WASHER	£3.60	Add to
044	MAS-501606	FLAT WASHER 8 x 19 x 1.6	£3.60	Add to
045	MAS-501597	SCREW M8 x 20	£3.60	Add to
045A	MAS-567292	BOLT M6 X 55	£2.76	Add to
046	MAS-501602	NUT M8	£3.60	Add to
047	MAS-006028	FLAT WASHER 12 x 22 x 3	£3.60	Add to
048	MAS-501703	WASHER	£2.40	Add to
049	MAS-500201	WASHER	£2.40	Add to
050	MAS-503223	SCREW M6 x 16	£3.60	Add to
051	MAS-031831	LEVER	£5.53	Add to
052	MAS-031845	SPRING	£4.57	Add to
053	MAS-031830	LEVER CARRIER	£7.27	Add to
053B	MAS-503591	SCREW M6 X 12	£2.40	Add to
055	MAS-031840	CLUTCH POST	£16.63	Add to
056	MAS-031986	SPROCKET	£41.70	Add to
056A	MAS-031987	CORK LINER	£9.38	Add to
057	MAS-031963	SPROCKET 42T	£40.57	Add to
058	119216035/0	BEARING 6001 2RS (12 x 28 x 8)	£3.83	Add to
059	MAS-031965	WASHER	£6.78	Add to
060	MAS-503938	BOLT M8 x 120	£3.60	Add to
062	MAS-580160	SCREW M6 x 50	£3.60	Add to
063	MAS-031842	THRUST WASHER	£3.60	Add to
064	MAS-501793	NYLOC NUT M8	£3.60	Add to
067	MAS-002604	SPROCKET	£21.35	Add to
069	MAS-503747	WASHER	£3.60	Add to
070	MAS-501717	SCREW M8 x 20	£3.60	Add to
071	MAS-004929	CHAIN 3/16 x 1/2 40P	£13.25	Add to
072	MAS-731971	CHAIN LINK 1/2	£5.14	Add to
073	MAS-501597	SCREW M8 x 20	£3.60	Add to
074	MAS-501606	FLAT WASHER 8 x 19 x 1.6	£3.60	Add to
075	MAS-501602	NUT M8	£3.60	Add to
075A	MAS-503747	WASHER	£3.60	Add to
076	MAS-032109	CHAINCASE COVER [GREEN]	£37.88	Add to
077	MAS-501606	FLAT WASHER 8 x 19 x 1.6	£3.60	Add to
078	MAS-503747	WASHER	£3.60	Add to
079	MAS-501863	SCREW M8 x 12	£3.60	Add to
080	119216056/0	BEARING	£21.66	Add to
081	MAS-004292	RING	£4.34	Add to
082	MAS-000409	BEARING HOUSING	£6.08	Add to
083	MAS-031916	REAR ROLLER ASSEMBLY-40cm	£206.54	Add to
084	MAS-007260	CIRCLIP 7/8" DIN 471	£3.60	Add to
085	MAS-002732	WASHER	£3.60	Add to
089	MAS-002708	BEVEL PINION 14T	£5.14	Add to
090	MAS-008944	COLLAR	£4.50	Add to
091	MAS-007473	SPLIT PIN 3 x 30	£4.34	Add to
093	MAS-503399	POP RIVET 4.8 x 12.7	£3.60	Add to
094	MAS-002707	BEVEL GEAR 24T	£5.36	Add to
096	MAS-002714	ROLLER SEAL KIT	£15.53	Add to
