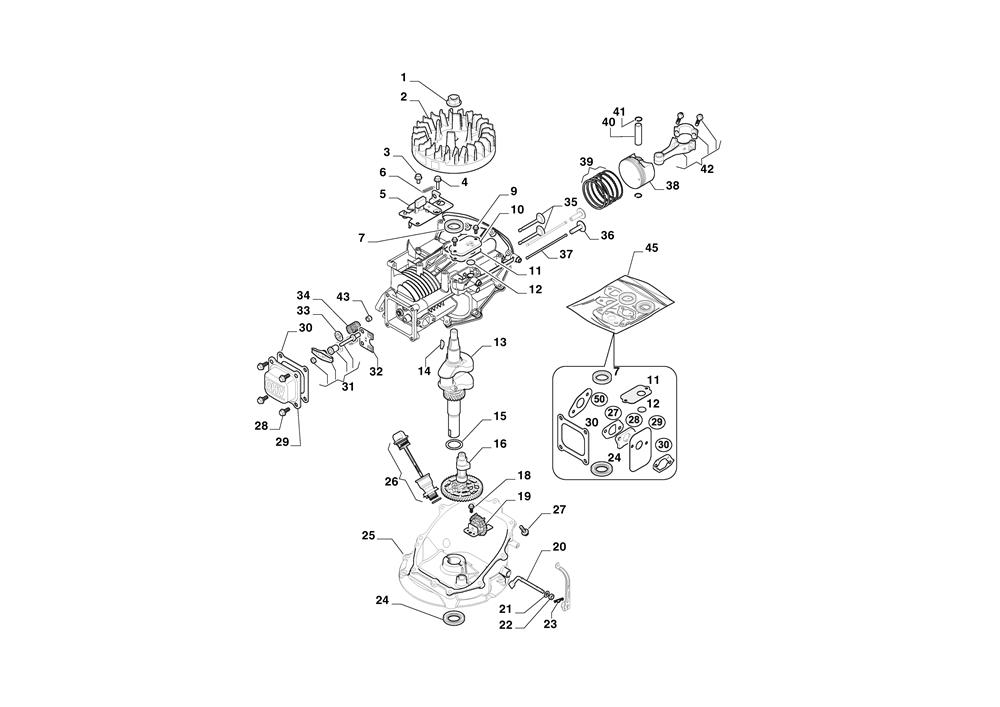

ENGINE - PISTON, CRANKSHAFT

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118550336/0NUT£6.42 Add to
002118552709/0FLYWHEEL COMPLETE£72.04 Add to
003118551277/0SCREW M6 X 14 (OBSOLETE)N/A
0049959-0620-16SCREW£2.32 Add to
005118552644/0ENGINE BRAKE£27.92 Add to
007118552705/0OIL SEAL£3.23 Add to
009112789000/0SCREW TE M5 x 12£2.06 Add to
010118550904/0BREATHER CHAMBER COVER£4.69 Add to
011118550903/0BREATHER GASKET£3.89 Add to
012118550902/0VALVE£2.06 Add to
013118552717/0CRANKSHAFT£95.72 Add to
014118550288/0WOODRUFF KEY£6.55 Add to
015118552533/0BEVEL GEAR£13.02 Add to
016118552716/0CAMSHAFT ASSY£23.66 Add to
018112789000/0SCREW TE M5 x 12£2.06 Add to
019118551460/0SPEED GOVERNOR ASSEMBLY£17.59 Add to
020118552541/0GOVERNOR ARM SHAFT£4.32 Add to
022118550935/0OIL SEAL (OBSOLETE) (OBSOLETE)N/A
023118550856/0LOCK PIN (OBSOLETE) (OBSOLETE)N/A
024118552654/0OIL SEAL£3.92 Add to
025118552713/0CRANKCASE COVER£76.19 Add to
027118551535/0HEXAGONAL BOLT£1.87 Add to
028118552646/0BOLT£3.61 Add to
029118552528/0HEAD COVER£9.18 Add to
030118550892/0HEAD COVER GASKET£3.69 Add to
031118550893/0ROCKER VALVE ARM SET£13.64 Add to
032118552593/0PLATE£5.10 Add to
033118550895/0RETAINER VALVE SPRING (OBSOLETE) (OBSOLETE)N/A
034118550896/0VALVE SPRING£3.40 Add to
035118550910/0INTAKE/EXHAUST VALVE KIT£20.72 Add to
036118550291/0VALVE LIFTER£10.09 Add to
037118550912/0PUSH ROD£7.63 Add to
038118552551/0PISTON£31.08 Add to
039118552553/0PISTON RING SET£26.14 Add to
040118550915/0PISTON PIN£5.73 Add to
041118550914/0PISTON PIN CLIP£2.06 Add to
042118550916/0CONNECTING ROD ASSEMBLY£26.18 Add to
043118551117/0VALVE STEM SEAL£8.32 Add to
046118552706/0SIDE PLATE£4.94 Add to
