ELECTRICAL PARTS

Parts list

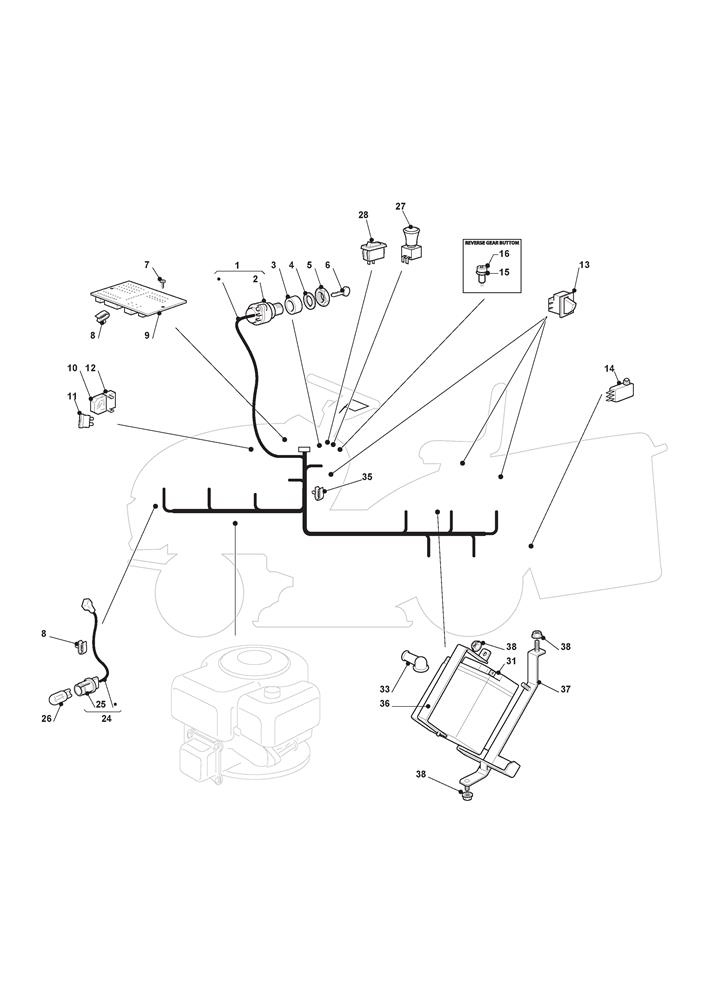

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001182040153/0WIRING HARNESS NJ92 (B&S-KOH)£231.93 Add to
002118450072/0IGNITION SWITCH£32.19 Add to
003118550136/0PLASTIC RING NUT£2.06 Add to
004118550135/0RING NUT WASHER£2.06 Add to
005118400862/0THREADED RING NUT£4.64 Add to
006118210022/0IGNITION KEY [PAIR]£9.65 Add to
007112727810/0SELF-TAP SCREW 3.5 x 13£2.06 Add to
008133320506/0CABLE CLIP£1.79 Add to
009125722431/0PC BOARD (6 LED)NO RETURN ON THIS ITEM£114.60 Add to
010133215000/0FUSE HOLDER COVER£3.83 Add to
011133340036/0FUSE 25A£2.06 Add to
011133340040/0FUSE 10A£2.47 Add to
012133500007/0FUSE HOLDER£7.64 Add to
013119410622/1MICRO SWITCH N.O.£7.10 Add to
014119410605/1MICRO SWITCH£36.77 Add to
015325256250/0THREADED RING NUT£2.87 Add to
016325605003/0PUSH BUTTON REVERSE GEAR£42.51 Add to
024182040073/0HEADLIGHTS CABLE£18.68 Add to
025133500030/0LAMP HOLDER£4.23 Add to
026118459100/0HEADLIGHT BULB£2.47 Add to
027118450073/0YELLOW CLUTCH SWITCH£15.41 Add to
028118450084/0HEADLIGHT SWITCH£4.35 Add to
031118120068/0BATTERY 12V 18AH£109.15 Add to
033118564861/2RED RUBBER TERMINAL COVER£7.10 Add to
035133320506/0CABLE CLIP£1.79 Add to
036327772099/1BATTERY FIXING CLAMP£5.05 Add to
037382785191/0BATTERY SUPPORT£17.86 Add to
038112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
