STEERING 15"

Parts list

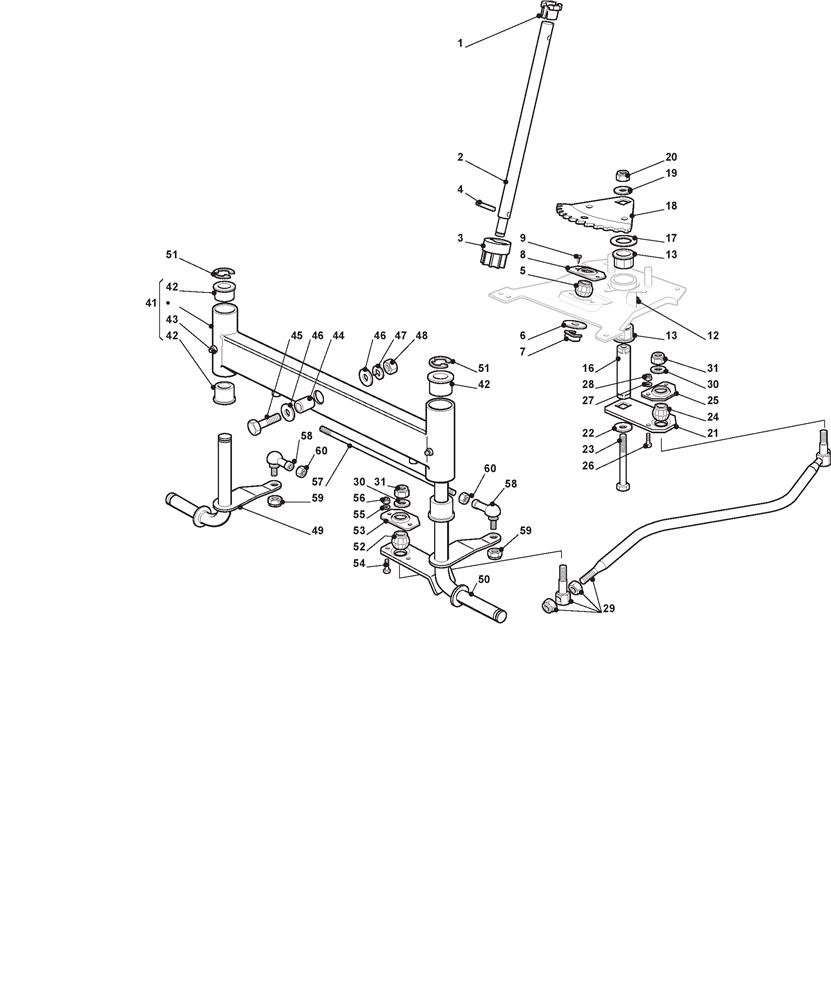

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 325038004/0 BUSH (BLACK) £3.65 Add to
002 125520006/1 STEERING COLUMN D=16 £21.95 Add to
003 127570050/0 STEERING PINION £10.95 Add to
004 112622650/0 CYLINDRICAL PIN D=6X35 £2.95 Add to
005 325743000/0 JOINT £3.00 Add to
006 112521370/0 WASHER M12 13 24 x 2.5 £2.06 Add to
007 112436030/0 PIN PLATE £1.91 Add to
008 325785213/1 STEERING JOINT SUPPORT £2.32 Add to
009 112729601/1 SELF-TAP SCREW TE FL 5.5 x 16 £2.06 Add to
012 112379511/0 STRAIGHT GREASE NIPPLE M6 x 1 £2.06 Add to
013 325040624/0 STEERING BUSH £2.06 Add to
016 125510092/0 PIN £16.22 Add to
017 125670019/0 ANTI-FRICTION WASHER 40 x 19.5 x 0.8 £3.15 Add to
018 325735513/0 STEERING QUADRANT £12.14 Add to
019 112523080/0 WASHER M10 11 x 30 x 2.5 £2.06 Add to
020 112155020/0 SELF-BINDING NUT M10 £2.06 Add to
021 325318205/0 STEERING CONTROL LEVER £5.19 Add to
022 112523080/0 WASHER M10 11 x 30 x 2.5 £2.06 Add to
023 112794985/0 SCREW M10 x 120 £3.69 Add to
024 325743000/0 JOINT £3.00 Add to
025 325785213/1 STEERING JOINT SUPPORT £2.32 Add to
026 112791213/1 SCREW M6 X 18 £1.74 Add to
027 112521330/0 WASHER M6 6.4 X 12 X 1.6 £2.06 Add to
028 112154510/0 LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S £2.06 Add to
029 382000539/1 STEERING ROD ASSEMBLY 15" £58.87 Add to
030 112523070/0 WASHER M8 8.5 x 32 x 2.5 £2.06 Add to
031 112155010/0 SELF-LOCKING NUT M8 A-LOK ACC.6S £2.47 Add to
041 382034024/1 FRONT AXLE ASSEMBLY 15" £177.43 Add to
042 125034002/1 BUSH £3.96 Add to
043 112379511/0 STRAIGHT GREASE NIPPLE M6 x 1 £2.06 Add to
044 125160016/1 EQUALIZER SPACER £5.46 Add to
045 112692695/0 HEX-HEAD SCREW M12 x 60 £2.06 Add to
046 112523100/0 WASHER M12 14 x 36 x 3 £2.06 Add to
047 112587100/0 WASHER M12 £2.06 Add to
048 112295300/0 HEXAGON NUT M12 £2.06 Add to
049 382230363/0 RIGHT STUB AXLE £69.78 Add to
050 382230365/0 LEFT STUB AXLE £74.78 Add to
051 112001000/0 CIRCLIP ID=15 TH=1.5 £1.83 Add to
052 325743000/0 JOINT £3.00 Add to
053 325785213/1 STEERING JOINT SUPPORT £2.32 Add to
054 112791213/1 SCREW M6 X 18 £1.74 Add to
055 112521330/0 WASHER M6 6.4 X 12 X 1.6 £2.06 Add to
056 112154510/0 LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S £2.06 Add to
057 125840023/0 TIE ROD £12.82 Add to
058 122746609/0 ANGULAR JOINT M10 £18.53 Add to
059 112156602/0 LOW SELF-LOCKING NUT M10 £1.79 Add to
060 112295200/0 HEXAGON NUT M10 £1.79 Add to
