TRANSMISSION

Parts list

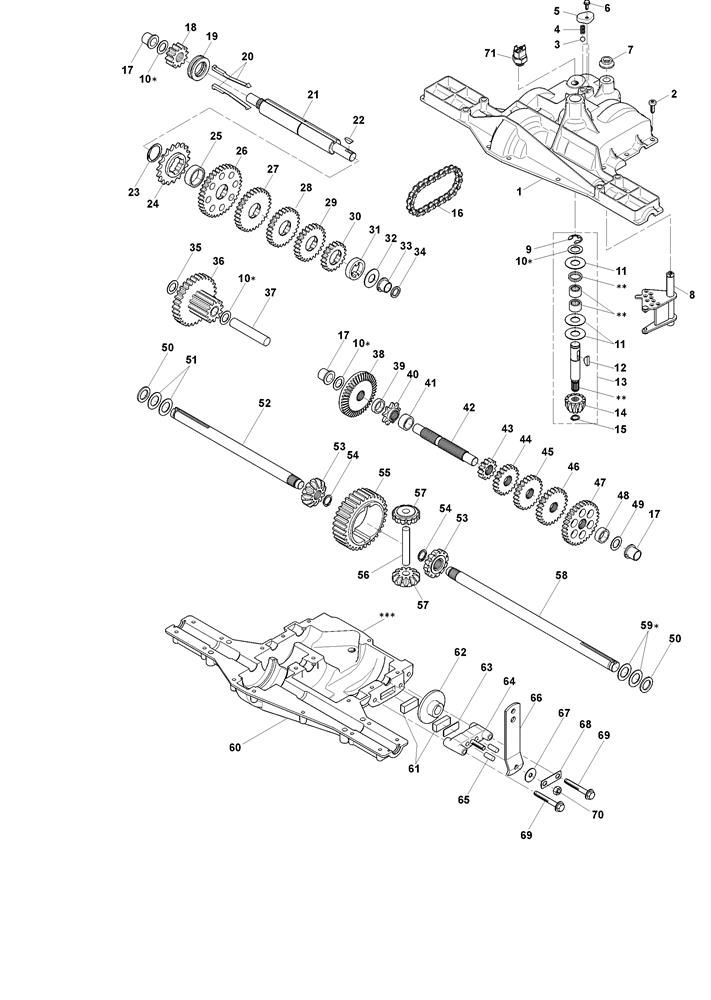

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
011F000-3876-00WASHER£9.14 Add to
013F000-6595-01INPUT SHAFT SERVICE KIT£165.76 Add to
014F000-6595-01INPUT SHAFT SERVICE KIT£165.76 Add to
016F000-3625-00CHAIN,24 PITCHES£101.13 Add to
054F000-5270-00RETAINING RING£2.32 Add to
061118870066/0BRAKE PAD£8.19 Add to
069F000-5562-00SCREW£6.69 Add to
071119410610/0NEUTRAL SWITCH [MECHANICAL]£54.79 Add to
