MECHANICAL TRANSMISSION - PEERLESS

Parts list

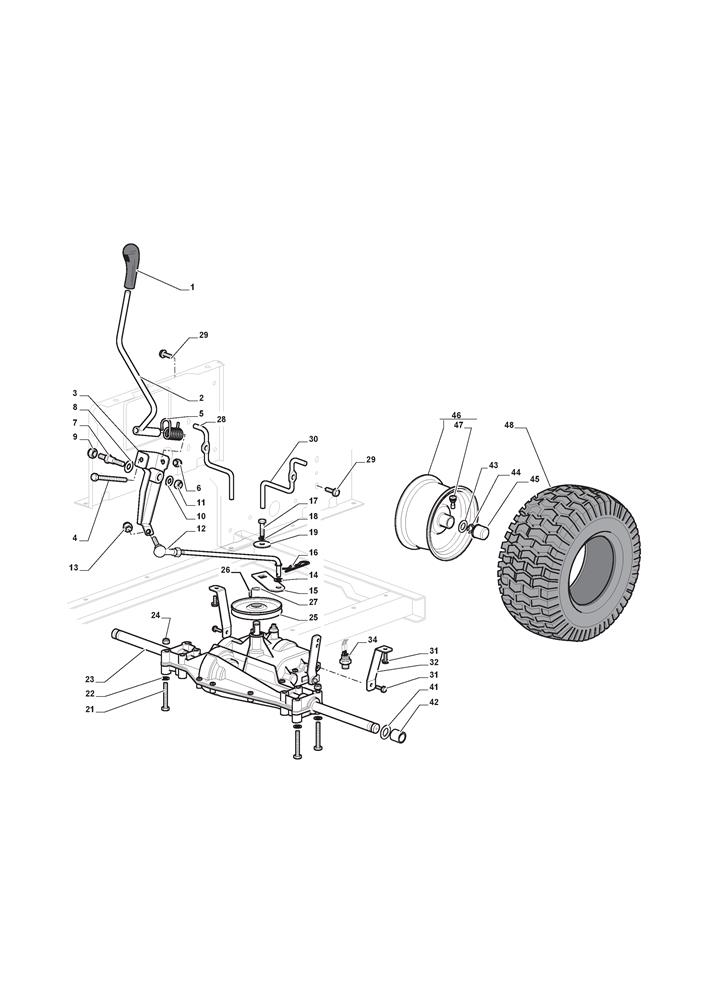

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325394532/0GEAR KNOB£4.64 Add to
002382318233/0DRIVE GEAR LEVER£17.97 Add to
003382774259/1CLAMP£12.94 Add to
004112692050/0HEX-HEAD SCREW£1.91 Add to
005125430226/0DRIVE CONTROL LEVER SPRING WZ TCJ£2.18 Add to
006112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
007125510035/0FULCRUM PIN£4.10 Add to
008322672151/0ANTI-FRICTION WASHER 12.2 x 30 x 0.8£1.91 Add to
009112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
010112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
011112155010/0SELF-LOCKING NUT M8 A-LOK ACC.6S£2.47 Add to
012382000567/1GEAR ROD ASSY£27.04 Add to
013112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
014112521340/0WASHER M7 7.4 x 14 x 1.6£1.79 Add to
015325318235/0GEAR LEVER PLATE£2.87 Add to
016112141418/0SPLIT PIN 3 x 20£1.76 Add to
017112735520/0"HEX-HEAD SCREW 1/4"" x 5/8"""£2.06 Add to
018112540040/0EXTERNAL TOOTHED WASHER M6£1.79 Add to
019322680009/0FLAT WASHER 6.5 x 32 x 4 WZ£1.91 Add to
021112691600/0HEX-HEAD SCREW M8x70 UNI 5737 ACC.8.8£1.91 Add to
022112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
023118400922/1TRANSAXLE-630030 (LANGHUI)£767.54 Add to
024112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
025182601509/0MOBILE PULLEY£77.95 Add to
026112139430/0KEY 3/16" x 3/4"£2.06 Add to
027112608950/0CIRCLIP D=0,584TO D=0,569£2.06 Add to
028125270329/0REAR RIGHT BELT GUIDE£4.59 Add to
029112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
030125270330/0REAR LEFT BELT GUIDE£4.59 Add to
031125943009/0HEX-HEAD SCREW M8 x 1.25£2.06 Add to
032325785315/0TRANSAXLE SUPPORT£6.01 Add to
034119410610/0NEUTRAL SWITCH [MECHANICAL]£54.79 Add to
041125670005/2SPINDLE WASHER£3.89 Add to
042125160055/0SPACER£2.87 Add to
043125670005/2SPINDLE WASHER£3.89 Add to
044112001010/0CIRCLIP ID=0,580 TH=0.050£1.76 Add to
045322110233/0HUB CAP [BLACK]£2.06 Add to
046182001509/1REAR WHEEL RIM 7.5" X 8" DARK GREY£83.78 Add to
047125950000/0PNEUMATIC VALVE£5.73 Add to
