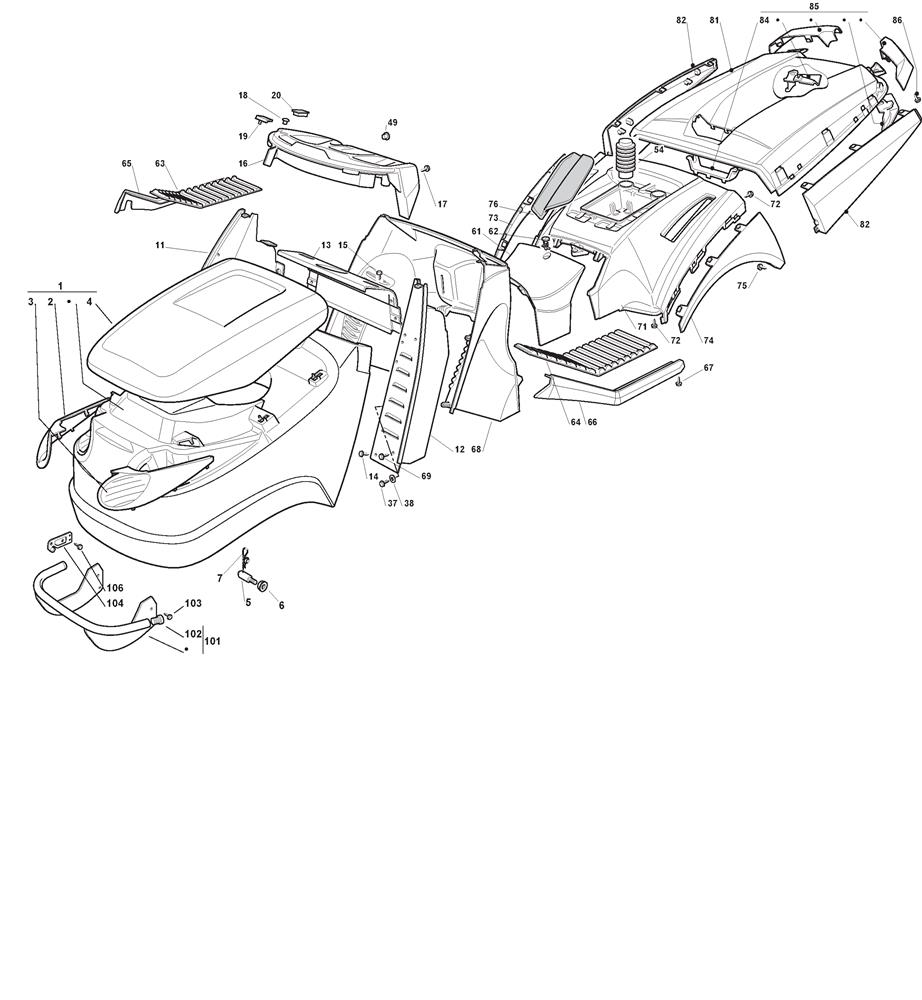

BODYWORK

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382076970/1ENGINE HOOD [GREEN]£293.23 Add to
002325410891/0HEADLIGHTS R/H GRILL£9.28 Add to
003325410892/0HEADLIGHTS L/H GRILL£9.28 Add to
004325076940/0UPPER ENGINE HOOD [GREEN]£71.46 Add to
005125510068/0BONNET FULCRUM PIN£2.06 Add to
006112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
007124487998/0R CLIP D=2£2.06 Add to
011382785022/10RIGHT DASHBOARD SUPPORT£42.53 Add to
012382785323/0LEFT DASHBOARD SUPPORT£44.23 Add to
013382785137/1CENTRAL DASHBOARD SUPPORT£12.27 Add to
014112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
015112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
016325120266/0DASHBOARD [GREY] TX£43.89 Add to
017112728440/0SELF-TAPPING SCREW 4.8 X 13£1.79 Add to
018125120200/0CAP (OBSOLETE)£2.54 Add to
019125260000/0ANTI-VIBRATION RUBBER GROMMET£3.41 Add to
037112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
038112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
049325120233/0CAP (OBSOLETE)£4.28 Add to
054325737002/0PROTECTION COVER£6.01 Add to
061325110501/0CENTRAL COVER [BLACK]£34.10 Add to
062125580020/2SPRING TENSIONED SCREW£7.23 Add to
063325110278/1R/H FOOTBOARD COVER [BLACK]£26.18 Add to
064325110279/0L/H FOOTBOARD COVER [BLACK]£26.18 Add to
065325599004/0RIGHT FOOTBOARD PROFILE [BLACK]£16.22 Add to
066325599005/0LEFT FOOTBOARD PROFILE [BLACK]£17.64 Add to
067112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
068325785449/0DASHBOARD SUPPORT [GREY]£76.59 Add to
069112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
071325109788/0WHEELS COVER [GREEN]£114.74 Add to
072112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
073325109758/0RIGHT WHEEL COVER [BLACK]£18.27 Add to
074325109757/0LEFT WHEEL COVER [BLACK]£18.27 Add to
075112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
076325207129/1CAN HOLDER COVER [BLACK]£24.34 Add to
081325110449/0GRASSCATCHER TOP (GREEN)£160.55 Add to
082382110254/0REAR WHEEL COVER KIT [TCP]£52.06 Add to
084325394009/0GRASSCATCHER HANDLE [BLACK]£8.32 Add to
085382110300/1ANGULAR SUPPORTS KIT£38.44 Add to
086112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
101382869025/0FRONT BUMPER BAR£117.75 Add to
102118737860/0END CAP D=40£2.06 Add to
103112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
104325547109/2RIGHT/LEFT HOOKING PLATE£5.32 Add to
106112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
