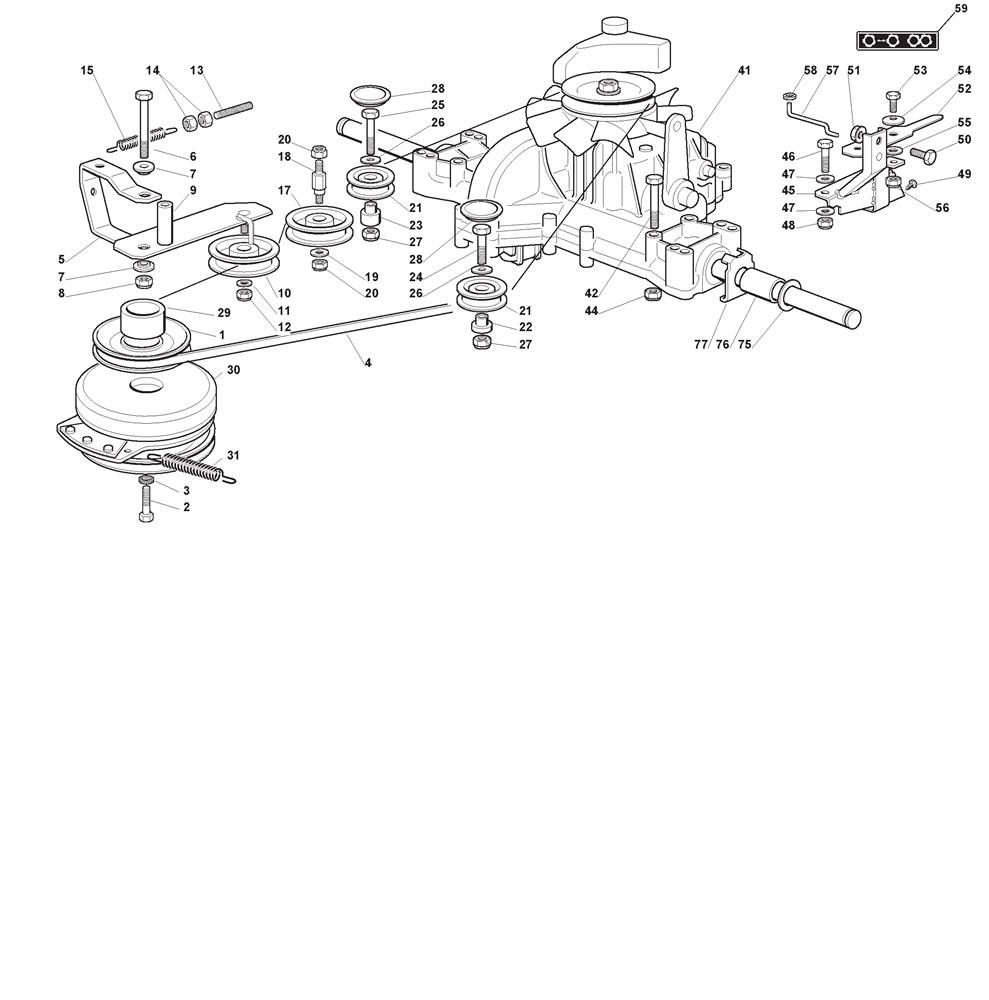

TT TRANSMISSION WITH WARNER ELECTROMAGNETIC CLUTCH

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001125601566/1MOTOR PULLEY£32.99 Add to
002112737320/0THREADED SCREW 7/16" x 3" 20 UNF£4.78 Add to
003112543000/0SAFETY WASHER D=7/16£2.06 Add to
004135062001/0BELT£43.55 Add to
005382318165/2LEVER£26.62 Add to
006112692000/0SCREW M8 x 75£2.06 Add to
007125038002/1BUSH£2.06 Add to
008112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
009125160027/0SPACER£2.87 Add to
010125601554/0PULLEY£26.18 Add to
011112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
012112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
013125840010/1TIE ROD£2.32 Add to
014112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
015125430219/1SPRING£3.96 Add to
017325601599/0PULLEY (STEEL) (BEARING HOLE D 15)£19.62 Add to
019112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
020112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
021325601570/1BELT PULLEY£24.95 Add to
022125160030/2PULLEY SPACER£6.47 Add to
023125160024/2PULLEY SPACER£8.21 Add to
024112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
025112691400/0HEX-HEAD SCREW M8 X 50£1.76 Add to
026112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
027112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
028125109521/1COVER£2.06 Add to
029125160059/0PULLEY SPACER L=25.8£6.69 Add to
030118399062/1ELECTROMAGNETIC CLUTCH 1-5217-38 (NO RETURNS ON TH£355.85 Add to
031125430210/1BRAKE SPRING£3.00 Add to
041118400950/1HYDRO TRANSAXLE K46F£1,424.29 Add to
042112691800/0HEX-HEAD SCREW M8 x 60£2.06 Add to
044112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
046112691200/0HEX-HEAD SCREW M8 x 45£2.06 Add to
047112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
048112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
049112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
050112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
051112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
052325318157/0LEVER£5.73 Add to
053112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
054112369500/0SPRING WASHER D=8£1.79 Add to
055325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
056112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
057125033033/1ROD£2.47 Add to
058112604896/0STARLOCK WASHER D=6£2.06 Add to
059114370818/0TRANSMISSION UNLOCK LABEL£2.74 Add to
075125670005/2SPINDLE WASHER£3.89 Add to
076125160023/0SPACER£7.34 Add to
077325670025/0SPACER WASHER TT£4.27 Add to
