ELECTRICAL PARTS

Parts list

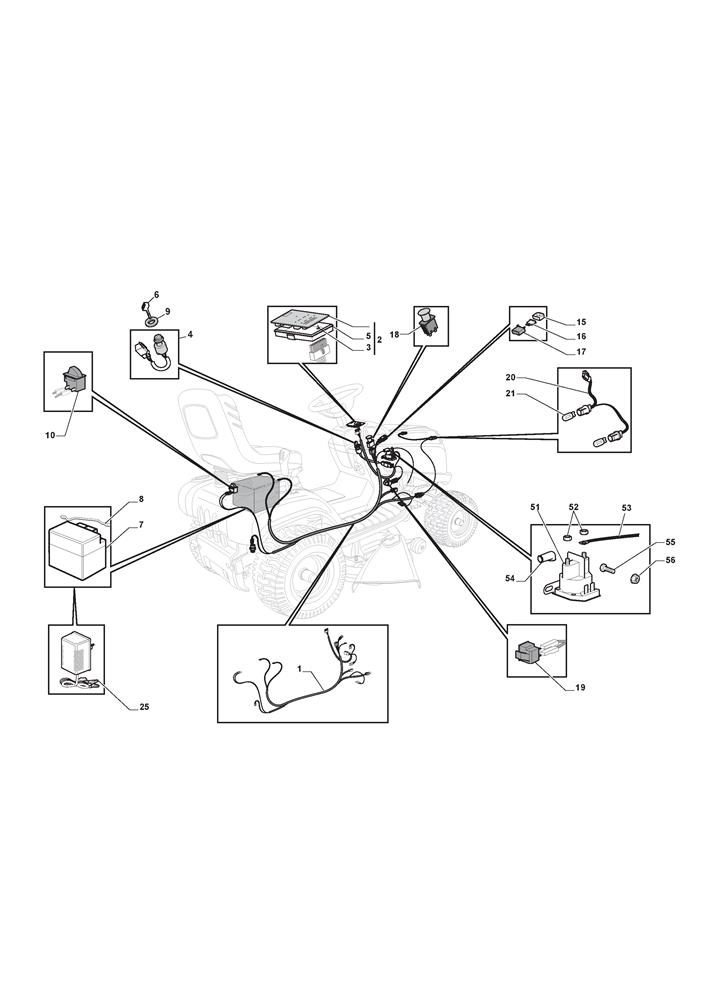

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001182040196/1WIRING HARNESS [SD HYDRO]£142.93 Add to
002382722471/2PC BOARD SD (ISO)£47.50 Add to
003112735105/0SELF-TAP SCREW TE 3.5 x 16£2.06 Add to
004118450075/1STARTING SWITCH£20.45 Add to
006118210023/0IGNITION KEY [PAIR]£6.29 Add to
007118120068/0BATTERY 12V 18AH£109.15 Add to
008125430265/1SPRING ROD£1.91 Add to
009118400863/0LOCKING RING£2.06 Add to
010119410633/0MICRO SWITCH N.O.£7.50 Add to
015133215000/0FUSE HOLDER COVER£3.83 Add to
016133340036/0FUSE 25A£2.06 Add to
016133340040/0FUSE 10A£2.47 Add to
017133500007/0FUSE HOLDER£7.64 Add to
018118450073/0YELLOW CLUTCH SWITCH£15.41 Add to
019119410622/1MICRO SWITCH N.O.£7.10 Add to
021118459100/0HEADLIGHT BULB£2.47 Add to
0251134-9250-01BATTERY CHARGER KIT 1.0A UK-CE PLUG£61.27 Add to
051118736112/0SOLENOID£39.80 Add to
052112361005/0HEXAGON NUT 1/4" UNC£2.71 Add to
053125065002/0SOLENOID STARTING CABLE£10.91 Add to
054118564864/1RED RUBBER TERMINAL COVER£6.01 Add to
055112790781/0HEX-HEAD SCREW M6 x 12£1.76 Add to
056112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
