ELECTRICAL PARTS

Parts list

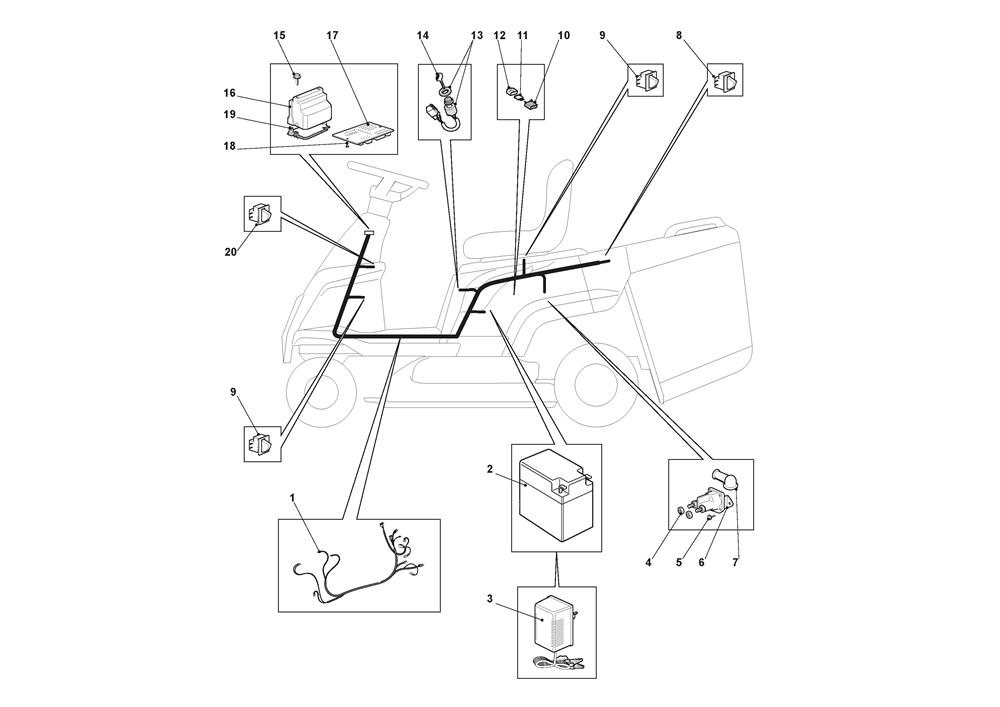

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001184040132/0WIRING HARNESS NR66 EL£76.59 Add to
002118120070/0BATTERY 9Ah£71.57 Add to
0031134-9250-01BATTERY CHARGER KIT 1.0A UK-CE PLUG£61.27 Add to
0049743-5121-32LOCK NUT 5/16"£1.79 Add to
005112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
006118736113/0SOLENOID£39.22 Add to
007118564861/2RED RUBBER TERMINAL COVER£7.10 Add to
008119410618/0MICRO SWITCH£5.19 Add to
009119410622/1MICRO SWITCH N.O.£7.10 Add to
010133500007/0FUSE HOLDER£7.64 Add to
011133340040/0FUSE 10A£2.47 Add to
012133215000/0FUSE HOLDER COVER£3.83 Add to
013118450075/1STARTING SWITCH£20.45 Add to
014118210023/0IGNITION KEY [PAIR]£6.29 Add to
015112728523/0SELF-TAPPING SCREW TCB 4 x 12£2.06 Add to
016127600119/0PC BOARD UPPER GUARD£3.28 Add to
017127722354/2PC BOARD No returns on this item£101.13 Add to
018112729600/0SELF-TAP SCREW TE 5.5 x 16£2.06 Add to
020119410623/0MICRO SWITCH N.C.£7.92 Add to
