BODYWORK

Parts list

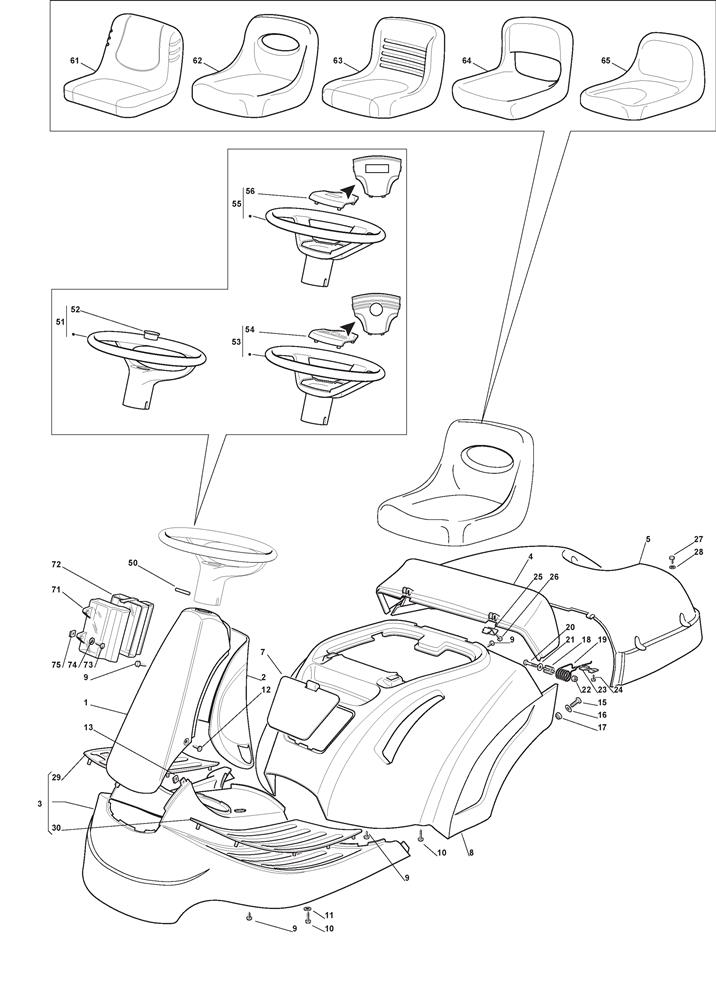

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001384598088/0STEERING COVER [GREEN]£42.53 Add to
004327110461/0FIXED GRASSCATCHER COVER [GREEN]£41.97 Add to
005327110462/0GRASSCATCHER TOP [GREEN]£71.33 Add to
007327109528/0FRONT COVER CAP [GREEN]£11.67 Add to
009112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
010112735410/0FLANGED HEX-HEAD SCREW D=6 x 35£2.06 Add to
011112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
013112437503/0LOCK PLATE£2.06 Add to
015112791213/1SCREW M6 X 18£1.74 Add to
016112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
017112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
018127047003/0BUSH£2.06 Add to
019127430551/1SPRING£3.15 Add to
020112691200/0HEX-HEAD SCREW M8 x 45£2.06 Add to
021112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
022112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
023327546001/0SPRING PLATE£1.79 Add to
024112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
025327546003/0COVER PLATE£2.06 Add to
026112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
027112729600/0SELF-TAP SCREW TE 5.5 x 16£2.06 Add to
028112521331/0WASHER M6 6,4X12,5X1,6 BLACK£2.06 Add to
029127110304/0RIGHT FOOTBOARD COVER [BLACK]£10.23 Add to
030127110305/0LEFT FOOTBOARD COVER [BLACK]£11.04 Add to
050112620299/0SPIROL FLEXIBLE PIN 6 x 45£1.91 Add to
053125961216/1STEERING WHEEL (BLACK)£53.16 Add to
054325580501/0CENTRAL STEERING WHEEL CAP£6.69 Add to
063125722488/0CLASSIC 2022 SEAT£181.97 Add to
071125600020/0UPPER GUARD£9.62 Add to
072125600021/1LOWER GUARD£10.25 Add to
073112728460/0SELF-TAPP.SCREW 4.8X38 UNI 6954£2.06 Add to
074112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
075112437502/0PLATE£2.06 Add to
