BODYWORK

Parts list

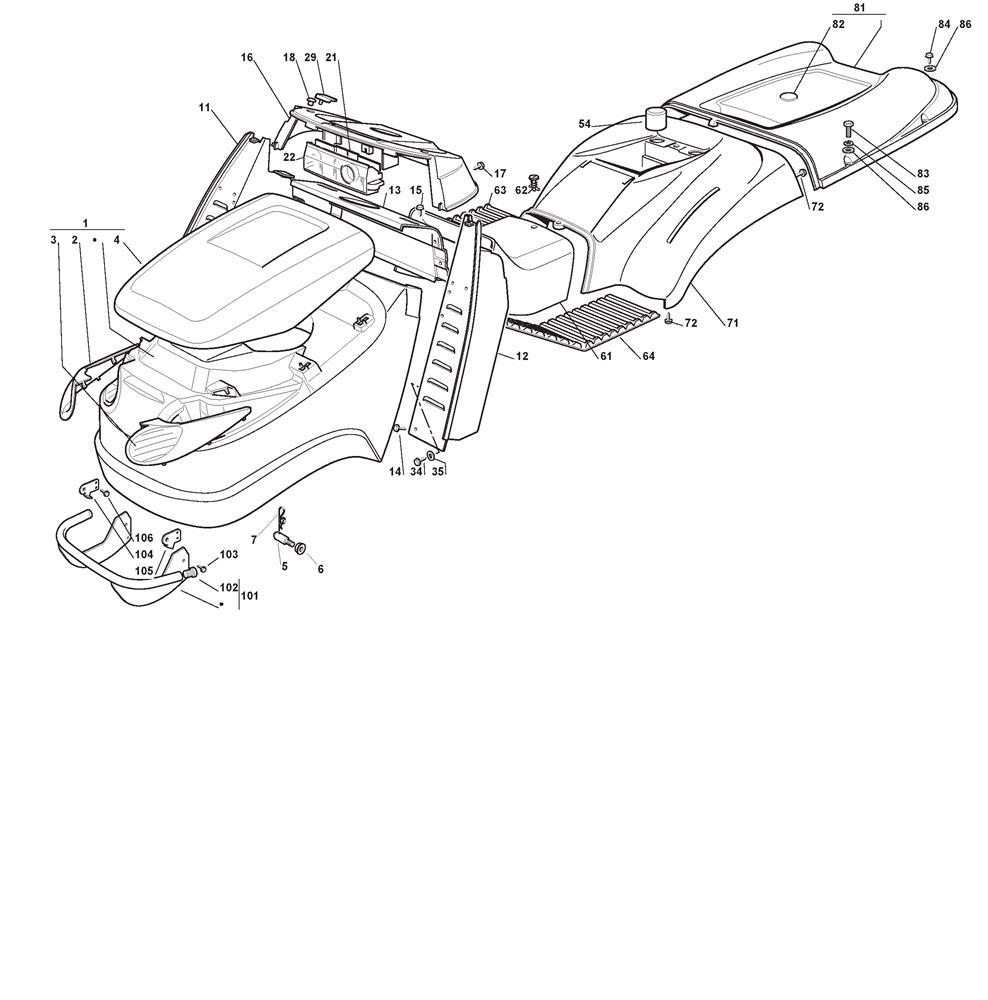

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382076970/1ENGINE HOOD [GREEN]£293.23 Add to
002325410891/0HEADLIGHTS R/H GRILL£9.28 Add to
003325410892/0HEADLIGHTS L/H GRILL£9.28 Add to
004325076901/0RED UPPER BONNET TC-TCJ£68.42 Add to
005125510068/0BONNET FULCRUM PIN£2.06 Add to
006112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
007112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
011382785022/10RIGHT DASHBOARD SUPPORT£42.53 Add to
012382785323/0LEFT DASHBOARD SUPPORT£44.23 Add to
013382785137/1CENTRAL DASHBOARD SUPPORT£12.27 Add to
014112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
015112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
016325120278/0DASHBOARD [BLACK]£41.41 Add to
017112728440/0SELF-TAPPING SCREW 4.8 X 13£1.79 Add to
018125120200/0CAP (OBSOLETE)£2.54 Add to
021125600009/0PROTECTIVE COVER£3.00 Add to
022125600051/0PC BOARD PROTECTION COVER£10.49 Add to
029125260000/0ANTI-VIBRATION RUBBER GROMMET£3.41 Add to
034112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
035112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
054325122000/2PROTECTION CAP£2.06 Add to
061325110239/1CENTRAL COVER [RED] HYDRO£32.99 Add to
062125580020/2SPRING TENSIONED SCREW£7.23 Add to
063125110270/0RIGHT FOOTBOARD COVER£26.93 Add to
064382110314/0FOOTBOARD COVER RH/LH£53.16 Add to
071325109701/1WHEELS COVER [RED] HYDRO£129.74 Add to
072112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
081382110200/1GRASSCATCHER TOP [RED]£152.39 Add to
082325547025/1COVER [RED]£2.18 Add to
083112674700/0SCREW M6 X 35£2.06 Add to
084112729600/0SELF-TAP SCREW TE 5.5 x 16£2.06 Add to
085112582100/0LOCK WASHER M6£2.06 Add to
086112521331/0WASHER M6 6,4X12,5X1,6 BLACK£2.06 Add to
101382869025/0FRONT BUMPER BAR£117.75 Add to
102118737860/0END CAP D=40£2.06 Add to
103112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
104325547091/1LEFT PLATE£4.52 Add to
105325547091/1LEFT PLATE£4.52 Add to
106112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
