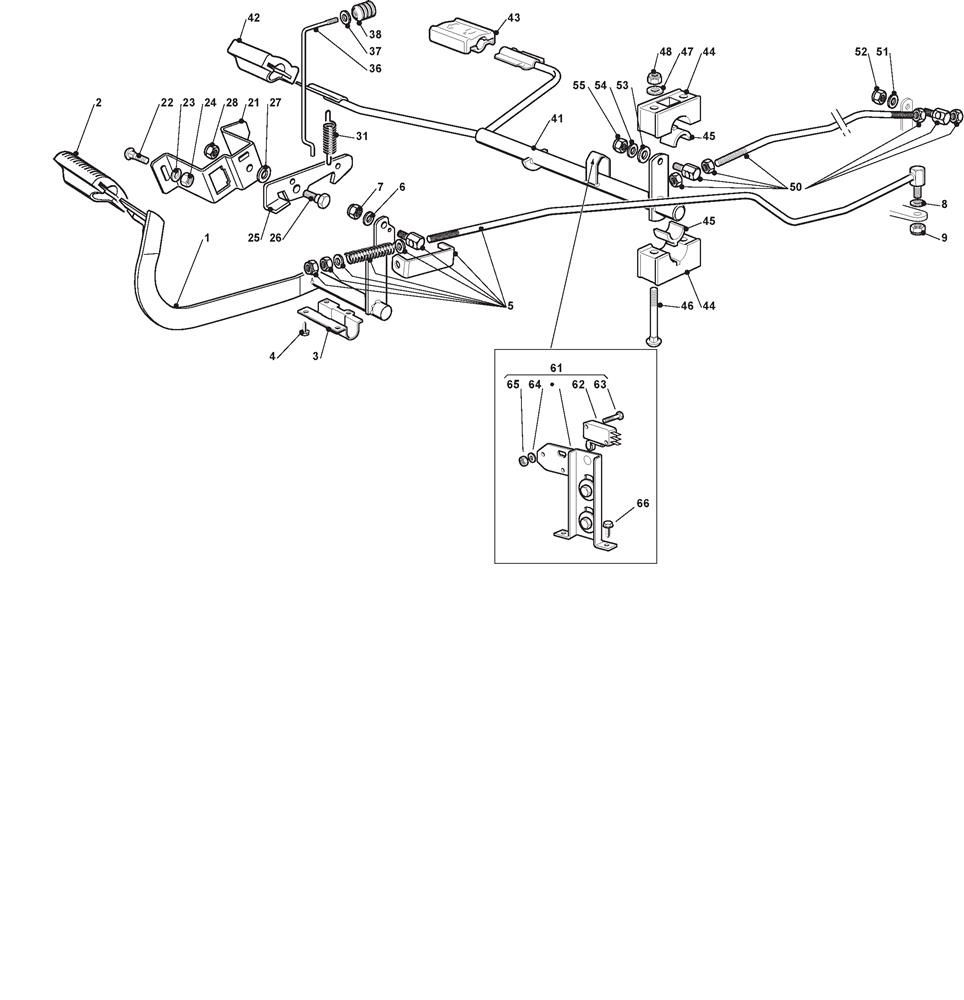

BRAKE AND GEARBOX CONTROLS

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382500011/2BRAKE PEDAL£70.68 Add to
002325110416/0PEDAL COVER [BLACK]£9.41 Add to
003325547081/2BRACKET£5.46 Add to
004112731601/0SELF-TAP SCREW 4.8 x 16£2.32 Add to
005382000582/0BRAKE DRIVE ROD£43.89 Add to
006112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
007112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
008112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
009112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
021325785143/1SUPPORT BRACKET£4.91 Add to
022112815210/0SCREW M6 x 20£2.06 Add to
023112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
024112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
025325253001/0HOOK£4.52 Add to
026122524970/2SEAT FULCRUM PIN FROM S/N 88152£2.18 Add to
027325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
028112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
031125430213/0SPRING£2.06 Add to
036125033034/0PARKING BRAKE ROD£5.60 Add to
038112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
041382000391/1FEED/REVERSE GEAR CONTROL AXLE£84.77 Add to
042325110417/0FRONT PEDAL COVER [BLACK]£9.41 Add to
043325110418/0REAR PEDAL COVER [BLACK]£9.41 Add to
044325785354/0UPPER BRACKET£2.47 Add to
045325034003/0SPACER£2.18 Add to
046112815271/0SCREW M6 x 70£2.06 Add to
047112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
048112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
050382000579/0FEED CONTROL ROD£34.35 Add to
051112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
052112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
053112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
054112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
055112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
061382394853/0LCMICRO SWITCH ASSEMBLY£57.52 Add to
062119410609/1LCNEUTRAL KEDU SWITCH [HYDRO]£28.90 Add to
063112735602/0"SELF-FORMING SCREW M3 x 20 ""TAPTITE""£2.06 Add to
064112581100/0WASHER GROWER M3 UNI 1751 WZ£1.79 Add to
065112290791/0HEXAGON NUT M3 UNI 5588 ACC.6S£2.06 Add to
066112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
