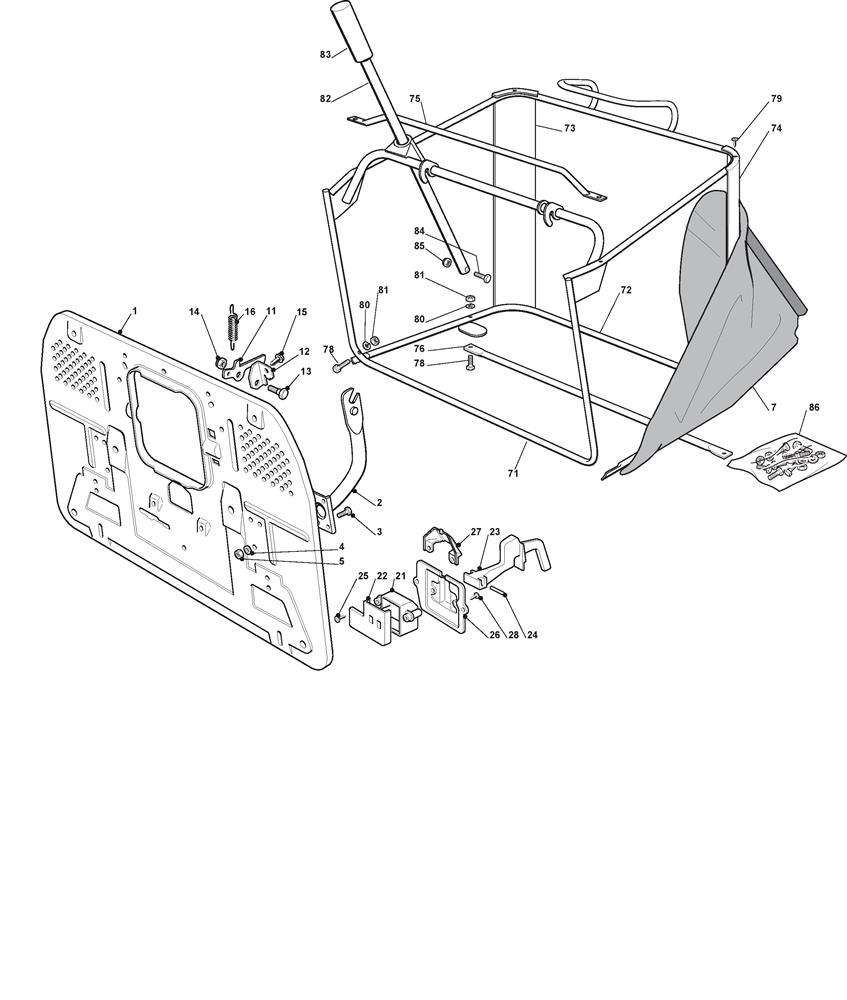

GRASSCATCHER , MANUAL LIFTING

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	382547053/1	BP REAR PLATE TCX W/EL LIFT 16/17	£153.16	Add to
002	182774225/1	GRASSCATCHER SUPPORT CLAMP	£32.29	Add to
003	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
004	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
005	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
007	182106000/2	GRASSCATCHER BAG TC 102-122cm	£120.90	Add to
011	325774315/1	GRASSCATCHER LOWER HOOKING CLAMP	£4.37	Add to
012	325755031/2	CLAMP PIN SUPPORT BRACKET	£5.46	Add to
013	125510080/2	CLAMP PIN	£1.79	Add to
014	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
015	112735122/1	HEX-HEAD SELF-TAP SCREW 6.3 x 16	£2.06	Add to
016	125430210/1	BRAKE SPRING	£3.00	Add to
021	125600041/0	MICRO PROTECTION COVER	£2.32	Add to
022	125600042/0	MICRO PROTECTION COVER	£3.41	Add to
023	125318124/0	MICRO CONTROL LEVER	£2.32	Add to
024	112400030/0	PIN D=3 L=30	£1.91	Add to
025	112728440/0	SELF-TAPPING SCREW 4.8 X 13	£1.79	Add to
026	325785272/1	MICRO SWITCH COVER	£2.47	Add to
027	125600048/0	MICRO SWITCH COVER	£2.06	Add to
028	112728450/0	SELF-TAP SCREW 4.8 x 19	£2.81	Add to
071	382800051/1	UPPER GRASSCATCHER FRAME	£204.69	Add to
072	382800002/2	LOWER GRASSCATCHER FRAME	£34.35	Add to
073	325032001/1	RIGHT ANGULAR SUPPORT	£15.69	Add to
074	325032002/1	LEFT ANGULAR SUPPORT	£15.69	Add to
075	382394001/2	FRONT GRASSCATCHER HANDLE	£13.08	Add to
076	382650038/1	REINFORCEMENT BAR	£12.68	Add to
078	112674550/0	SCREW TE M6 x 30	£2.06	Add to
079	112729600/0	SELF-TAP SCREW TE 5.5 x 16	£2.06	Add to
080	112582100/0	LOCK WASHER M6	£2.06	Add to
081	112292100/0	HEXAGON NUT M6	£1.47	Add to
082	125869029/1	TIPPING LEVER	£28.43	Add to
083	125394508/0	KNOB	£4.52	Add to
084	112674550/0	SCREW TE M6 x 30	£2.06	Add to
085	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
086	382180027/1	GRASSCATCHER SCREW OUTFIT	£12.68	Add to
