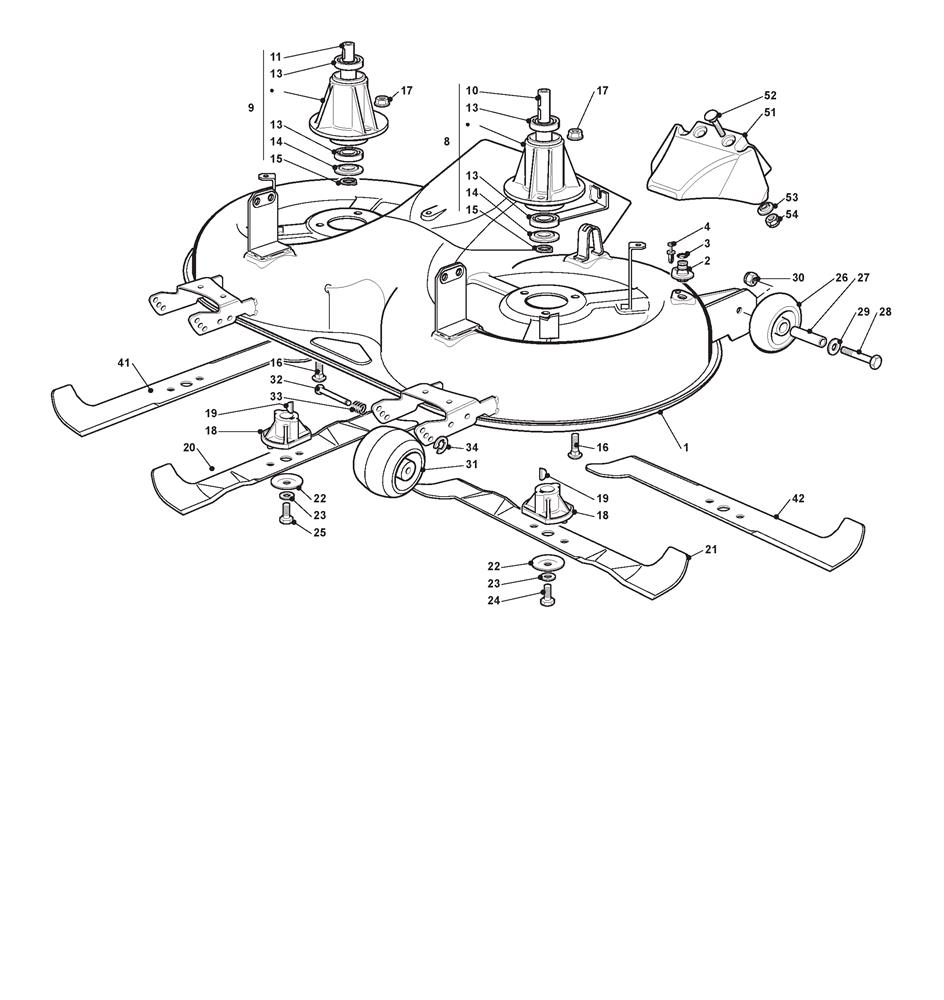

CUTTING PLATE

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382564213/1CUTTING DECK CASING TC122 [BLACK]£938.93 Add to
002125033060/0WASHING CUTTING DECK CONNECTION£2.06 Add to
003119035000/0O RING 10.77 x 2.62£5.46 Add to
004112500030/0PLASTIC RIVET 2494 AA01£2.06 Add to
008382207200/2LCMAIN BLADE SHAFT ASSEMBLY£97.61 Add to
009382207201/3LCSECONDARY BLADE SHAFT ASSEMBLY£85.68 Add to
010125020800/1MAIN BLADE SHAFT£44.40 Add to
011125020801/2SECONDARY BLADE SHAFT£41.17 Add to
014325160501/1DUST COVER WASHER£2.06 Add to
015112609260/0CIRCLIP D=20£2.02 Add to
016112818700/0SCREW M8 x 25£2.81 Add to
017112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
018125463200/0BLADE BOSS£9.82 Add to
019112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
031382318159/0FRONT R/H FULCRUM LEVER£20.32 Add to
032382318161/0FRONT L/H FULCRUM LEVER£23.23 Add to
033125040605/0BUSH£2.06 Add to
034325318161/1LEVER£7.92 Add to
035112691700/0SCREW M8 x 55£1.91 Add to
036112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
037112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
038125510056/1PIN£4.78 Add to
039112295200/0HEXAGON NUT M10£1.79 Add to
040112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
041325670008/1ANTI-FRICTION WASHER 10.8 x 19 x 0.8£2.06 Add to
042112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
043382000477/3CONNECTING ROD£17.80 Add to
044112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
045125510055/1PIN£3.69 Add to
046112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
047112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
048325318153/2REAR CUTTER DECK LEVER£12.40 Add to
049112609255/0CIRCLIP D=19£2.06 Add to
050325033071/0CONNECTING ROD£12.14 Add to
051325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
052125510053/2PIN£2.06 Add to
053125510048/1FIXING PIN£2.32 Add to
054112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
055112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
056125510056/1PIN£4.78 Add to
057325670008/1ANTI-FRICTION WASHER 10.8 x 19 x 0.8£2.06 Add to
058112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
059112794985/0SCREW M10 x 120£3.69 Add to
060112295200/0HEXAGON NUT M10£1.79 Add to
061125510070/1PIN£5.46 Add to
062112523090/0WASHER M10 11 x 40 x 2.5£1.91 Add to
063124487998/0R CLIP D=2£2.06 Add to
064125430218/1DECK LIFT SPRING£6.14 Add to
066112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
071125510048/1FIXING PIN£2.32 Add to
072325318223/0CONNECTING LIFT LEVER£7.10 Add to
073382000585/0CUTTING DECK LIFTING CONTROL AXLE£35.98 Add to
074112815271/0SCREW M6 x 70£2.06 Add to
075325785355/0LOWER BRACKET£2.78 Add to
076325785354/0UPPER BRACKET£2.47 Add to
077325034003/0SPACER£2.18 Add to
078112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
079112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
