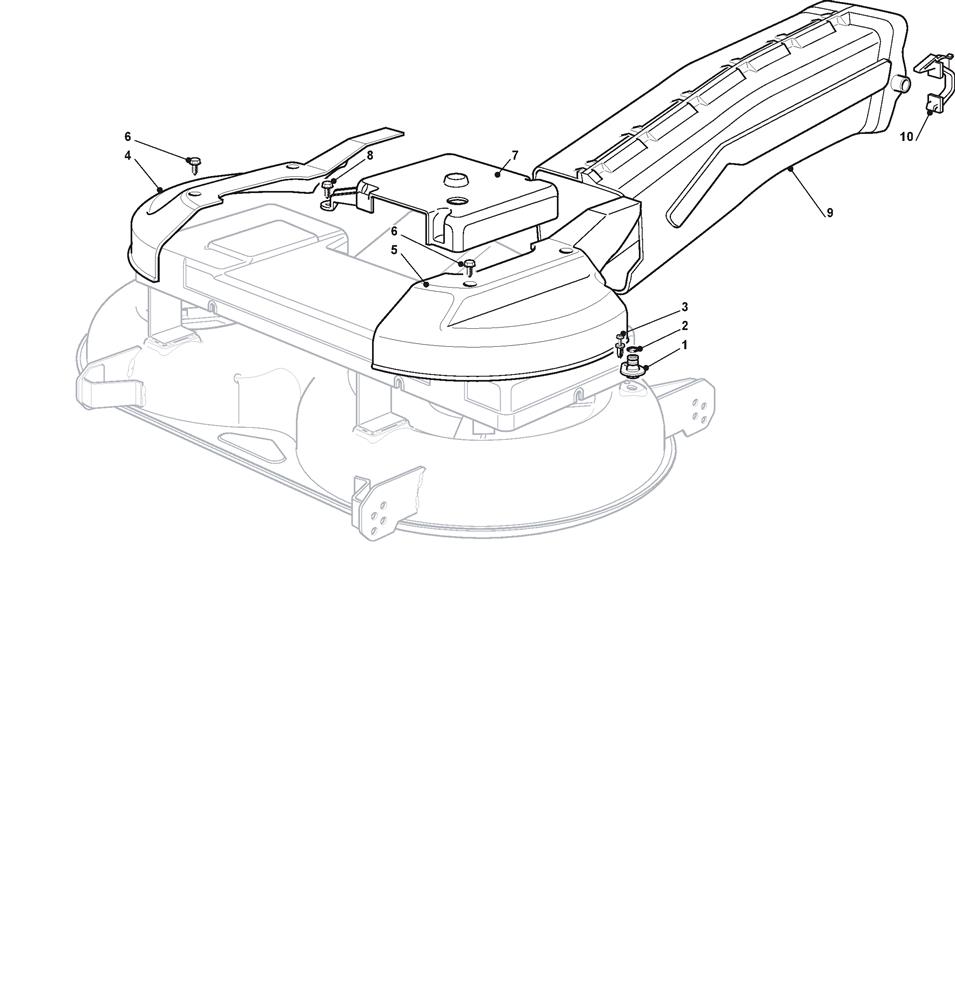

GUARDS AND CONVEYOR

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001125033060/0WASHING CUTTING DECK CONNECTION£2.06 Add to
002119035000/0O RING 10.77 x 2.62£5.46 Add to
003112500030/0PLASTIC RIVET 2494 AA01£2.06 Add to
004325060109/1RIGHT BELT GUARD£9.95 Add to
005325060110/2LEFT BELT GUARD£9.95 Add to
006112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
007125600050/0BELT GUARD£8.04 Add to
008112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
009382108020/0DISCHARGE CHUTE£64.32 Add to
010325774373/0RELEASE CLAMP£3.41 Add to
