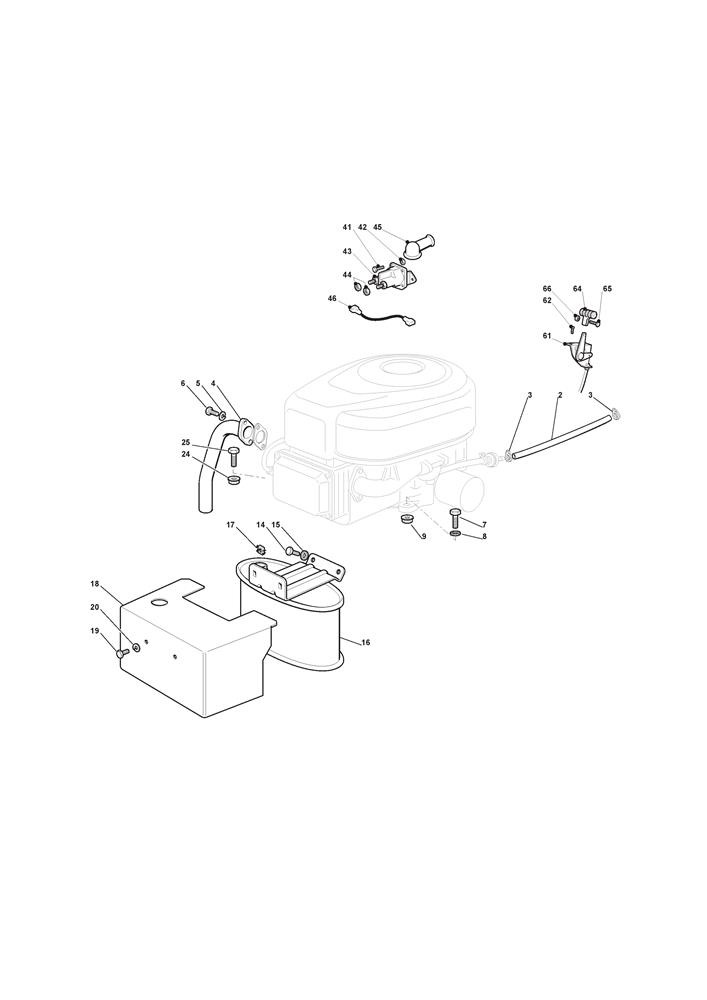

ENGINE - B&S 11,5-12,5-13,5 Hp

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	325869057/0	FUEL TUBE L=1000	£20.72	Add to
003	118375051/1	CABLE CLAMP B&S [GREEN]	£1.91	Add to
004	118738206/0	EXHAUST PIPE	£83.40	Add to
005	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
006	112735530/0	SCREW 5/16" x 3/4"	£1.91	Add to
007	112691115/0	HEX-HEAD SCREW M8 x 40	£2.06	Add to
008	112540260/0	INNER TOOTHED WASHER M8	£2.06	Add to
009	112154210/0	SELF-LOCK WINGED NUT M8 DIN 6927	£2.06	Add to
014	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
015	112540260/0	INNER TOOTHED WASHER M8	£2.06	Add to
016	182750010/0	MUFFLER	£117.75	Add to
017	112360425/0	SQUARE NUT M8	£2.18	Add to
018	382598009/2	MUFFLER GUARD [B&S]	£35.71	Add to
019	112792611/0	SCREW TE M8x16 UNI 5739 ACC.8.8	£2.06	Add to
020	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
024	112154210/0	SELF-LOCK WINGED NUT M8 DIN 6927	£2.06	Add to
025	112735108/1	TELF-FORM SCREW 3/8" X 1¼" UNC	£2.57	Add to
041	112791213/1	SCREW M6 X 18	£1.74	Add to
042	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
043	118736113/0	SOLENOID	£39.22	Add to
044	9743-5121-32	LOCK NUT 5/16"	£1.79	Add to
045	118564861/2	RED RUBBER TERMINAL COVER	£7.10	Add to
046	125065017/0	MOTOR/SOLENOID CONNECT CABLE	£9.82	Add to
061	182000200/1	THROTTLE CABLE	£23.79	Add to
062	125943012/0	FLANGED SCREW M4 x 10 WZ	£2.06	Add to
064	325592000/1	LEVER KNOB	£2.32	Add to
065	112726388/0	CROSS-HEAD SCREW M4X12	£2.06	Add to
066	112290800/0	HEXAGON NUT M4 UNI 5588 ACC.6S	£2.06	Add to
