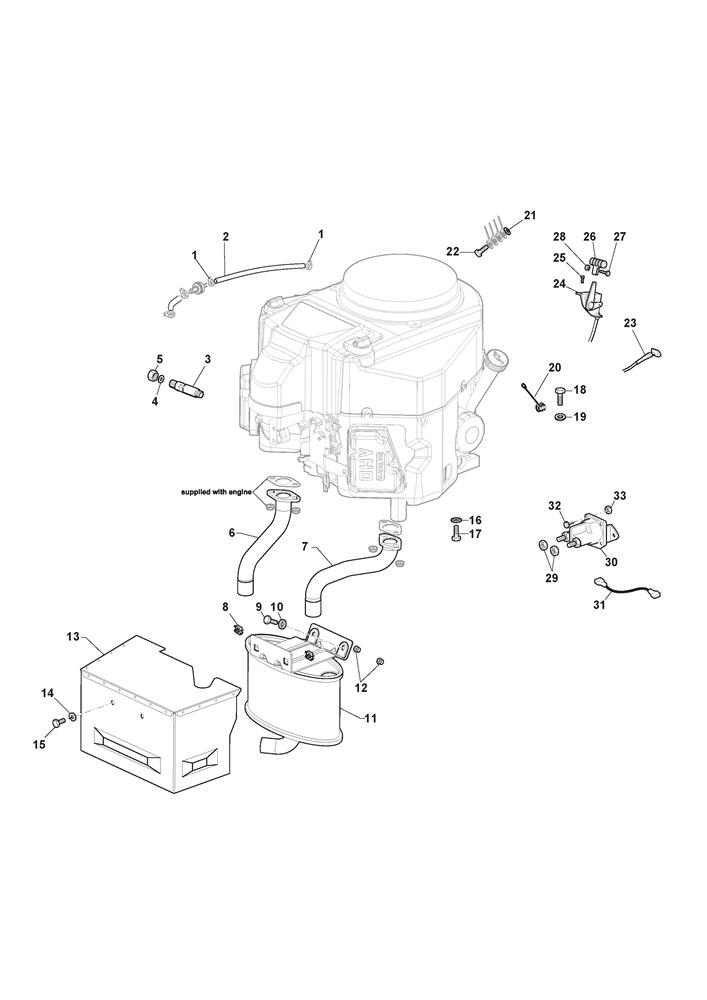

ENGINE - KAWASAKI FS 481 V

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118375051/1CABLE CLAMP B&S [GREEN]£1.91 Add to
002325869057/0FUEL TUBE L=1000£20.72 Add to
003125598050/0OIL DISCHARGE TUBE£8.04 Add to
004118401001/1OIL DRAIN SEAL£2.06 Add to
005118737849/0OIL DRAIN PLUG£2.47 Add to
006118738256/0R/H EXHAUST PIPE£16.80 Add to
008112360425/0SQUARE NUT M8£2.18 Add to
009112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
010112540260/0INNER TOOTHED WASHER M8£2.06 Add to
011182750014/0DOUBLE-CYLINDER MUFFLER£170.61 Add to
012112500094/0SEMI-HEXAGONAL RIVET NUT M8£2.47 Add to
013382598065/0MUFFLER GUARD£76.59 Add to
014112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
015112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
016112540070/0EXTERNAL TOOTHED WASHER M10£2.06 Add to
018112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
019112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
020127430562/1SPRING£2.06 Add to
021112540260/0INNER TOOTHED WASHER M8£2.06 Add to
022112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
023125090001/2CHOKE CONTROL CABLE£19.62 Add to
024182000201/2THROTTLE CABLE£26.69 Add to
025125943012/0FLANGED SCREW M4 x 10 WZ£2.06 Add to
026325592000/1LEVER KNOB£2.32 Add to
027112726388/0CROSS-HEAD SCREW M4X12£2.06 Add to
028112290800/0HEXAGON NUT M4 UNI 5588 ACC.6S£2.06 Add to
0299743-5121-32LOCK NUT 5/16"£1.79 Add to
030118736113/0SOLENOID£39.22 Add to
031125065017/0MOTOR/SOLENOID CONNECT CABLE£9.82 Add to
032112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
033112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
