GRASS-CATCHER HIGH END - 260 LT

Parts list

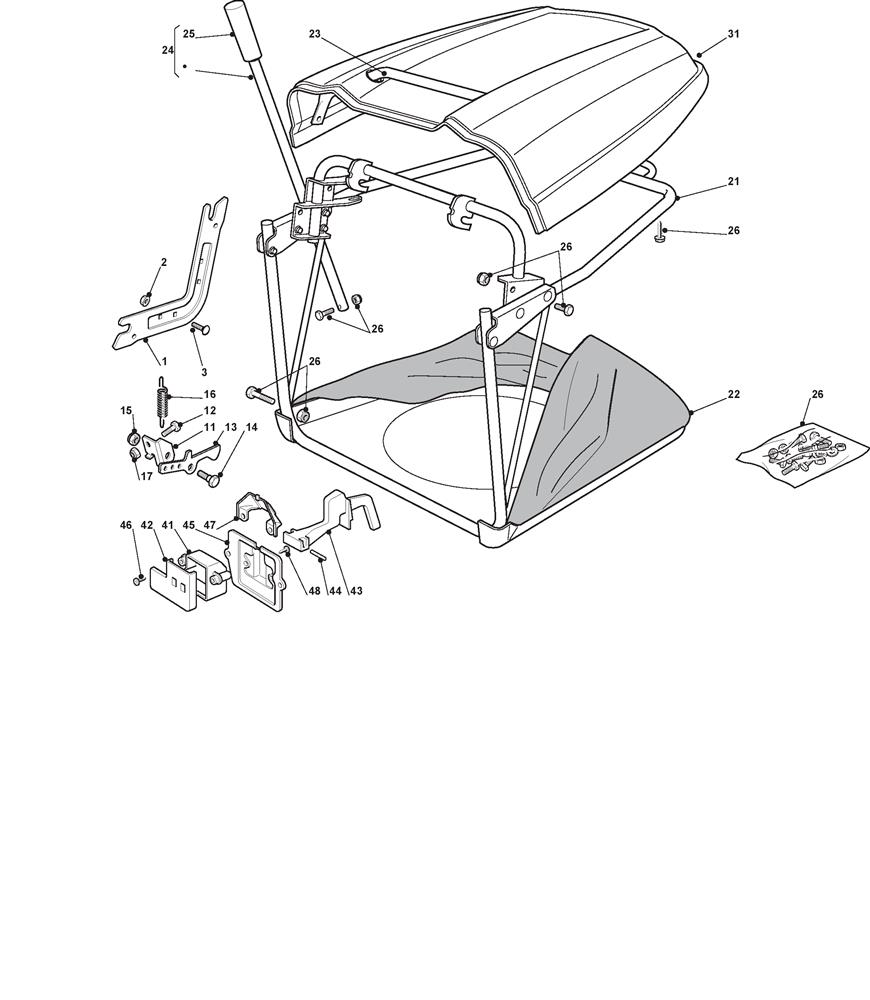

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325785275/0GRASSCATCHER SUPPORT BRACKET£11.18 Add to
002112818690/0SCREW M8X20 UNI 5732 WO/NUT 8.8 BZ£1.49 Add to
003112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
011325755031/2CLAMP PIN SUPPORT BRACKET£5.46 Add to
012112789000/0SCREW TE M5 x 12£2.06 Add to
013325774315/1GRASSCATCHER LOWER HOOKING CLAMP£4.37 Add to
014125510080/2CLAMP PIN£1.79 Add to
015112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
016122450432/0TENSION SPRING£2.06 Add to
017112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
021382800111/0GRASSCATCHER FRAME ASSEMBLY£205.11 Add to
022182105973/0GRASSCATCHER BAG NJ 92-102cm£143.37 Add to
023382394003/0FRONT GRASSCATCHER HANDLE£20.49 Add to
024382869023/0TIPPING LEVER£28.68 Add to
025125394508/0KNOB£4.52 Add to
026382180048/0SCREW ASSEMBLY KIT [GRASSCATCHER]£7.51 Add to
031325110319/0GRASSCATCHER TOP [YELLOW]£105.21 Add to
031325110320/0GRASSCATCHER COVER [RED]£107.93 Add to
031325110342/0GRASSCATCHER TOP [GREY]£116.17 Add to
031325110413/0GRASSCATCHER COVER BLACK 901510 NJ92 HE£107.93 Add to
041125600041/0MICRO PROTECTION COVER£2.32 Add to
042125600042/0MICRO PROTECTION COVER£3.41 Add to
043125318124/0MICRO CONTROL LEVER£2.32 Add to
044112400030/0PIN D=3 L=30£1.91 Add to
045325785272/1MICRO SWITCH COVER£2.47 Add to
046112728440/0SELF-TAPPING SCREW 4.8 X 13£1.79 Add to
047125600048/0MICRO SWITCH COVER£2.06 Add to
048112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
