BRAKE AND GEARBOX CONTROLS

Parts list

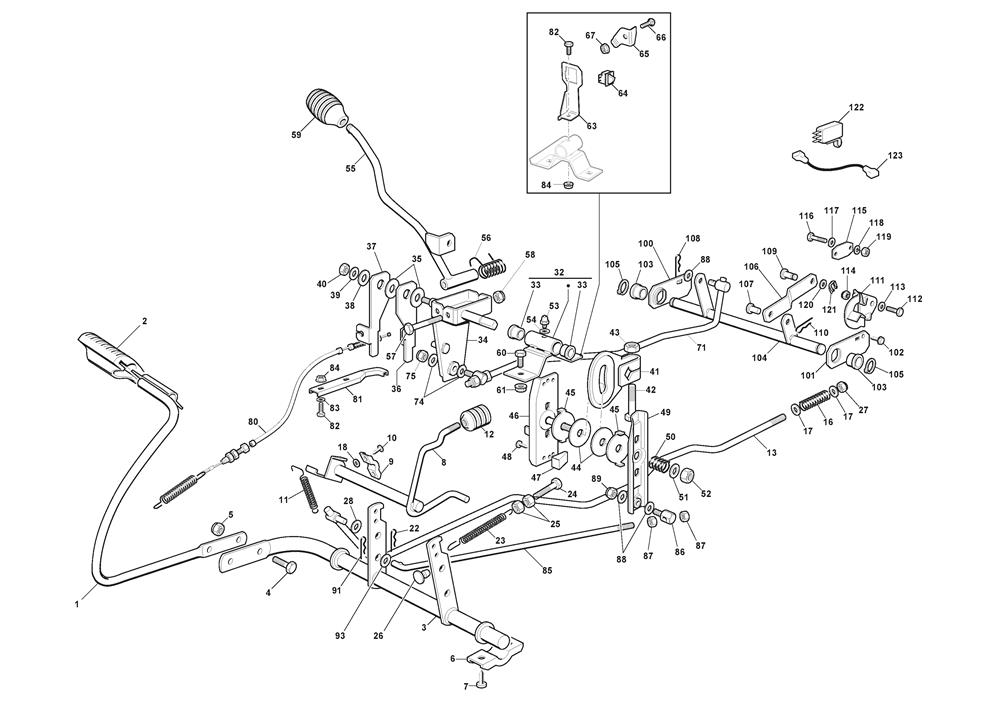

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001384503001/0BRAKE PEDAL ASSEMBLY£24.95 Add to
002125110267/0BRAKE PEDAL COVER£4.23 Add to
003384001015/1BRAKE PEDAL FULCRUM AXLE£43.23 Add to
004112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
005112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
006327546015/2WZ FLAT FULCR.AXLE FIX PLATE£2.06 Add to
007112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
008384001011/2PARKING BRAKE AXLE£12.77 Add to
009325547049/0AXLE FIXING PLATE£3.55 Add to
010112731601/0SELF-TAP SCREW 4.8 x 16£2.32 Add to
011127430552/0SPRING£2.06 Add to
012127395050/1BLACK BRAKE KNOB RIDER/TCJ£3.40 Add to
013384002088/0BRAKE CONTROL ROD£37.08 Add to
016127430588/0SPRING£7.51 Add to
017112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
018112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
022124487997/0SPRING CLIP D=1.8£2.06 Add to
023125430210/1BRAKE SPRING£3.00 Add to
024122943005/0SCREW£2.87 Add to
025112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
026127275000/0RUBBER GROMMET FOR BRAKE PEDAL£3.55 Add to
027112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
028325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
032384773568/1BRACKET£41.16 Add to
033127045080/0BUSH£5.60 Add to
034384773561/1CONTROL LEVER BRACKET£45.26 Add to
035322672151/0ANTI-FRICTION WASHER 12.2 x 30 x 0.8£1.91 Add to
036327772101/0CLAMP PLATE£2.87 Add to
037327772103/0CLAMP PLATE£2.47 Add to
038322672152/0ANTI-FRICTION WASHER 8.2 x 30 x 0.8£1.91 Add to
039112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
040112155010/0SELF-LOCKING NUT M8 A-LOK ACC.6S£2.47 Add to
041327734055/0BRACKET£3.41 Add to
042112794900/0HEX-HEAD SCREW M10 x 50£2.06 Add to
043112155020/0SELF-BINDING NUT M10£2.06 Add to
044127158000/0CLUTCH WASHER£21.26 Add to
045327670053/0WASHER£2.06 Add to
046384773565/0CLUTCH BRACKET ASSEMBLY£17.18 Add to
047127063020/0CLUTCH CONTROL CAM£2.06 Add to
048112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
049384773563/0CLUTCH CONTROL LEVER£6.69 Add to
050127430560/0CLUTCH SPRING£15.69 Add to
051325670008/1ANTI-FRICTION WASHER 10.8 x 19 x 0.8£2.06 Add to
052112155020/0SELF-BINDING NUT M10£2.06 Add to
053112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.06 Add to
054112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
055384317101/0SPEED CONTROL LEVER£30.26 Add to
056125430226/0DRIVE CONTROL LEVER SPRING WZ TCJ£2.18 Add to
057112692050/0HEX-HEAD SCREW£1.91 Add to
058112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
059182394508/0GEAR CONTROL KNOB [BLACK]£8.73 Add to
060112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
061112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
063327787111/0MICRO SWITCH BRACKET£2.06 Add to
064119410623/0MICRO SWITCH N.C.£7.92 Add to
065327063025/0MICRO SWITCH BRACKET£2.06 Add to
066112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
067112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
071384002092/0CONTROL ROD ASSEMBLY£35.71 Add to
074325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
075112155010/0SELF-LOCKING NUT M8 A-LOK ACC.6S£2.47 Add to
080184207101/1CLUTCH RETURN CABLE£34.35 Add to
081327772105/0CLAMP PLATE£2.06 Add to
082112791400/0SCREW TE M6x20 UNI 5739 ACC.4.8£1.79 Add to
083112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
084112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
085127034074/0CLUTCH DRIVING ROD£20.58 Add to
086125510040/2PIN£7.11 Add to
087112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
088325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
089112155010/0SELF-LOCKING NUT M8 A-LOK ACC.6S£2.47 Add to
091124487997/0SPRING CLIP D=1.8£2.06 Add to
093325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
100327546059/0RIGHT AXLE SUPPORT PLATE£5.32 Add to
101327546061/0LEFT AXLE SUPPORT PLATE£5.32 Add to
102112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
103125040614/0AXLE BUSH£2.06 Add to
104384001029/0DRIVE CONTROL AXLE£21.82 Add to
105112608900/0CIRCLIP D=14£1.79 Add to
106327034089/0CONNECTING ROD£12.96 Add to
107127510111/0FULCRUM PIN£2.47 Add to
108124487997/0SPRING CLIP D=1.8£2.06 Add to
109125510085/1WZ REVERSE GEAR PEDAL PIN TC£2.06 Add to
110124487997/0SPRING CLIP D=1.8£2.06 Add to
111327063023/0NEUTRAL SWITCH CAM£4.91 Add to
112112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
113112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
114112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
115327546019/0WZ MICRO NEUTRAL FIX PLATE£1.79 Add to
116112735602/0"SELF-FORMING SCREW M3 x 20 ""TAPTITE""£2.06 Add to
117112540020/0EXTERNAL TOOTHED WASHER M4£2.06 Add to
118112581100/0WASHER GROWER M3 UNI 1751 WZ£1.79 Add to
119112290791/0HEXAGON NUT M3 UNI 5588 ACC.6S£2.06 Add to
120112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
121112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
122119410609/1LCNEUTRAL KEDU SWITCH [HYDRO]£28.90 Add to
123125065025/0ADAPTER CABLE£9.00 Add to
