BODYWORK

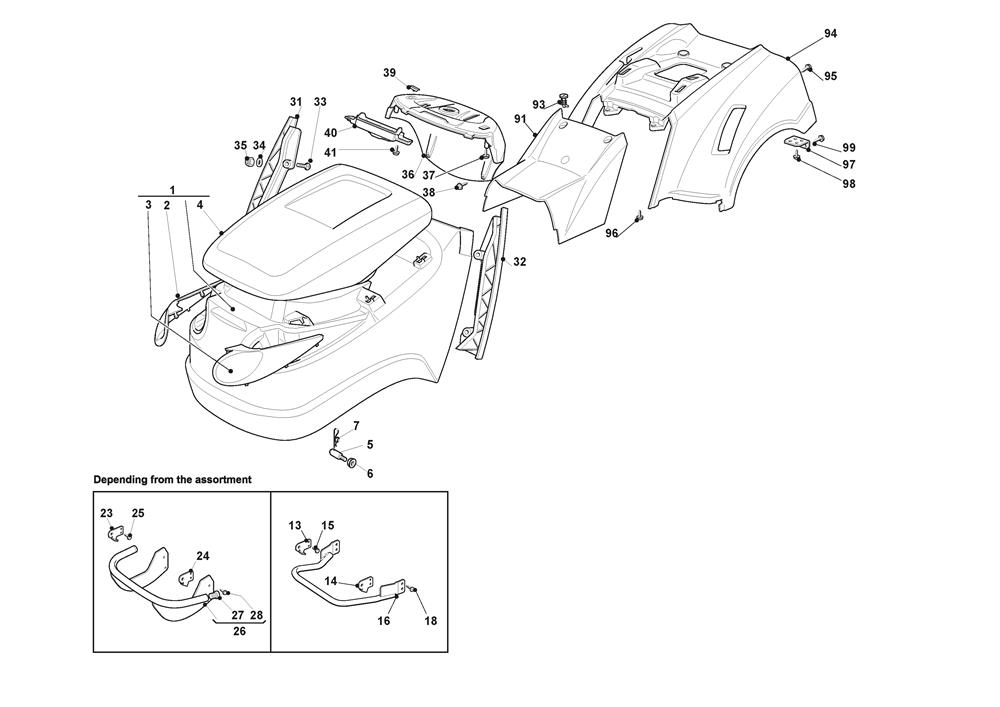

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382076970/1ENGINE HOOD [GREEN]£293.23 Add to
002325410891/0HEADLIGHTS R/H GRILL£9.28 Add to
003325410892/0HEADLIGHTS L/H GRILL£9.28 Add to
004325076940/0UPPER ENGINE HOOD [GREEN]£71.46 Add to
005125510068/0BONNET FULCRUM PIN£2.06 Add to
006112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
007124487998/0R CLIP D=2£2.06 Add to
013325547109/2RIGHT/LEFT HOOKING PLATE£5.32 Add to
014325547109/2RIGHT/LEFT HOOKING PLATE£5.32 Add to
015112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
016382869033/0FRONT BUMPER BAR£38.44 Add to
018112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
023325547159/1PLATE£5.05 Add to
024325547159/1PLATE£5.05 Add to
025112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
026382869027/0FRONT BUMPER BAR£99.65 Add to
027118737860/0END CAP D=40£2.06 Add to
028112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
031325599012/0RIGHT DASHBOARD SUPPORT£7.36 Add to
032325599013/0LEFT DASHBOARD SUPPORT£7.23 Add to
033112815221/0SCREW M6 x 35£1.79 Add to
034112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
035112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
037112728440/0SELF-TAPPING SCREW 4.8 X 13£1.79 Add to
038112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
039125260000/0ANTI-VIBRATION RUBBER GROMMET£3.41 Add to
040325600074/0PC BOARD COVER£9.07 Add to
041112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
091325110364/0CENTRAL COVER (GREEN)£36.01 Add to
093125580020/2SPRING TENSIONED SCREW£7.23 Add to
094325110344/0WHEELS COVER [GREEN]£101.13 Add to
095112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
096112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
097325755041/0ANGLE BRACKET£2.06 Add to
098112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
099112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
