GUARDS AND CONVEYOR

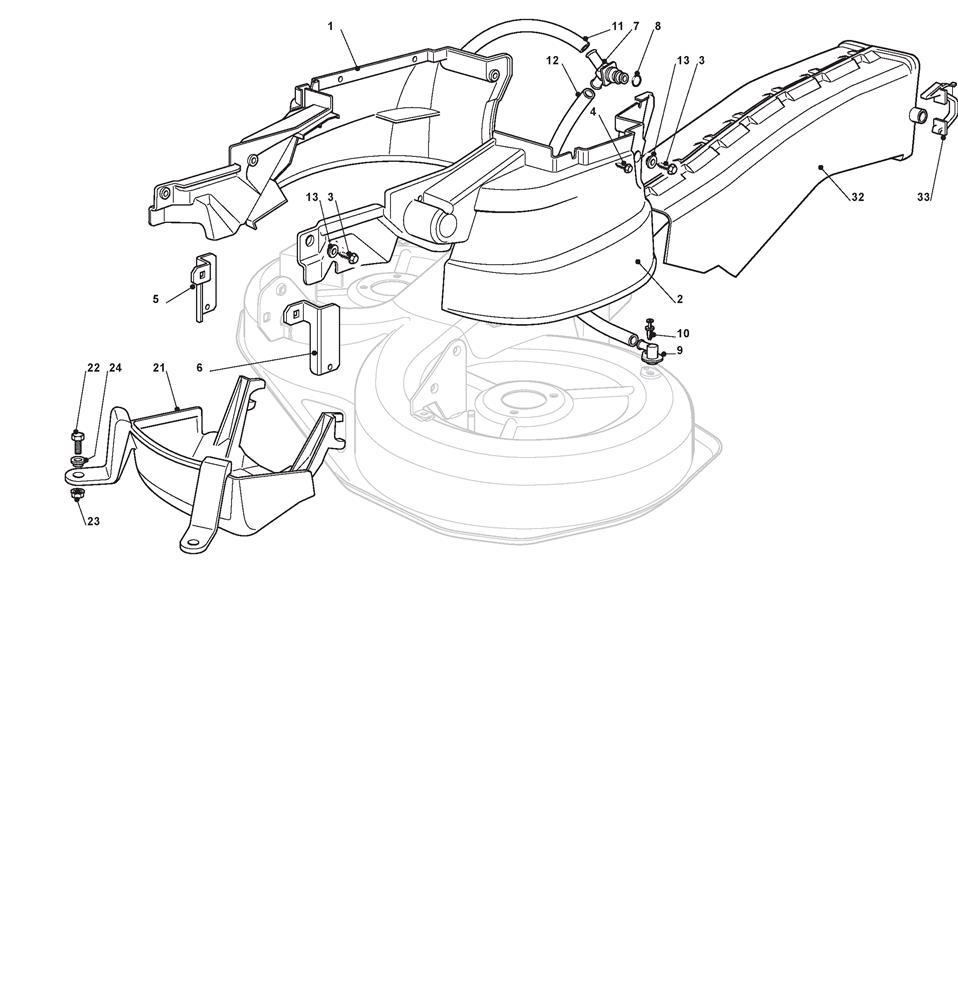

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325060121/2RIGHT BELT PROTECTION GUARD [BLACK]£80.45 Add to
002325060122/1LEFT BELT PROTECTION GUARD [BLACK]£48.06 Add to
003112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
004112728535/0SCREW TC SLZ 5.2 x 25£2.06 Add to
005325774381/0RIGHT CLAMP BRACKET£4.66 Add to
006325774383/0LEFT CLAMP BRACKET£4.66 Add to
007325033066/0CUTTING DECK WASHING FITTING£3.69 Add to
008112000970/0CIRCLIP D=12£2.02 Add to
009325033065/0CUTTING DECK WASHING FITTING£2.87 Add to
010112500030/0PLASTIC RIVET 2494 AA01£2.06 Add to
011325869069/0WASHING TUBE L=980£19.54 Add to
012325869068/0WASHING TUBE L=350£9.14 Add to
013325160039/0SPACER£2.06 Add to
021325060127/0FRONT RIGHT/LEFT BELT GUARD£15.06 Add to
022112791400/0SCREW TE M6x20 UNI 5739 ACC.4.8£1.79 Add to
023112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
024325160039/0SPACER£2.06 Add to
032382108008/1DISCHARGE CHUTE ASSEMBLY£66.43 Add to
033325774373/0RELEASE CLAMP£3.41 Add to
