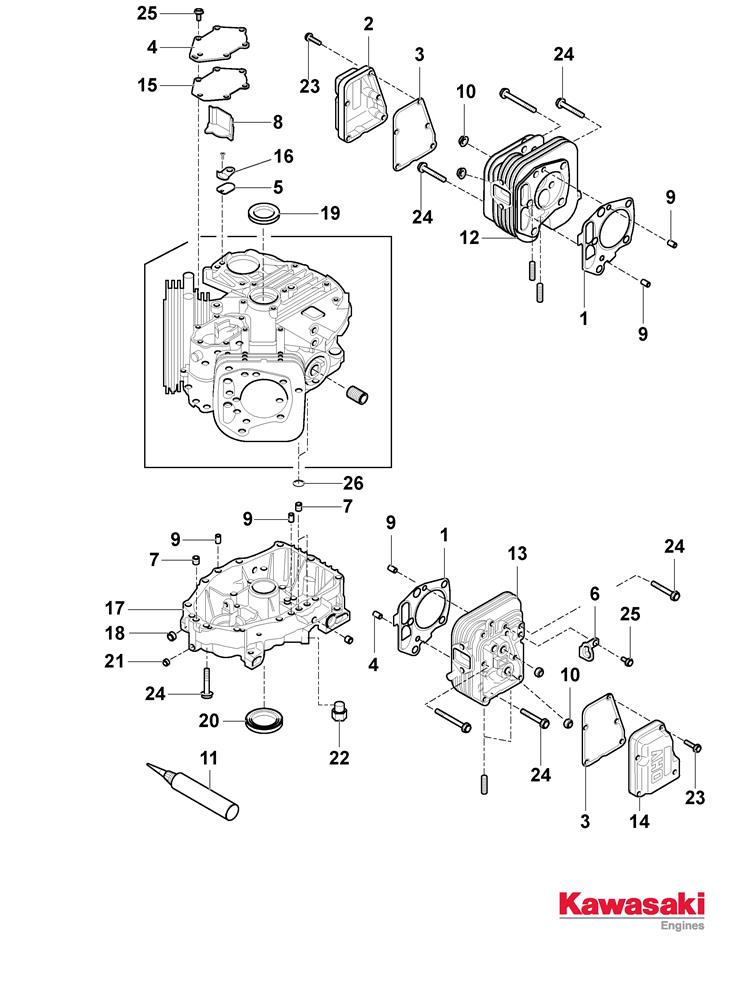

CYLINDER/CRANKCASE

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
003118550963/0GASKET,CASE-ROCKER£12.30 Add to
010118551072/0SEAL-OIL,RVC2 6X11X10.2£16.50 Add to
015118550968/0GASKET,BREATHER£20.45 Add to
020118551075/0SEAL-OIL,38X62X8MTCLV£33.39 Add to
023112735405/0FLANGED SELF-TAP SCREW D=6 x 30£2.06 Add to
024112691400/0HEX-HEAD SCREW M8 X 50£1.76 Add to
025112735699/0SCREW M6 x 12£1.79 Add to
