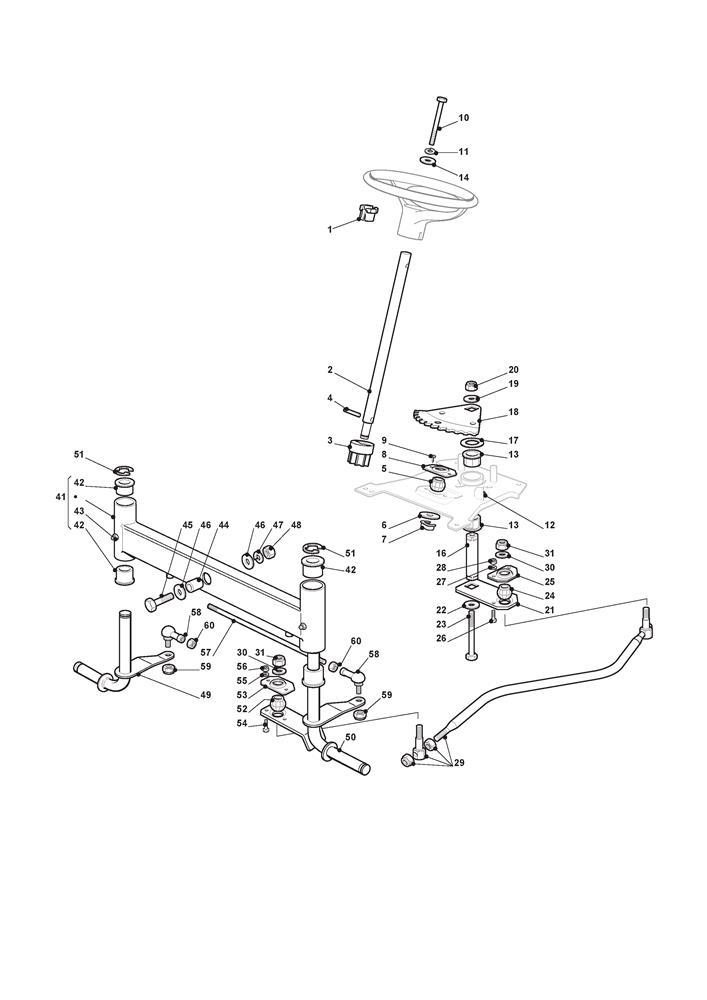

STEERING 15"

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	325038004/0	BUSH (BLACK)	£3.65	Add to
002	125520014/0	STEERING COLUMN D=16	£42.05	Add to
003	127570050/0	STEERING PINION	£10.95	Add to
004	112622650/0	CYLINDRICAL PIN D=6X35	£2.95	Add to
005	325743000/0	JOINT	£3.00	Add to
006	112521370/0	WASHER M12 13 24 x 2.5	£2.06	Add to
007	112436030/0	PIN PLATE	£1.91	Add to
008	325785213/1	STEERING JOINT SUPPORT	£2.32	Add to
009	112729600/0	SELF-TAP SCREW TE 5.5 x 16	£2.06	Add to
010	112691800/0	HEX-HEAD SCREW M8 x 60	£2.06	Add to
011	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
012	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
013	325040624/0	STEERING BUSH	£2.06	Add to
014	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
014	122671651/0	WASHER 8.3 x 22 x 2	£2.32	Add to
016	125510092/0	PIN	£16.22	Add to
017	125670019/0	ANTI-FRICTION WASHER 40 x 19.5 x 0.8	£3.15	Add to
018	325735513/0	STEERING QUADRANT	£12.14	Add to
019	112523080/0	WASHER M10 11 x 30 x 2.5	£2.06	Add to
020	112155020/0	SELF-BINDING NUT M10	£2.06	Add to
021	325318205/0	STEERING CONTROL LEVER	£5.19	Add to
022	112523080/0	WASHER M10 11 x 30 x 2.5	£2.06	Add to
023	112794985/0	SCREW M10 x 120	£3.69	Add to
024	325743000/0	JOINT	£3.00	Add to
025	325785213/1	STEERING JOINT SUPPORT	£2.32	Add to
026	112791213/1	SCREW M6 X 18	£1.74	Add to
027	112521330/0	WASHER M6 6.4 X 12 X 1.6	£2.06	Add to
028	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
029	382000539/1	STEERING ROD ASSEMBLY 15"	£58.87	Add to
030	112523070/0	WASHER M8 8.5 x 32 x 2.5	£2.06	Add to
031	112155010/0	SELF-LOCKING NUT M8 A-LOK ACC.6S	£2.47	Add to
041	382034024/1	FRONT AXLE ASSEMBLY 15"	£177.43	Add to
042	125034002/1	BUSH	£3.96	Add to
043	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
044	125160016/1	EQUALIZER SPACER	£5.46	Add to
045	112692695/0	HEX-HEAD SCREW M12 x 60	£2.06	Add to
046	112523100/0	WASHER M12 14 x 36 x 3	£2.06	Add to
047	112587100/0	WASHER M12	£2.06	Add to
048	112295300/0	HEXAGON NUT M12	£2.06	Add to
049	382230363/0	RIGHT STUB AXLE	£69.78	Add to
050	382230365/0	LEFT STUB AXLE	£74.78	Add to
051	112001000/0	CIRCLIP ID=15 TH=1.5	£1.83	Add to
052	325743000/0	JOINT	£3.00	Add to
053	325785213/1	STEERING JOINT SUPPORT	£2.32	Add to
054	112791213/1	SCREW M6 X 18	£1.74	Add to
055	112521330/0	WASHER M6 6.4 X 12 X 1.6	£2.06	Add to
056	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
057	125840023/0	TIE ROD	£12.82	Add to
058	122746609/0	ANGULAR JOINT M10	£18.53	Add to
059	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
060	112295200/0	HEXAGON NUT M10	£1.79	Add to
