TRANSMISSION UNIT, HYRO-GEAR T2-ADBF-2X3C-1RX1

Parts list

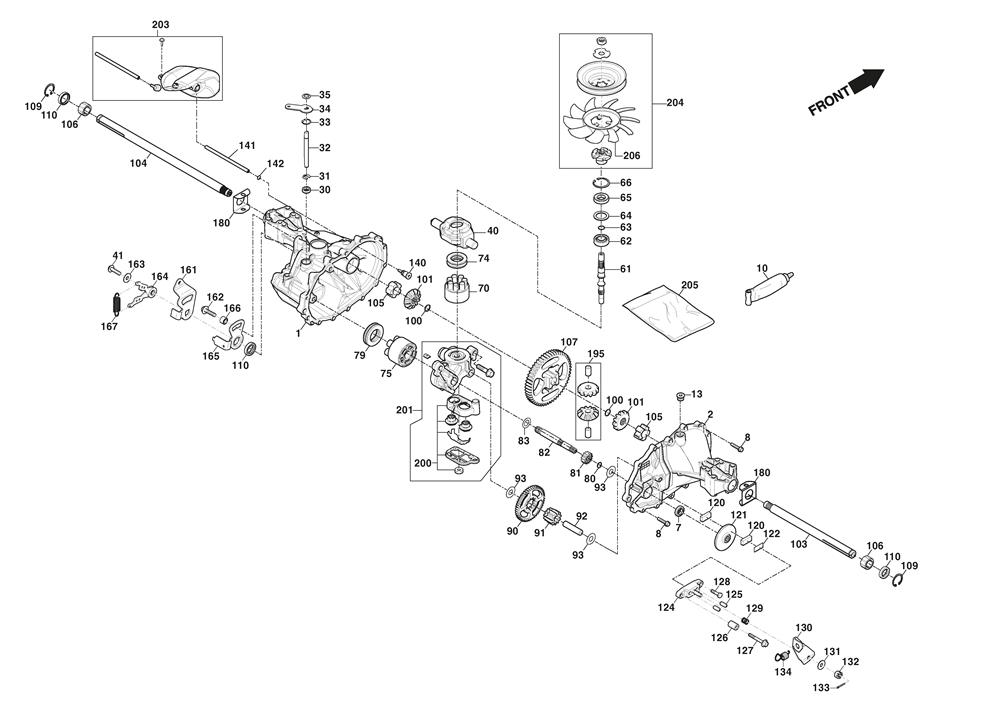

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
007118870111/0OIL SEAL 0.50 X 1.00 X 0.25£10.93 Add to
030118870079/0SEAL 0.375 X 0.75 X 0.25£10.09 Add to
040118870090/0SWASH PLATE£102.48 Add to
061118870092/0INPUT DRIVE SHAFT£91.58 Add to
065118870124/0SEAL KIT£72.18 Add to
070118870125/0PUMP BLOCK ASSEMBLY£132.33 Add to
074118870093/0THRUST BEARING 27 x 47 x 14£41.16 Add to
0751139-2063-01CYLINDER BLOCK£232.10 Add to
0791139-2021-01THRUST BEARING£43.89 Add to
100118870072/0RETAINING RING£6.27 Add to
103118870114/0AXLE SHAFT 0.75 X 11.39 (R/H KEY)£124.05 Add to
104118870113/0AXLE SHAFT 0.75 x 16.99 (L/H KEY)£211.50 Add to
106118870085/0AXLE BUSH£8.44 Add to
1101139-2204-01SEAL£8.87 Add to
120118870066/0BRAKE PAD£8.19 Add to
121118870101/0BRAKE£19.90 Add to
130118870088/0BRAKE ARM£45.26 Add to
134118870078/0SPRING£6.95 Add to
166118870104/0BUSH 0.315 X 0.618 X 0.390£5.46 Add to
167118870089/0EXTENSION SPRING£9.54 Add to
180118870112/0SPRING PLATE£13.47 Add to
195118870126/0GEARS & PINS KIT£58.25 Add to
201118870127/0CENTER SECTION KIT£367.61 Add to
203118870122/0EXPANSION TANK KIT£65.69 Add to
204118802723/0HYDRO FAN KIT£135.19 Add to
205118870124/0SEAL KIT£72.18 Add to
206118870130/0HYDRO GEAR FAN [T2-ADBF-2X3C-17X1]£24.74 Add to
