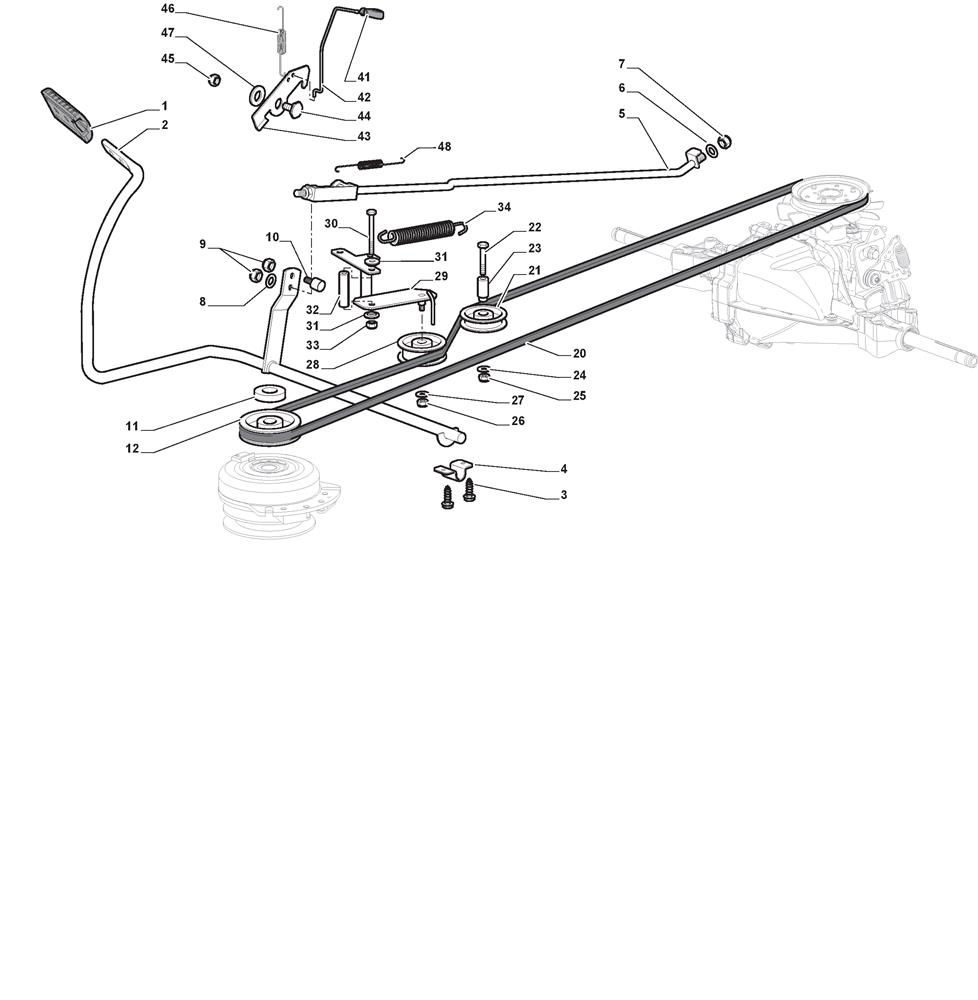

BRAKE AND GEARBOX CONTROLS

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325110409/0BRAKE PEDAL COVER£7.63 Add to
002382000641/1BRAKE PAD ASSEMBLEY (FROM 01 APRIL 2019)£52.58 Add to
003112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
004325547231/1LIFTING DECK AXLE PLATE£4.78 Add to
005382000576/0BRAKE CONTROL ROD ASSEMBLY£26.18 Add to
006112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
007112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
008325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
009112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
010125510166/0PARKING BRAKE PIN£3.83 Add to
011125160059/0PULLEY SPACER L=25.8£6.69 Add to
012125601577/0PULLEY£46.61 Add to
020135062003/1TRAPEZOIDAL BELT A95 EPDM£44.84 Add to
021325601599/0PULLEY (STEEL) (BEARING HOLE D 15)£19.62 Add to
022112691400/0HEX-HEAD SCREW M8 X 50£1.76 Add to
023125160107/0SPACER MP£2.74 Add to
024112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
025112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
026112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
027112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
028125601554/0PULLEY£26.18 Add to
029382318245/1PULLEY LEVER£19.85 Add to
030112691600/0HEX-HEAD SCREW M8x70 UNI 5737 ACC.8.8£1.91 Add to
031125038021/0GUIDE PULLEY BUSH£1.58 Add to
032125160027/0SPACER£2.87 Add to
033112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
034125430262/0SPRING£6.14 Add to
042125033113/0PARKING BRAKE ROD£3.83 Add to
043325253011/1PARKING BRAKE HOOK£4.10 Add to
044122524970/3SEAT FULCRUM PIN FROM S/N 88153£2.06 Add to
045112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
046125430213/0SPRING£2.06 Add to
047112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
048125430269/2SPRING£3.48 Add to
