CUTTING PLATE LIFTING

Parts list

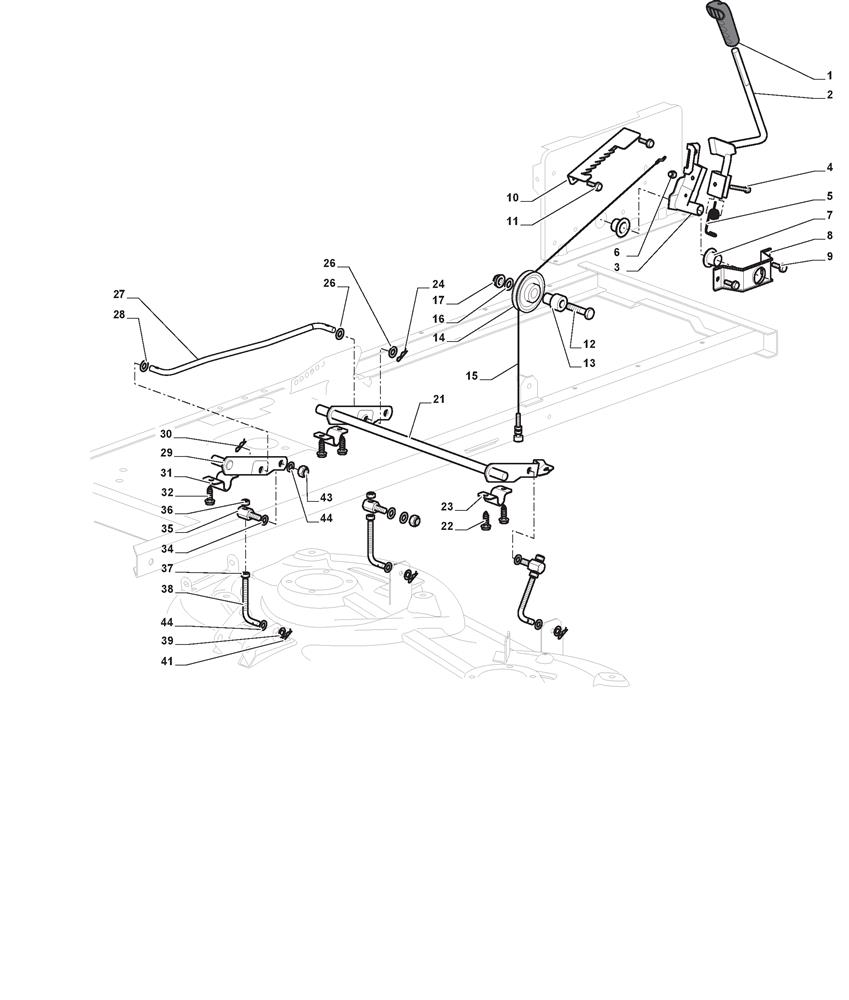

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325394533/0KNOB£3.55 Add to
002382318229/0DECK HEIGHT ADJUST LEVER£16.63 Add to
003382318231/1LIFTING AXLE£7.36 Add to
004112674700/0SCREW M6 X 35£2.06 Add to
005125430261/0SPRING£1.79 Add to
006112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
007325038006/0LIFTING AXLE BUSH£2.06 Add to
008325785297/0AXLE SUPPORT£6.55 Add to
009125943009/0HEX-HEAD SCREW M8 x 1.25£2.06 Add to
010325735515/0LIFTING QUADRANT£8.45 Add to
011125943009/0HEX-HEAD SCREW M8 x 1.25£2.06 Add to
012112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
013125040636/1BUSH£3.15 Add to
014125601579/0LIFTING DECK PULLEY£3.15 Add to
015382004620/0LIFTING CABLE£15.27 Add to
016112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
017112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
021382318295/1AXLE ASSEMBLY£24.95 Add to
022112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
023325547231/1LIFTING DECK AXLE PLATE£4.78 Add to
024124487997/0SPRING CLIP D=1.8£2.06 Add to
026325670010/0ANTI-FRICTION WASHER 9.3 x 19 x 0.8£1.79 Add to
027125033109/0CONNECTION ROD (Not As Drawing Now Solid Rod)£9.70 Add to
028325670010/0ANTI-FRICTION WASHER 9.3 x 19 x 0.8£1.79 Add to
029382318293/1FULCRUM LEVER ( FROM 1ST APRIL 2019)£12.54 Add to
030124487997/0SPRING CLIP D=1.8£2.06 Add to
031325547231/1LIFTING DECK AXLE PLATE£4.78 Add to
032112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
034325670008/1ANTI-FRICTION WASHER 10.8 x 19 x 0.8£2.06 Add to
035125510170/0HEXAGONAL PIN BOLT£5.73 Add to
036112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
037112295200/0HEXAGON NUT M10£1.79 Add to
038125840012/1CUTTING DECK TIE ROD£14.73 Add to
039325670008/1ANTI-FRICTION WASHER 10.8 x 19 x 0.8£2.06 Add to
041124487998/0R CLIP D=2£2.06 Add to
043112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
044112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
