BRAKE AND GEARBOX CONTROLS - HYDROGEAR

Parts list

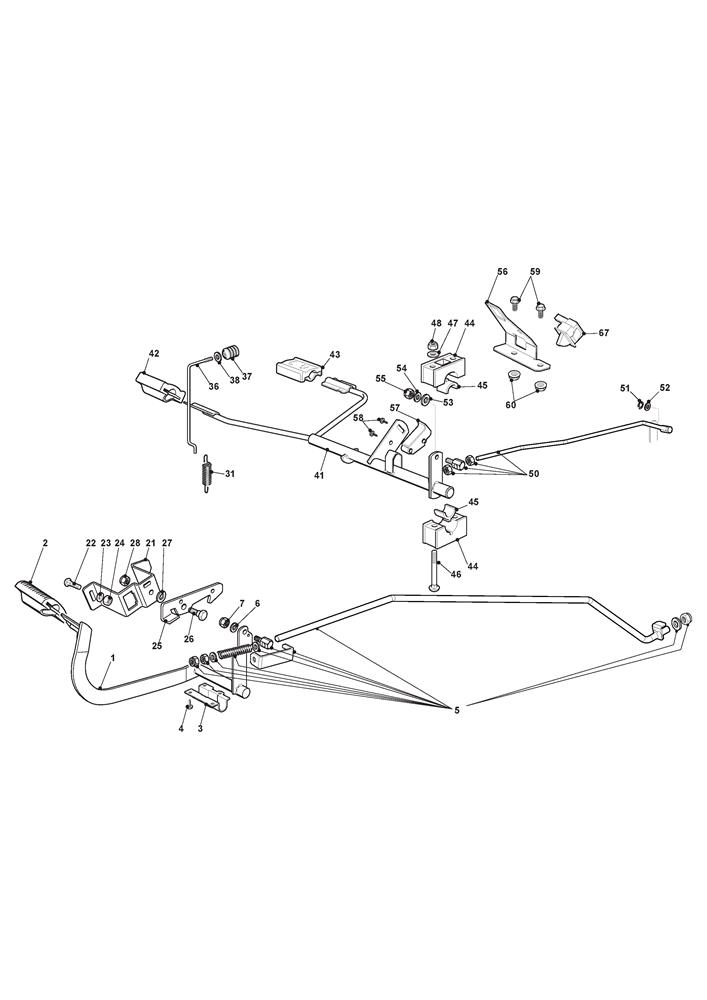

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382500011/2BRAKE PEDAL£70.68 Add to
002325110416/0PEDAL COVER [BLACK]£9.41 Add to
003325547081/2BRACKET£5.46 Add to
004112731601/0SELF-TAP SCREW 4.8 x 16£2.32 Add to
005382000682/0BRAKE DRIVE ROD£49.34 Add to
006112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
007112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
021325785143/1SUPPORT BRACKET£4.91 Add to
022112815210/0SCREW M6 x 20£2.06 Add to
023112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
024112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
025325253001/0HOOK£4.52 Add to
026122524970/3SEAT FULCRUM PIN FROM S/N 88153£2.06 Add to
027325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
028112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
031125430213/0SPRING£2.06 Add to
036125033034/0PARKING BRAKE ROD£5.60 Add to
038112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
041382000391/1FEED/REVERSE GEAR CONTROL AXLE£84.77 Add to
042325110417/0FRONT PEDAL COVER [BLACK]£9.41 Add to
043325110418/0REAR PEDAL COVER [BLACK]£9.41 Add to
044325785354/0UPPER BRACKET£2.47 Add to
045325034003/0SPACER£2.18 Add to
046112815271/0SCREW M6 x 70£2.06 Add to
047112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
048112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
050382000681/0TC SD HYG ADVANCE ROD ASSY£42.53 Add to
051112000940/0CIRCLIP D=7£2.06 Add to
052325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
053112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
054112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
055112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
056325785481/0MICRO SWITCH BRACKET [W/O CRUISE]£7.92 Add to
057325060034/1REVERSE SWITCH CAM£2.47 Add to
058112735404/0FLANGED HEX-HEAD SCREW D5 x 16 WZ£2.06 Add to
059112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
060112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
067119410623/0MICRO SWITCH N.C.£7.92 Add to
