ELECTRICAL PARTS

Parts list

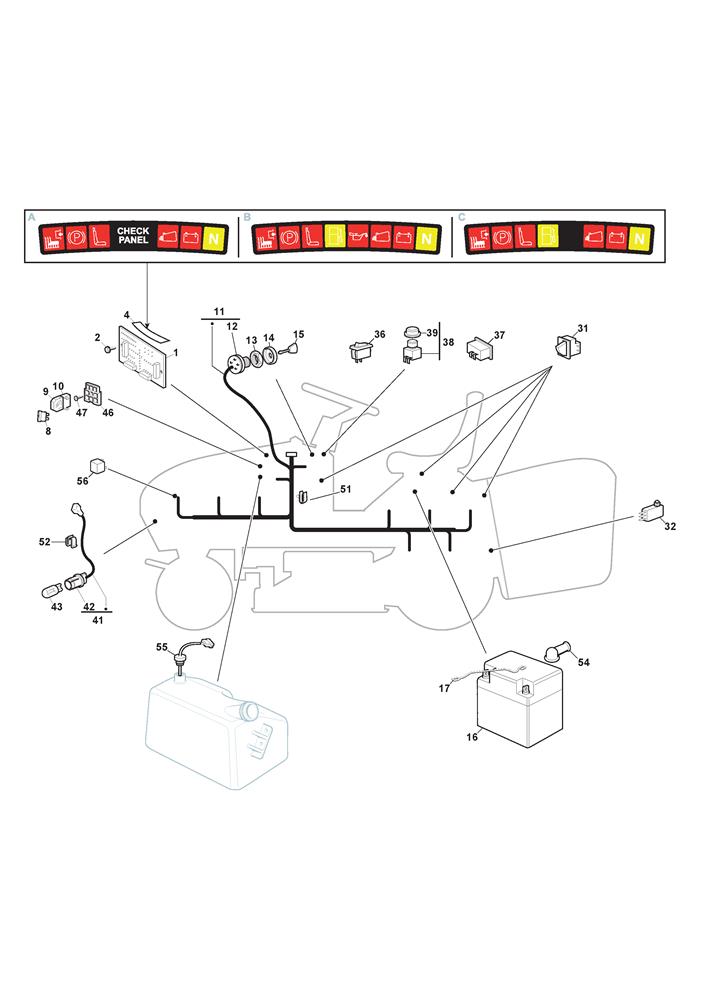

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001125722441/0PC BOARD TC (ISO)[ NO RETURNS ON THIS SPARE PART ]£116.96 Add to
002112735105/0SELF-TAP SCREW TE 3.5 x 16£2.06 Add to
004125420005/0CHECK CONTROL PANEL£9.96 Add to
008133340036/0FUSE 25A£2.06 Add to
008133340040/0FUSE 10A£2.47 Add to
009133215000/0FUSE HOLDER COVER£3.83 Add to
010133500007/0FUSE HOLDER£7.64 Add to
011182040238/0WIRING HARNESS [TC ISO]£222.14 Add to
012118450065/1STARTING SWITCH£32.99 Add to
013118400861/0LOCKING RING£5.32 Add to
014118565351/0LOCKING RING COVER£6.14 Add to
015118210016/1IGNITION KEY [PAIR]£13.17 Add to
016118120068/0BATTERY 12V 18AH£109.15 Add to
017125430230/0SPRING ROD£3.55 Add to
031119410622/1MICRO SWITCH N.O.£7.10 Add to
032119410605/1MICRO SWITCH£36.77 Add to
036118450084/0HEADLIGHT SWITCH£4.35 Add to
0379400-0384-01HOUR METER£94.31 Add to
038118450067/0CLUTCH SWITCH£21.26 Add to
039118203852/0CLUTCH SWITCH CAP£3.15 Add to
041182040073/0HEADLIGHTS CABLE£18.68 Add to
042133500030/0LAMP HOLDER£4.23 Add to
043118459100/0HEADLIGHT BULB£2.47 Add to
046133500010/1FUSE HOLDER PLATE£2.06 Add to
047112735170/0SCREW£1.95 Add to
051133320506/0CABLE CLIP£1.79 Add to
052133320504/0CABLE CLIP£2.06 Add to
054118564864/1RED RUBBER TERMINAL COVER£6.01 Add to
055125290000/0FUEL LEVEL INDICATOR£56.15 Add to
056133567000/0RELAY£13.91 Add to
