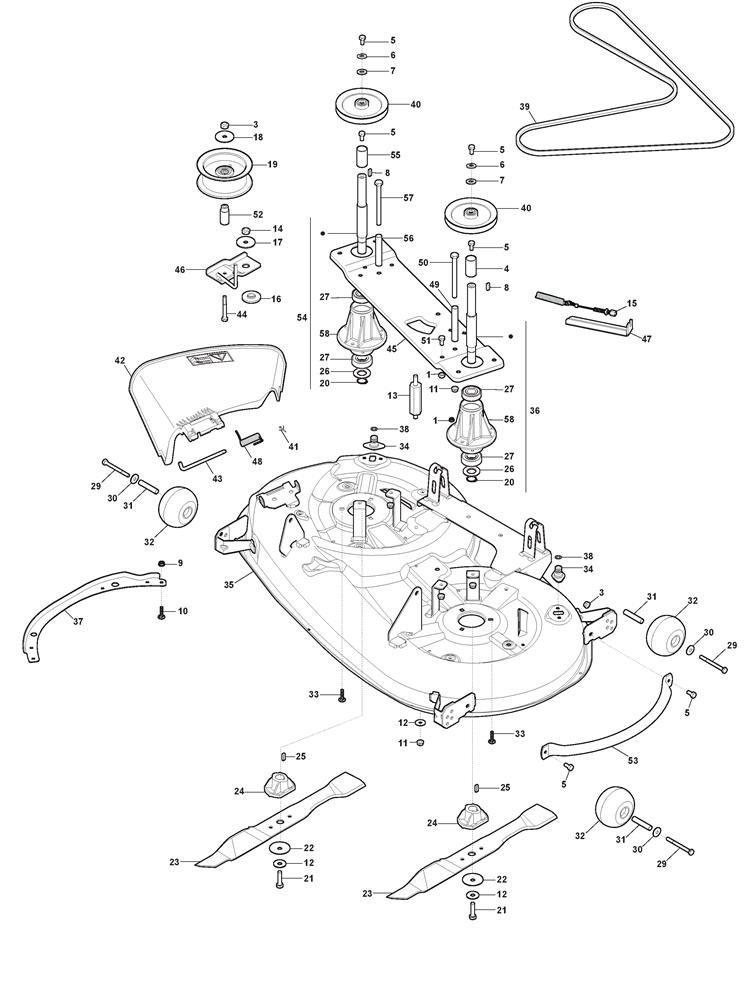

CUTTING PLATE

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
003112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
004125160092/0SPACER£4.82 Add to
005112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
006112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
007125670007/0FIXING WASHER£2.06 Add to
008112139480/0KEY 6x6x20 UNI6604-A 6.8£2.06 Add to
009112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
010112815200/0SCREW TTDQ M6X16£2.06 Add to
011112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
012112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
013125160091/0SPACER£9.41 Add to
014112155020/0SELF-BINDING NUT M10£2.06 Add to
015382004627/0BLADE ENGAGE CABLE MTR SD£29.30 Add to
016125040635/0BUSH£4.78 Add to
017125670022/0WASHER£2.06 Add to
018112524010/0WASHER M8 8.4 x 24 x 4£1.91 Add to
019382601520/0PULLEY D=107 H45£41.97 Add to
020112609260/0CIRCLIP D=20£2.02 Add to
021112735694/0HEX-HEAD SCREW 3/8" X 1 1/2" 24 UNF£1.97 Add to
022122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
023182004357/0MULCHING BLADE 108cm£31.63 Add to
023182004370/0WINGED BLADE L=532 mm SD108£32.99 Add to
024125463200/0BLADE BOSS£9.82 Add to
025112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
026325160501/1DUST COVER WASHER£2.06 Add to
029112692050/0HEX-HEAD SCREW£1.91 Add to
030112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
031125510072/1WHEEL SPACER£2.18 Add to
032182700001/0ANTI-SCALP WHEEL D=100mm£5.87 Add to
033112818700/0SCREW M8 x 25£2.81 Add to
034119035000/0O RING 10.77 x 2.62£5.46 Add to
035382565085/1CUTTER DECK CASING MTR108 SD [BLACK]£654.37 Add to
036382207200/2LCMAIN BLADE SHAFT ASSEMBLY£97.61 Add to
037325547259/1SIDE DECK PLATE SD108£15.41 Add to
038325033086/0WASHING CONNECTION SD 98£2.06 Add to
039135062028/0DECK DRIVE BELT A84 MTR108 SD£62.70 Add to
040125601571/0BLADE SHAFT PULLEY£32.99 Add to
041112141418/0SPLIT PIN 3 x 20£1.76 Add to
042325600087/2DEFLECTOR [BLACK]£31.17 Add to
043125510073/0FULCRUM PIN£8.04 Add to
044112691600/0HEX-HEAD SCREW M8x70 UNI 5737 ACC.8.8£1.91 Add to
045325547423/0TRANSMISSION PLATE£42.53 Add to
046382300011/0BLADES IDLER PLATE£13.64 Add to
047325774659/0IDLER SPRING LEVER£10.23 Add to
048125430242/1SPRING£3.64 Add to
049125160096/0SPACER£7.63 Add to
050112794985/0SCREW M10 x 120£3.69 Add to
051112818690/0SCREW M8X20 UNI 5732 WO/NUT 8.8 BZ£1.49 Add to
052125160095/0SPACER£6.42 Add to
053382650051/0SIDE REINFORCEMENT PLATE£34.35 Add to
054382207214/0R/H BLADE HOUSING ASSEMBLY£110.66 Add to
055125160098/0SPACER£4.42 Add to
056125160097/0SPACER£5.71 Add to
057112794980/0SCREW 10 x 100£2.06 Add to
058125207200/0BLADE SHAFT SUPPORT£52.06 Add to
