GUARDS

Parts list

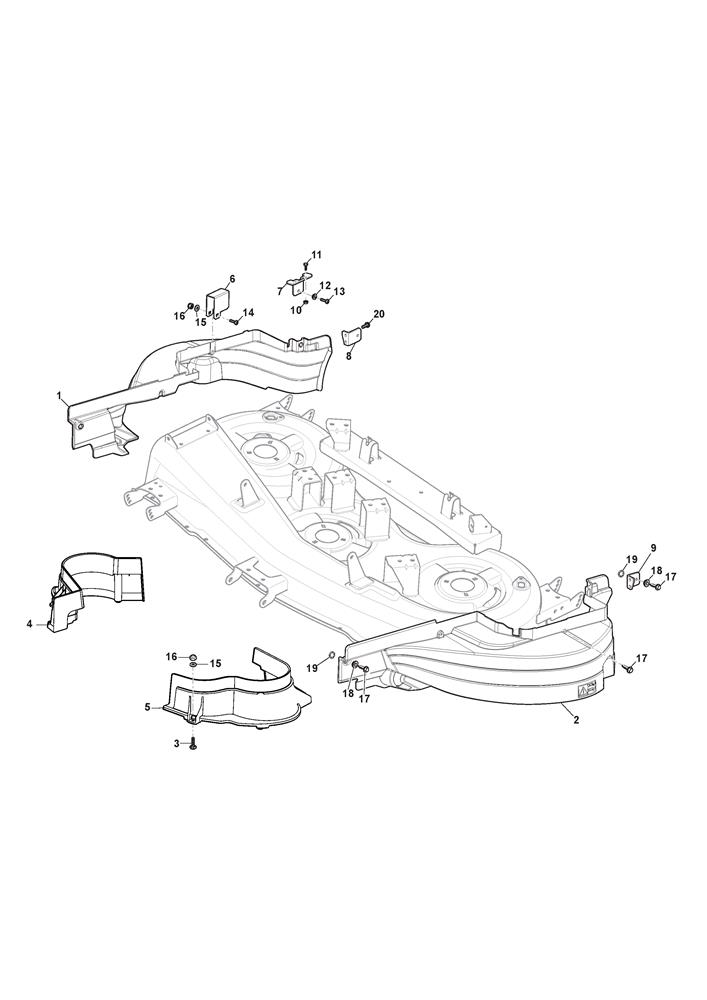

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325060183/0R/H EXTERNAL BELT COVER TO SN 436656£77.95 Add to
001A325060183/1R/H EXTERNAL BELT COVER FROM SN 436657£42.53 Add to
002325060184/0L/H EXTERNAL BELT COVER TO SN 436656£77.95 Add to
002A325060184/1L/H EXTERNAL BELT COVER FROM SN 436657£42.53 Add to
003112815210/0SCREW M6 x 20£2.06 Add to
004325060181/1R/H INTERNAL BELT COVER£27.27 Add to
005325060182/0L/H INTERNAL BELT COVER TO SN 431073£27.27 Add to
005A325060182/1L/H INTERNAL BELT COVER FROM SN 431074£26.18 Add to
006325774267/0BRACKET£7.57 Add to
007325774423/0CENTRAL BRACKET£3.15 Add to
008325774425/0REAR R/H BRACKET£3.00 Add to
009325774421/0REAR L/H BRACKET£3.00 Add to
010112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
011112788910/0HEX-HEAD SCREW M5 x 16£2.06 Add to
012325160039/0SPACER£2.06 Add to
013112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
014112815255/0CUP SQUARE BOLT M6 x 20£1.79 Add to
015112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
016112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
017125943014/0FLANGED SCREW CARTER MOA FIXING£9.03 Add to
018325670008/1ANTI-FRICTION WASHER 10.8 x 19 x 0.8£2.06 Add to
019112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
020112729601/1SELF-TAP SCREW TE FL 5.5 x 16£2.06 Add to
