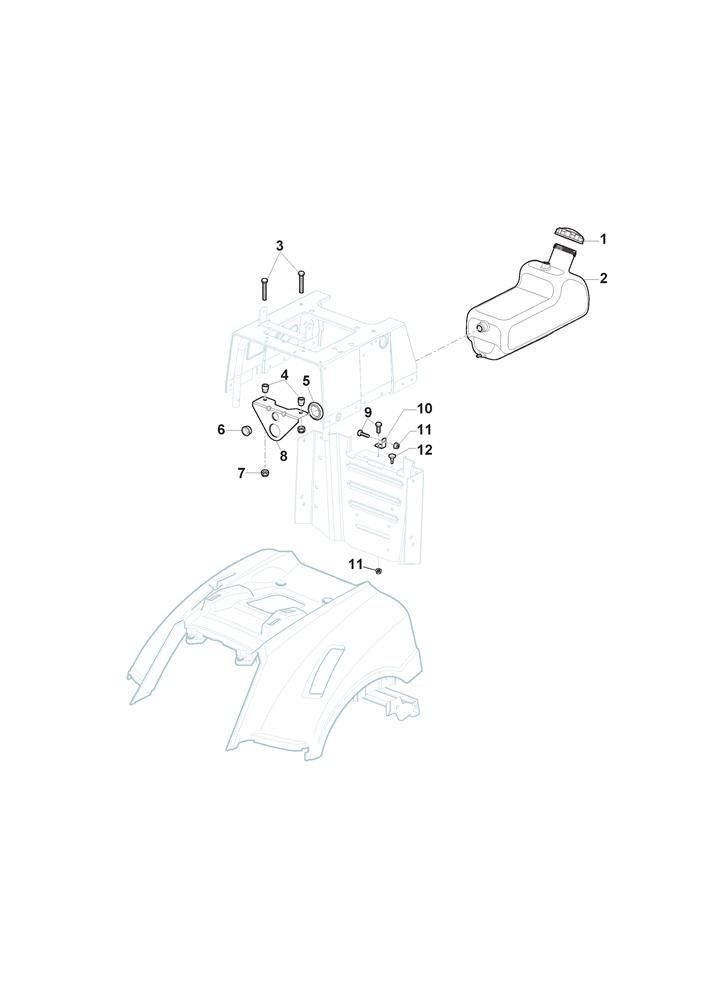

REAR FUEL TANK - 15LT

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	137793050/0	FUEL TANK CAP	£44.00	Add to
002	325735129/0	FUEL TANK [15 LITRES]	£110.66	Add to
003	112691115/0	HEX-HEAD SCREW M8 x 40	£2.06	Add to
004	125160030/2	PULLEY SPACER	£6.47	Add to
005	325260012/0	RUBBER GROMMET	£6.95	Add to
006	325038022/0	BUSH	£2.06	Add to
007	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
008	325774685/0	SUPPORT BRACKET	£10.09	Add to
009	112791213/1	SCREW M6 X 18	£1.74	Add to
010	325547427/0	BRACKET	£3.83	Add to
011	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
012	127275000/0	RUBBER GROMMET FOR BRAKE PEDAL	£3.55	Add to
