GRASSCATCHER

Parts list

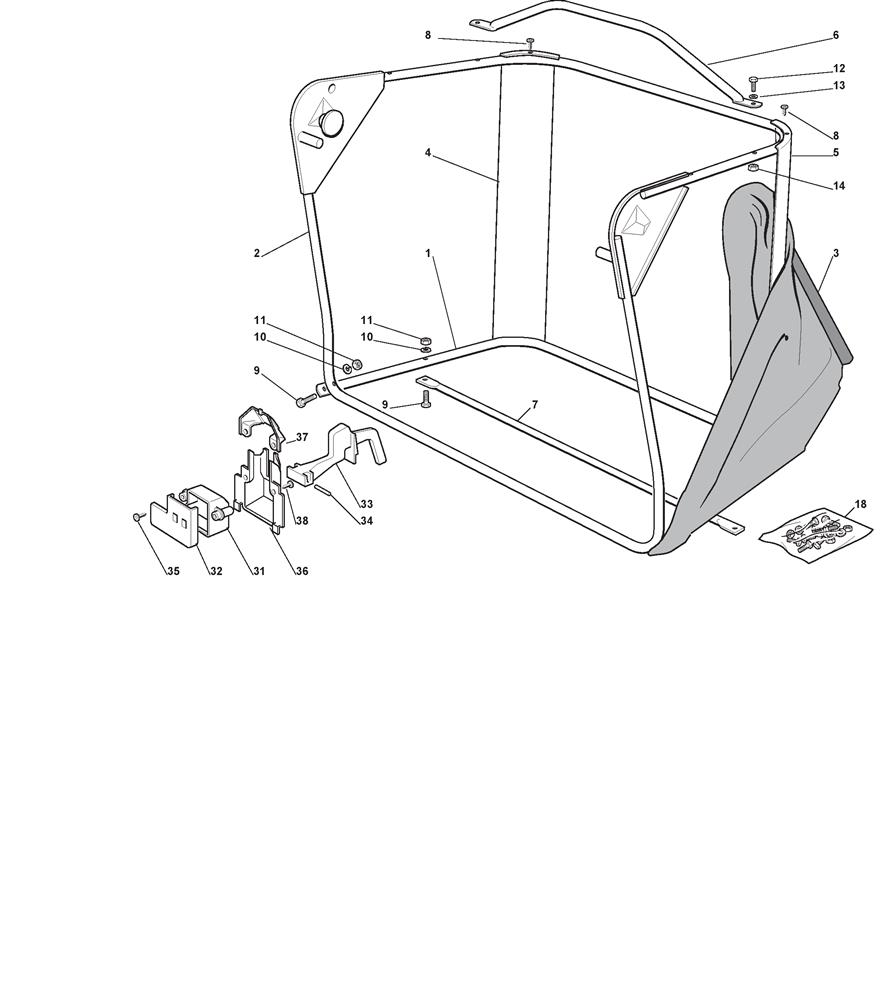

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001384801103/0LOWER GRASSCATCHER FRAME£21.67 Add to
002384801105/1UPPER GRASSCATCHER FRAME£84.77 Add to
003184106069/0GRASSCATCHER BAG 72cm£99.76 Add to
004327010205/0RIGHT ANGLE SUPPORT£14.27 Add to
005327010207/0LEFT ANGLE SUPPORT£14.27 Add to
006384869051/0GRASSCATCHER HANDLE [BLACK]£10.77 Add to
007384650100/1LOWER FRAME REINFORCEMENT BAR£10.65 Add to
008112729600/0SELF-TAP SCREW TE 5.5 x 16£2.06 Add to
009112674550/0SCREW TE M6 x 30£2.06 Add to
010112582100/0LOCK WASHER M6£2.06 Add to
011112292100/0HEXAGON NUT M6£1.47 Add to
012112674700/0SCREW M6 X 35£2.06 Add to
013112521331/0WASHER M6 6,4X12,5X1,6 BLACK£2.06 Add to
014112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
018384180180/0GRASSCATCHER SCREW OUTFIT£10.36 Add to
031125600041/0MICRO PROTECTION COVER£2.32 Add to
032125600042/0MICRO PROTECTION COVER£3.41 Add to
033125318124/0MICRO CONTROL LEVER£2.32 Add to
034112400030/0PIN D=3 L=30£1.91 Add to
035112728440/0SELF-TAPPING SCREW 4.8 X 13£1.79 Add to
036125600047/0MICRO SWITCH PROTECTION COVER£2.06 Add to
037125600048/0MICRO SWITCH COVER£2.06 Add to
038112728450/0SELF-TAP SCREW 4.8 x 19£2.81 Add to
