SEAT & STEERING WHEEL

Parts list

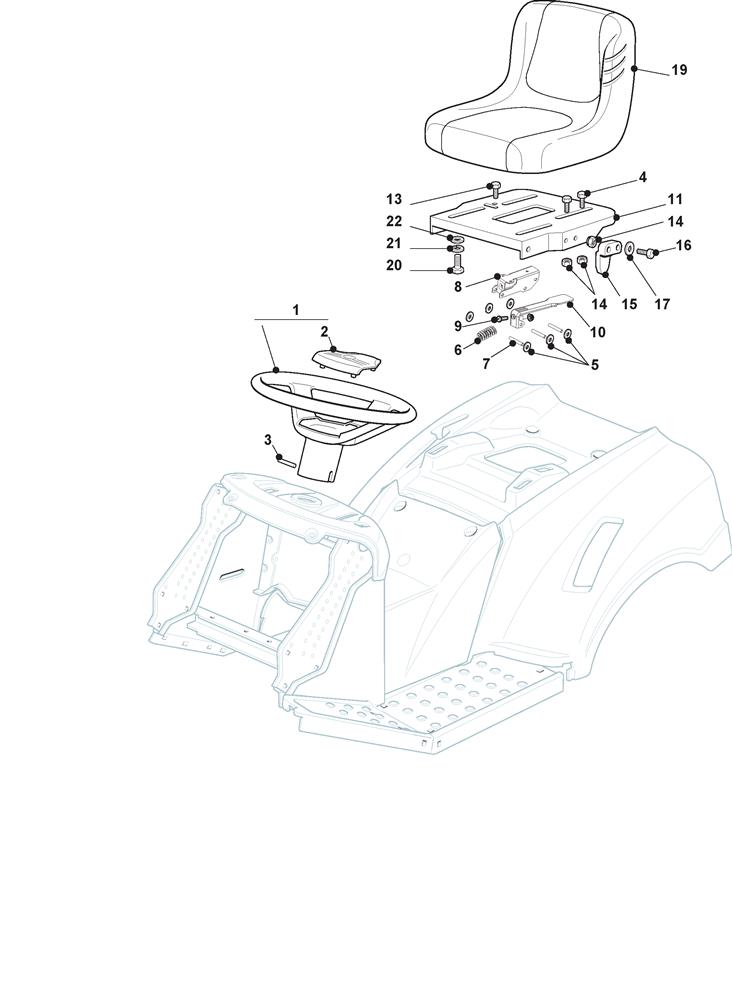

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001125961217/1STEERING WHEEL [BLACK]£93.73 Add to
002325580505/0CENTRAL STEERING WHEEL CAP£7.92 Add to
003112620250/0PIN 6 x 24£2.06 Add to
004112735661/0SCREW TCB TORX M6 x 10£2.06 Add to
005112604896/0STARLOCK WASHER D=6£2.06 Add to
006125430285/0SPRING£7.23 Add to
007122517866/0PIN£2.06 Add to
008325774575/0FULCRUM CLAMP£9.41 Add to
009112735661/0SCREW TCB TORX M6 x 10£2.06 Add to
010382318315/0SPRING LEVER£10.91 Add to
011325547033/2SEAT PLATE (ISO)£41.16 Add to
013112735661/0SCREW TCB TORX M6 x 10£2.06 Add to
014112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
015327063021/1MICRO SEAT OPERATION CAM£2.74 Add to
016112789100/0HEX-HEAD SCREW M5 x 30£2.06 Add to
017112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
019125722463/0SEAT£205.11 Add to
020112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
021112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
022112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
