CUTTING PLATE LIFTING

Parts list

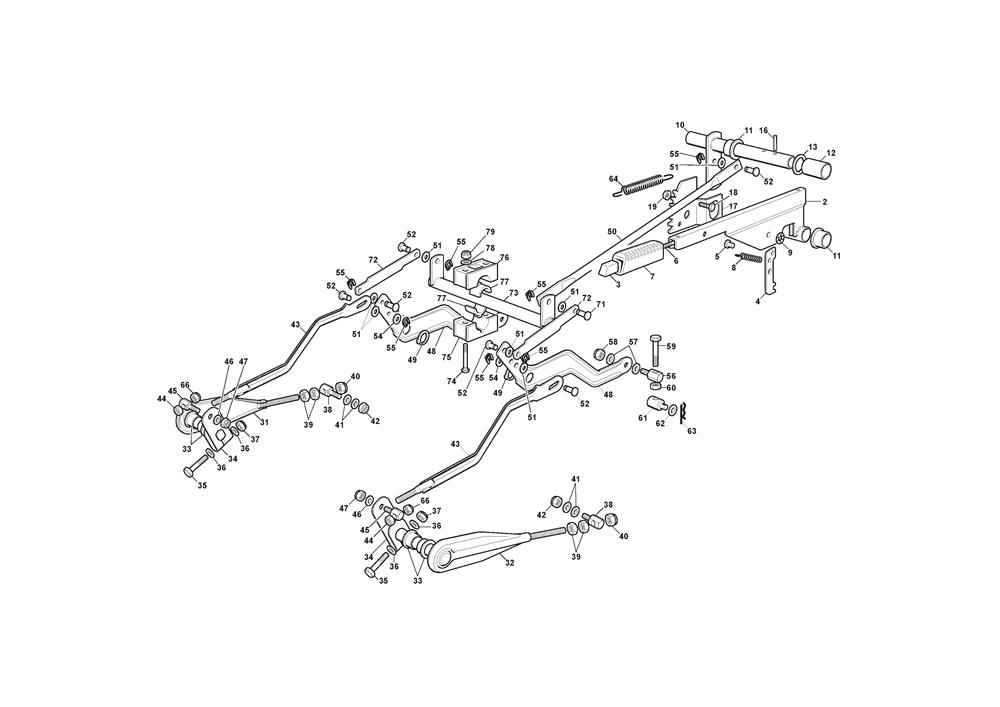

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	382318139/1	DECK LIFTING LEVER	£42.53	Add to
003	125605000/1	BUTTON	£2.74	Add to
004	325470901/1	DOG PLATE	£11.36	Add to
005	125510011/1	PIN	£2.06	Add to
006	125510011/1	PIN	£2.06	Add to
007	325394536/0	KNOB	£2.06	Add to
008	125430208/1	SPRING	£3.83	Add to
009	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
010	382000551/0	LIFTING AXLE	£24.41	Add to
011	122034523/0	BUSH	£2.06	Add to
012	125160025/1	SPACER	£6.55	Add to
013	322672153/0	ANTI-FRICTION WASHER 20.2 x 30 x 0.8	£2.06	Add to
016	112620206/0	PIN	£1.79	Add to
017	325735506/2	HEIGHT ADJUST QUADRANT	£21.35	Add to
018	112792611/0	SCREW TE M8x16 UNI 5739 ACC.8.8	£2.06	Add to
019	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
031	382318155/0	FRONT R/H FULCRUM LEVER	£25.75	Add to
032	382318157/0	FRONT L/H FULCRUM LEVER	£23.64	Add to
033	125040605/0	BUSH	£2.06	Add to
034	325318161/1	LEVER	£7.92	Add to
035	112691700/0	SCREW M8 x 55	£1.91	Add to
036	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
037	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
038	125510056/1	PIN	£4.78	Add to
039	112295200/0	HEXAGON NUT M10	£1.79	Add to
040	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
041	325670008/1	ANTI-FRICTION WASHER 10.8 x 19 x 0.8	£2.06	Add to
042	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
043	382000477/3	CONNECTING ROD	£17.80	Add to
044	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
045	125510055/1	PIN	£3.69	Add to
046	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
047	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
048	325318153/2	REAR CUTTER DECK LEVER	£12.40	Add to
049	112609255/0	CIRCLIP D=19	£2.06	Add to
050	325033071/0	CONNECTING ROD	£12.14	Add to
051	325670011/0	ANTI-FRICTION WASHER 8.2 x 19 x 0.8	£2.06	Add to
052	125510053/2	PIN	£2.06	Add to
054	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
055	112436050/0	PIN PLATE D=8 (EUROFIX FX70308PH)	£1.83	Add to
056	125510056/1	PIN	£4.78	Add to
057	325670008/1	ANTI-FRICTION WASHER 10.8 x 19 x 0.8	£2.06	Add to
058	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
059	112794980/0	SCREW 10 x 100	£2.06	Add to
060	112295200/0	HEXAGON NUT M10	£1.79	Add to
061	125510070/1	PIN	£5.46	Add to
062	112523090/0	WASHER M10 11 x 40 x 2.5	£1.91	Add to
063	124487998/0	R CLIP D=2	£2.06	Add to
064	125430218/1	DECK LIFT SPRING	£6.14	Add to
066	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£1.86	Add to
071	125510048/1	FIXING PIN	£2.32	Add to
072	325318223/0	CONNECTING LIFT LEVER	£7.10	Add to
073	382000585/0	CUTTING DECK LIFTING CONTROL AXLE	£35.98	Add to
074	112815271/0	SCREW M6 x 70	£2.06	Add to
075	325785355/0	LOWER BRACKET	£2.78	Add to
076	325785354/0	UPPER BRACKET	£2.47	Add to
077	325034003/0	SPACER	£2.18	Add to
078	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
079	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
