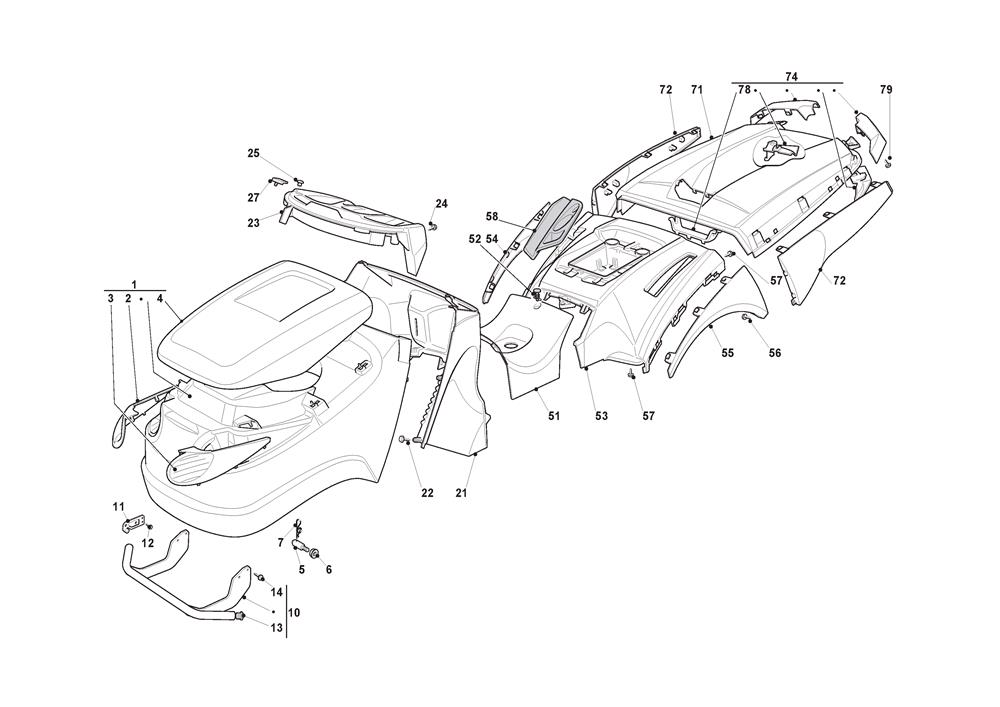

BODYWORK

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382076970/1ENGINE HOOD [GREEN]£293.23 Add to
002325410891/0HEADLIGHTS R/H GRILL£9.28 Add to
003325410892/0HEADLIGHTS L/H GRILL£9.28 Add to
004325076940/0UPPER ENGINE HOOD [GREEN]£71.46 Add to
005125510068/0BONNET FULCRUM PIN£2.06 Add to
006112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
007124487998/0R CLIP D=2£2.06 Add to
010382869039/1FRONT BUMPER BAR£124.05 Add to
011325547109/2RIGHT/LEFT HOOKING PLATE£5.32 Add to
012112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
013118737860/0END CAP D=40£2.06 Add to
014112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
021325785449/0DASHBOARD SUPPORT [GREY]£76.59 Add to
022112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
023325120269/0DASHBOARD [GREY] CRUISE CONTROL TX HE£43.89 Add to
024112728440/0SELF-TAPPING SCREW 4.8 X 13£1.79 Add to
025125120200/0CAP (OBSOLETE)£2.54 Add to
027125260000/0ANTI-VIBRATION RUBBER GROMMET£3.41 Add to
051325110509/0CENTRAL COVER [GREY]£46.06 Add to
052125580020/2SPRING TENSIONED SCREW£7.23 Add to
053325109788/0WHEELS COVER [GREEN]£114.74 Add to
054325109757/0LEFT WHEEL COVER [BLACK]£18.27 Add to
055325109758/0RIGHT WHEEL COVER [BLACK]£18.27 Add to
056112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
057112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
058325207184/1CUP HOLDER [BLACK]£24.95 Add to
071325110449/0GRASSCATCHER TOP (GREEN)£160.55 Add to
072382110254/0REAR WHEEL COVER KIT [TCP]£52.06 Add to
074382110300/1ANGULAR SUPPORTS KIT£38.44 Add to
078325394009/0GRASSCATCHER HANDLE [BLACK]£8.32 Add to
079112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
