BRAKE CONTROLS

Parts list

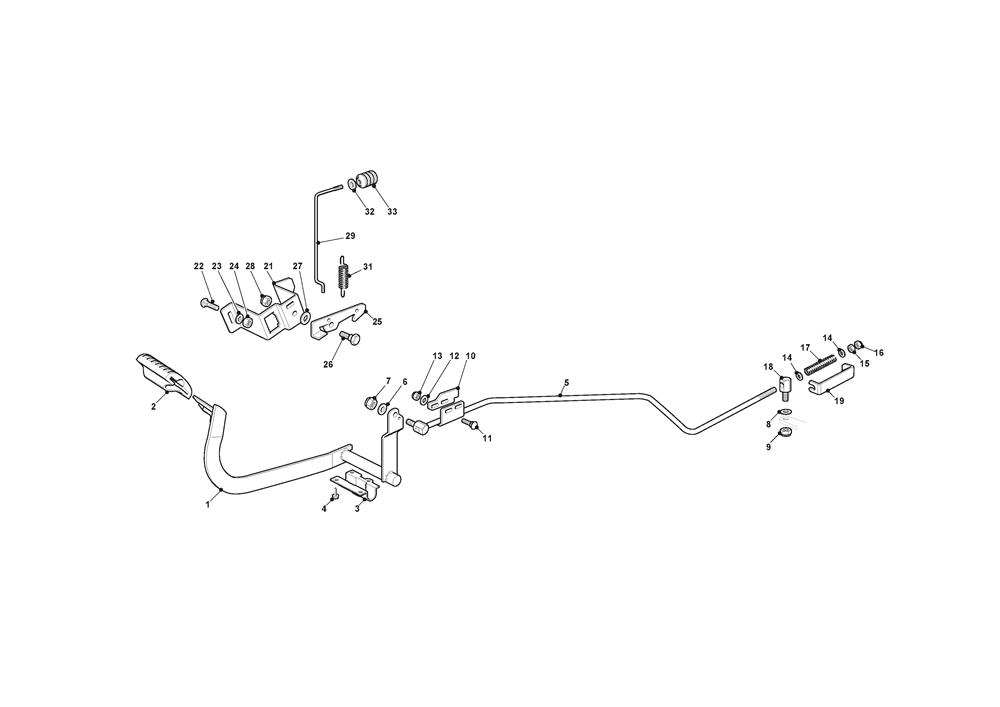

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382500041/0BRAKE PEDAL ASSEMBLY£95.67 Add to
002125110267/0BRAKE PEDAL COVER£4.23 Add to
003325547081/2BRACKET£5.46 Add to
004112731601/0SELF-TAP SCREW 4.8 x 16£2.32 Add to
005382000553/3BRAKE CONTROL ROD£75.59 Add to
006112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
007112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
008112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
009112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
010325547281/1SUPPORT PLATE£7.10 Add to
011112815210/0SCREW M6 x 20£2.06 Add to
012112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
013112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
014112295200/0HEXAGON NUT M10£1.79 Add to
015112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
016112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
017125430236/1WHITE ZINCED BRAKE ROD SPRING TC£2.06 Add to
018125510067/1PIN£4.78 Add to
019325774275/1CLAMP BRACKET£3.83 Add to
021325785143/1SUPPORT BRACKET£4.91 Add to
022112815210/0SCREW M6 x 20£2.06 Add to
023112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
024112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
025325253009/0HOOK£15.41 Add to
026122524970/3SEAT FULCRUM PIN FROM S/N 88153£2.06 Add to
027325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
028112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
029125033047/0BRAKE CONTROL ROD£7.78 Add to
031125430213/0SPRING£2.06 Add to
032112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
