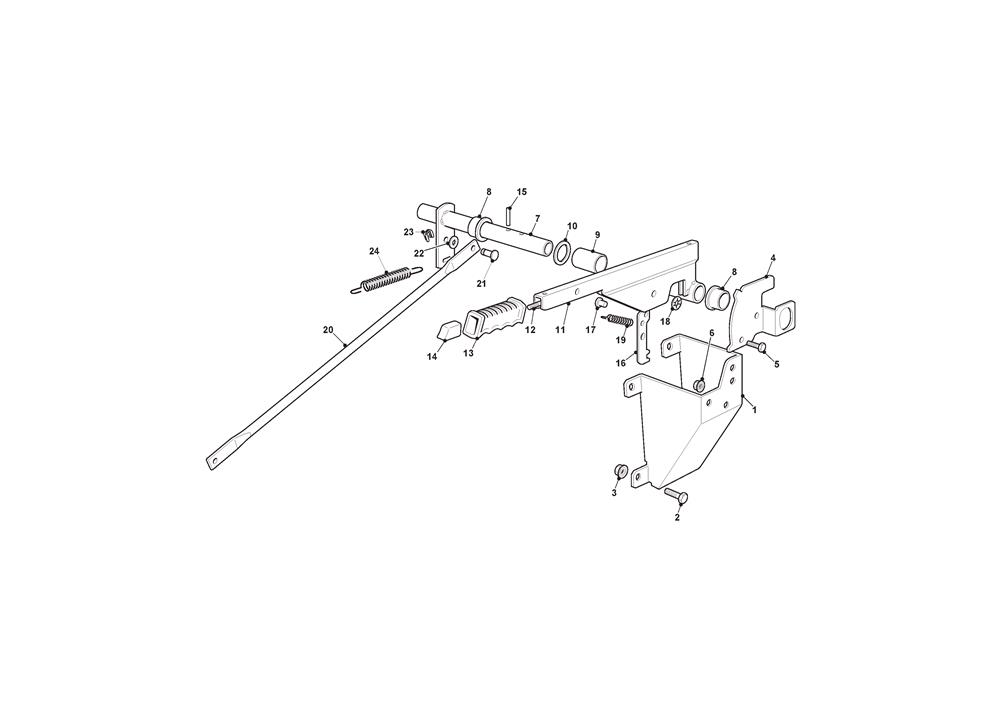

CUTTING PLATE LIFTING

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325785137/1SUPPORT PLATE£30.26 Add to
002112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
003112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
004325735521/0HEIGHT ADJUST PLATE [OBSOLETE]£34.35 Add to
005112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
006112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
007382000551/0LIFTING AXLE£24.41 Add to
008122034523/0BUSH£2.06 Add to
009125160025/1SPACER£6.55 Add to
010322672153/0ANTI-FRICTION WASHER 20.2 x 30 x 0.8£2.06 Add to
011382318241/1CUTTING DECK LIFTING LEVER£47.97 Add to
012125033002/1PUSH ROD£4.52 Add to
013125394504/1KNOB£2.87 Add to
014125605000/1BUTTON£2.74 Add to
015112620206/0PIN£1.79 Add to
016325470901/1DOG PLATE£11.36 Add to
017125510011/1PIN£2.06 Add to
018112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
019125430208/1SPRING£3.83 Add to
020325033077/0ROD£14.32 Add to
021125510053/2PIN£2.06 Add to
022325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
023112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
024125430218/1DECK LIFT SPRING£6.14 Add to
