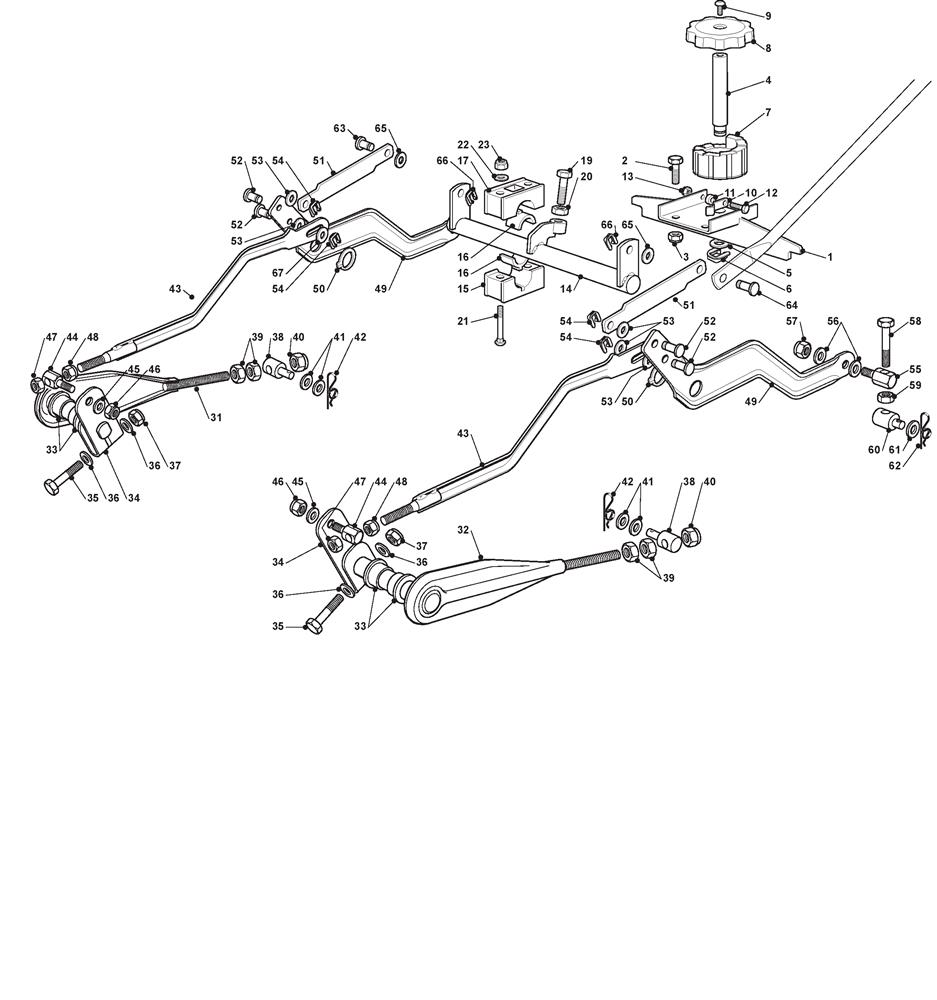

CUTTING PLATE LIFTING 1

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382785181/2SUPPORT BRACKET£67.05 Add to
003112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
004125520009/0CAM COLUMN£18.68 Add to
005322672151/0ANTI-FRICTION WASHER 12.2 x 30 x 0.8£1.91 Add to
006112436030/0PIN PLATE£1.91 Add to
007325060037/0CAM CUTTING POSITION£58.87 Add to
008325394530/0KNOB£10.50 Add to
009112760600/1SCREW M8 x 16 GEO321A£2.74 Add to
010325430267/0SPRING£6.95 Add to
011122170600/0SPACER£1.91 Add to
012112789195/0SCREW M5 x 20£2.06 Add to
013112154320/0SELF-LOCKING NUT M5£2.06 Add to
014382000615/0AXLE£68.42 Add to
015325785355/0LOWER BRACKET£2.78 Add to
016325034003/0SPACER£2.18 Add to
017325785354/0UPPER BRACKET£2.47 Add to
019125943005/0HEX-HEAD SCREW M8 x 70£7.63 Add to
020112295200/0HEXAGON NUT M10£1.79 Add to
021112815271/0SCREW M6 x 70£2.06 Add to
022112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
023112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
031382318155/0FRONT R/H FULCRUM LEVER£25.75 Add to
032382318157/0FRONT L/H FULCRUM LEVER£23.64 Add to
033125040605/0BUSH£2.06 Add to
034325318161/1LEVER£7.92 Add to
035112691700/0SCREW M8 x 55£1.91 Add to
036112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
037112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
038125510069/1PIN£7.51 Add to
039112295200/0HEXAGON NUT M10£1.79 Add to
040112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
041325670008/1ANTI-FRICTION WASHER 10.8 x 19 x 0.8£2.06 Add to
042125110800/0COTTER PIN D=10£1.91 Add to
043382000477/3CONNECTING ROD£17.80 Add to
044125510055/1PIN£3.69 Add to
045112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
046112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
047112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
048112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
049325318153/2REAR CUTTER DECK LEVER£12.40 Add to
050112609255/0CIRCLIP D=19£2.06 Add to
051325318223/0CONNECTING LIFT LEVER£7.10 Add to
052125510053/2PIN£2.06 Add to
053325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
054112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
055125510056/1PIN£4.78 Add to
056325670008/1ANTI-FRICTION WASHER 10.8 x 19 x 0.8£2.06 Add to
057112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
058112794985/0SCREW M10 x 120£3.69 Add to
059112295200/0HEXAGON NUT M10£1.79 Add to
060125510070/1PIN£5.46 Add to
061112523090/0WASHER M10 11 x 40 x 2.5£1.91 Add to
062125110800/0COTTER PIN D=10£1.91 Add to
063125510053/2PIN£2.06 Add to
064125510048/1FIXING PIN£2.32 Add to
065325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
066112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
067112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
