OPTIONALS ON REQUEST

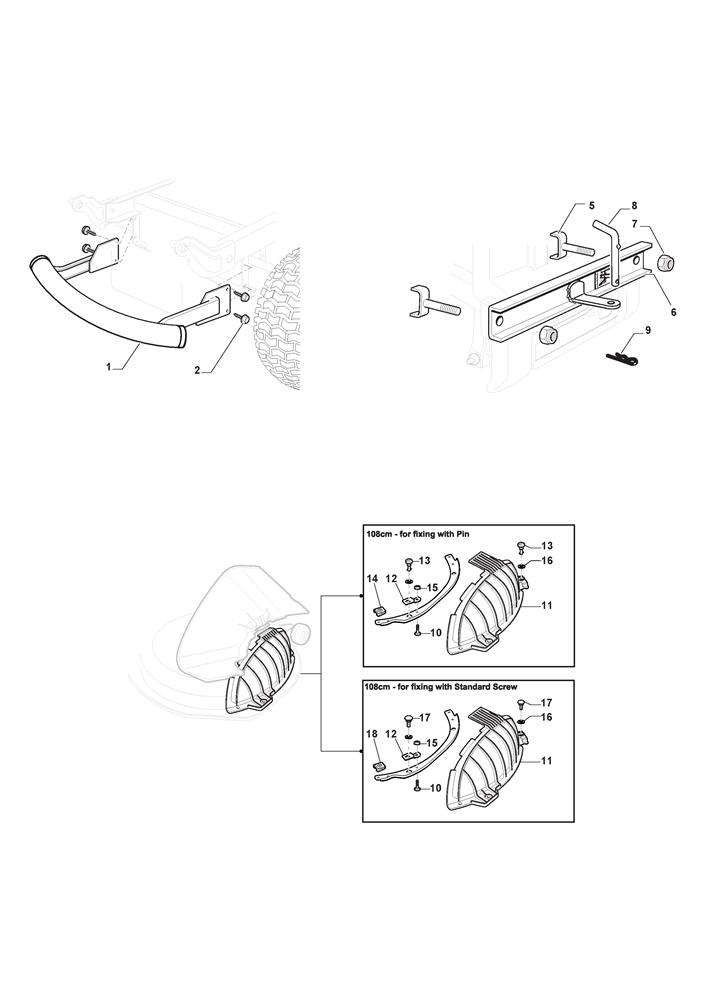

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382869038/0FRONT BUMPER BAR£37.33 Add to
002112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
005382650211/0REINFORCEMENT PIN£5.46 Add to
006382033111/0TOW BAR£32.06 Add to
007112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
008125510021/1HITCH PIN£11.78 Add to
009124487999/0R CLIP D=3£1.91 Add to
010112815206/0SCREW M6 x 12 UNI5732 8.8 WHITE ZINC£2.05 Add to
011325140107/0MULCHING PLUG SD108£12.46 Add to
012325785473/0SUPPORT PLATE£2.87 Add to
013125580040/0MULCH PLUG PIN£2.94 Add to
014118737221/0FIXING CLIP£7.04 Add to
015112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
016112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
018112437507/0RAPID FIXING PLATE M6£2.06 Add to
