BODYWORK

Parts list

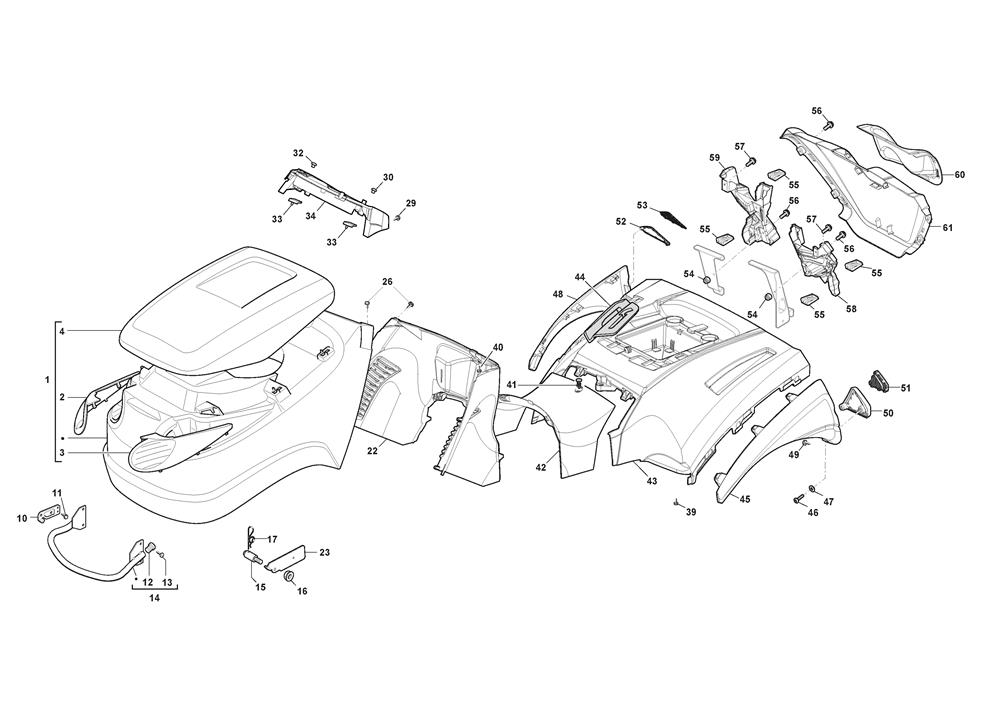

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382076970/1ENGINE HOOD [GREEN]£293.23 Add to
002325410891/0HEADLIGHTS R/H GRILL£9.28 Add to
003325410892/0HEADLIGHTS L/H GRILL£9.28 Add to
004325076940/0UPPER ENGINE HOOD [GREEN]£71.46 Add to
010325547109/2RIGHT/LEFT HOOKING PLATE£5.32 Add to
011112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
012118737860/0END CAP D=40£2.06 Add to
012325785449/0DASHBOARD SUPPORT [GREY]£76.59 Add to
013112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
014382869039/1FRONT BUMPER BAR£124.05 Add to
015125510068/0BONNET FULCRUM PIN£2.06 Add to
016112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
017124487998/0R CLIP D=2£2.06 Add to
022325785449/0DASHBOARD SUPPORT [GREY]£76.59 Add to
023325547109/2RIGHT/LEFT HOOKING PLATE£5.32 Add to
026112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
029112728440/0SELF-TAPPING SCREW 4.8 X 13£1.79 Add to
030325120233/0CAP (OBSOLETE)£4.28 Add to
032125120200/0CAP (OBSOLETE)£2.54 Add to
033125260000/0ANTI-VIBRATION RUBBER GROMMET£3.41 Add to
034325120269/0DASHBOARD [GREY] CRUISE CONTROL TX HE£43.89 Add to
039112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
040112735420/0FLANGED SCREW D=6 x 16£4.23 Add to
041125580020/2SPRING TENSIONED SCREW£7.23 Add to
042325110509/0CENTRAL COVER [GREY]£46.06 Add to
043325109788/0WHEELS COVER [GREEN]£114.74 Add to
044325207184/1CUP HOLDER [BLACK]£24.95 Add to
045325207267/0L/H REAR SIDE COVER [GREY]£21.26 Add to
046112728689/0SCREW KA50 x 12£1.79 Add to
047112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
048325207266/0R/H REAR SIDE COVER [GREY]£21.26 Add to
049112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
050325596502/0L/H REAR REFLECTOR SUPPORT£4.37 Add to
051325069101/0L/H REAR REFLECTOR [RED]£3.83 Add to
052325596501/0R/H REAR REFLECTOR SUPPORT£4.37 Add to
053325069100/0R/H REAR REFLECTOR [RED]£3.83 Add to
054112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
055112437507/0RAPID FIXING PLATE M6£2.06 Add to
0569893-0616-16SCREW M6 x 16£2.47 Add to
057112735420/0FLANGED SCREW D=6 x 16£4.23 Add to
058325785526/0L/H REAR COVER SUPPORT [BLACK]£13.77 Add to
060325207268/0REAR FUEL TANK COVER [BLACK]£15.41 Add to
061325110489/0REAR COVER [GREEN] MTR SD£63.91 Add to
