ENGINE - B&S

Parts list

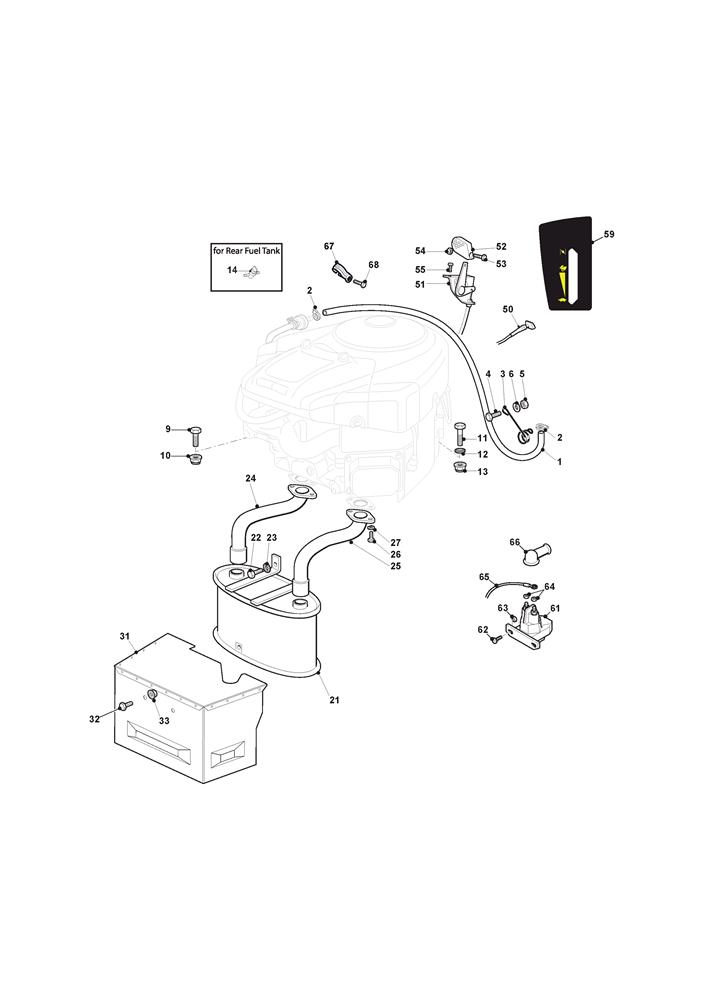

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325869016/1CONNECTING TUBE£7.10 Add to
002118375051/1CABLE CLAMP B&S [GREEN]£1.91 Add to
004112788910/0HEX-HEAD SCREW M5 x 16£2.06 Add to
005112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
006112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
009112691100/0HEX-HEAD SCREW M8 x 35£2.81 Add to
010112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
011112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
012112540260/0INNER TOOTHED WASHER M8£2.06 Add to
013112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
014118566119/0FUEL TAP£15.89 Add to
021182750009/0MUFFLER£163.80 Add to
022112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
023112540260/0INNER TOOTHED WASHER M8£2.06 Add to
024118738236/0RIGHT EXHAUST PIPE£54.79 Add to
025118738237/0LEFT EXHAUST PIPE£54.79 Add to
026112735530/0SCREW 5/16" x 3/4"£1.91 Add to
027112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
031382598043/4TWIN CYLINDER MUFFLER GUARD TC HE BZ£84.22 Add to
032112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
033112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
050125090001/2CHOKE CONTROL CABLE£19.62 Add to
051182000218/0THROTTLE CABLE£26.18 Add to
052325592000/1LEVER KNOB£2.32 Add to
053112726388/0CROSS-HEAD SCREW M4X12£2.06 Add to
054112290800/0HEXAGON NUT M4 UNI 5588 ACC.6S£2.06 Add to
055125943012/0FLANGED SCREW M4 x 10 WZ£2.06 Add to
059114360716/1THROTTLE DECAL£6.55 Add to
061118736112/0SOLENOID£39.80 Add to
062112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
063112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
064112361005/0HEXAGON NUT 1/4" UNC£2.71 Add to
065125065017/0MOTOR/SOLENOID CONNECT CABLE£9.82 Add to
066118564861/2RED RUBBER TERMINAL COVER£7.10 Add to
067322192156/0CABLE HOLDER CLAMP£2.06 Add to
068112735594/0HEX-HEAD SCREW M6 x 30£2.06 Add to
