GUARDS

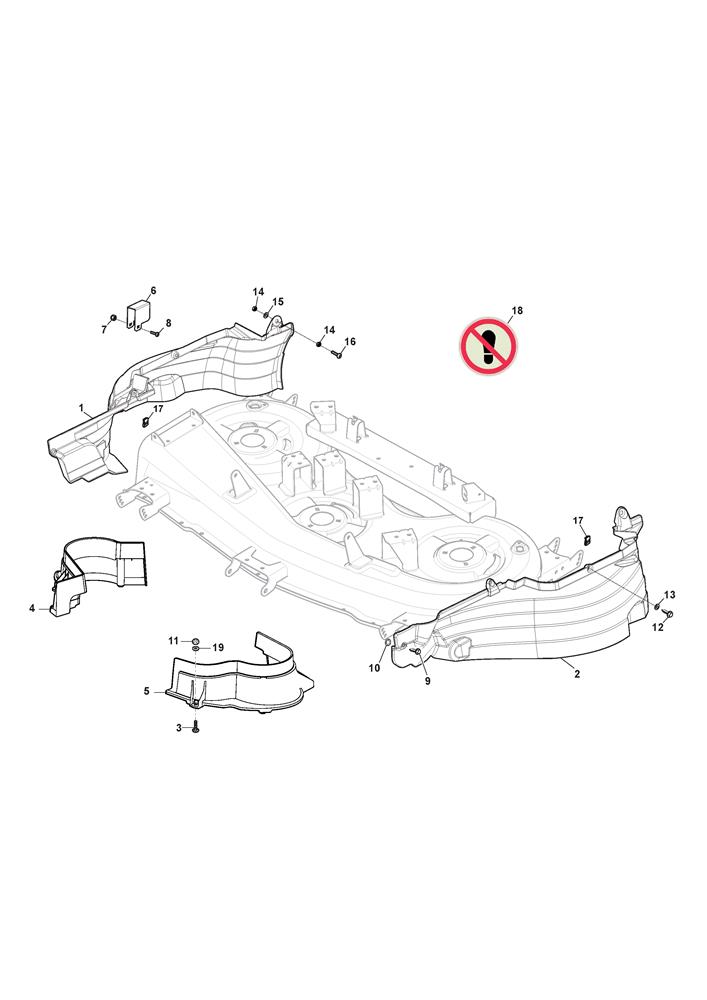

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325060189/1R/H EXTERNAL BELT COVER£150.18 Add to
002325060190/1L/H EXTERNAL BELT COVER£150.18 Add to
003112815210/0SCREW M6 x 20£2.06 Add to
004325060181/1R/H INTERNAL BELT COVER£27.27 Add to
005325060182/1L/H INTERNAL BELT COVER FROM SN 431074£26.18 Add to
006325774267/0BRACKET£7.57 Add to
007112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
008112815255/0CUP SQUARE BOLT M6 x 20£1.79 Add to
009125943014/0FLANGED SCREW CARTER MOA FIXING£9.03 Add to
010112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
011112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
012112791213/1SCREW M6 X 18£1.74 Add to
013325160039/0SPACER£2.06 Add to
014112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
015112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
016112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
0171134-4176-01CLIP£5.19 Add to
018114368431/0SAFETY DECAL-DO NOT STEP£6.42 Add to
019112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
