SEAT & STEERING WHEEL

Parts list

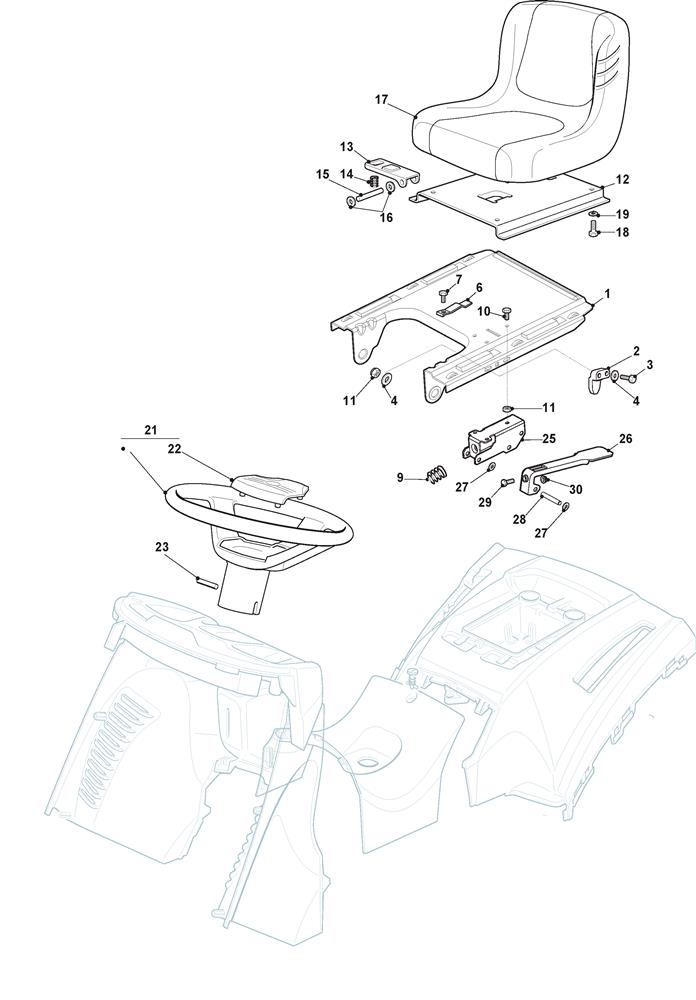

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382785301/0FIXED SEAT SUPPORT£45.26 Add to
002325060049/0SEAT SWITCH CAM£2.74 Add to
003112815050/0SCREW M5 x 25£2.06 Add to
004112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
006125430203/1SPRING£3.69 Add to
007112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
009125430291/0OPC SPRING£12.55 Add to
010112735661/0SCREW TCB TORX M6 x 10£2.06 Add to
011112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
012325785147/2MOVING SEAT SUPPORT£38.26 Add to
013325318109/1STOP LEVER£4.91 Add to
014125430202/1SPRING£2.06 Add to
015125510000/0PIN£1.79 Add to
016112604897/0STARLOCK WASHER D=5£2.06 Add to
017125722468/0SEAT [BLACK]£320.51 Add to
018112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
019112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
021125961217/1STEERING WHEEL [BLACK]£93.73 Add to
022325580500/0CENTRAL STEERING WHEEL CAP£6.42 Add to
023112620299/0SPIROL FLEXIBLE PIN 6 x 45£1.91 Add to
025325774575/0FULCRUM CLAMP£9.41 Add to
026382318315/0SPRING LEVER£10.91 Add to
027112604896/0STARLOCK WASHER D=6£2.06 Add to
028122517866/0PIN£2.06 Add to
029112735661/0SCREW TCB TORX M6 x 10£2.06 Add to
030112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
