TANK

Parts list

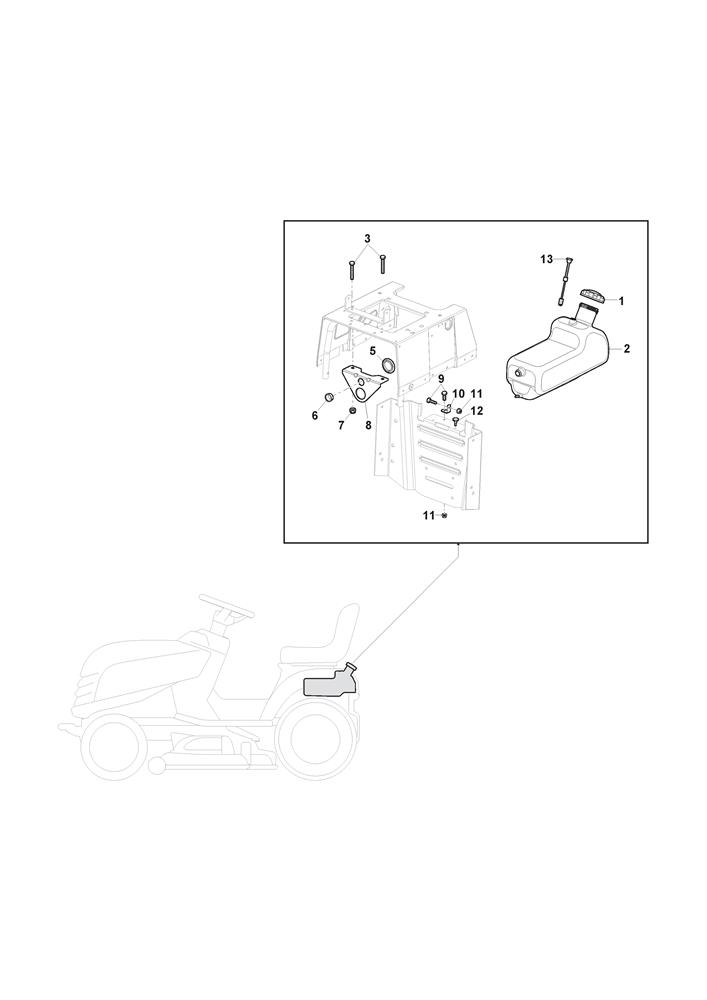

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001137793050/0FUEL TANK CAP£44.00 Add to
002325735129/0FUEL TANK [15 LITRES]£110.66 Add to
003112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
005325260012/0RUBBER GROMMET£6.95 Add to
006325038022/0BUSH£2.06 Add to
007112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
008325774685/0SUPPORT BRACKET£10.09 Add to
009112791213/1SCREW M6 X 18£1.74 Add to
010325547427/0BRACKET£3.83 Add to
011112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
012127275000/0RUBBER GROMMET FOR BRAKE PEDAL£3.55 Add to
013125290002/0FUEL LEVEL INDICATOR£102.48 Add to
